10.9 FITTING A NEW VERTICAL VICE CYLINDER

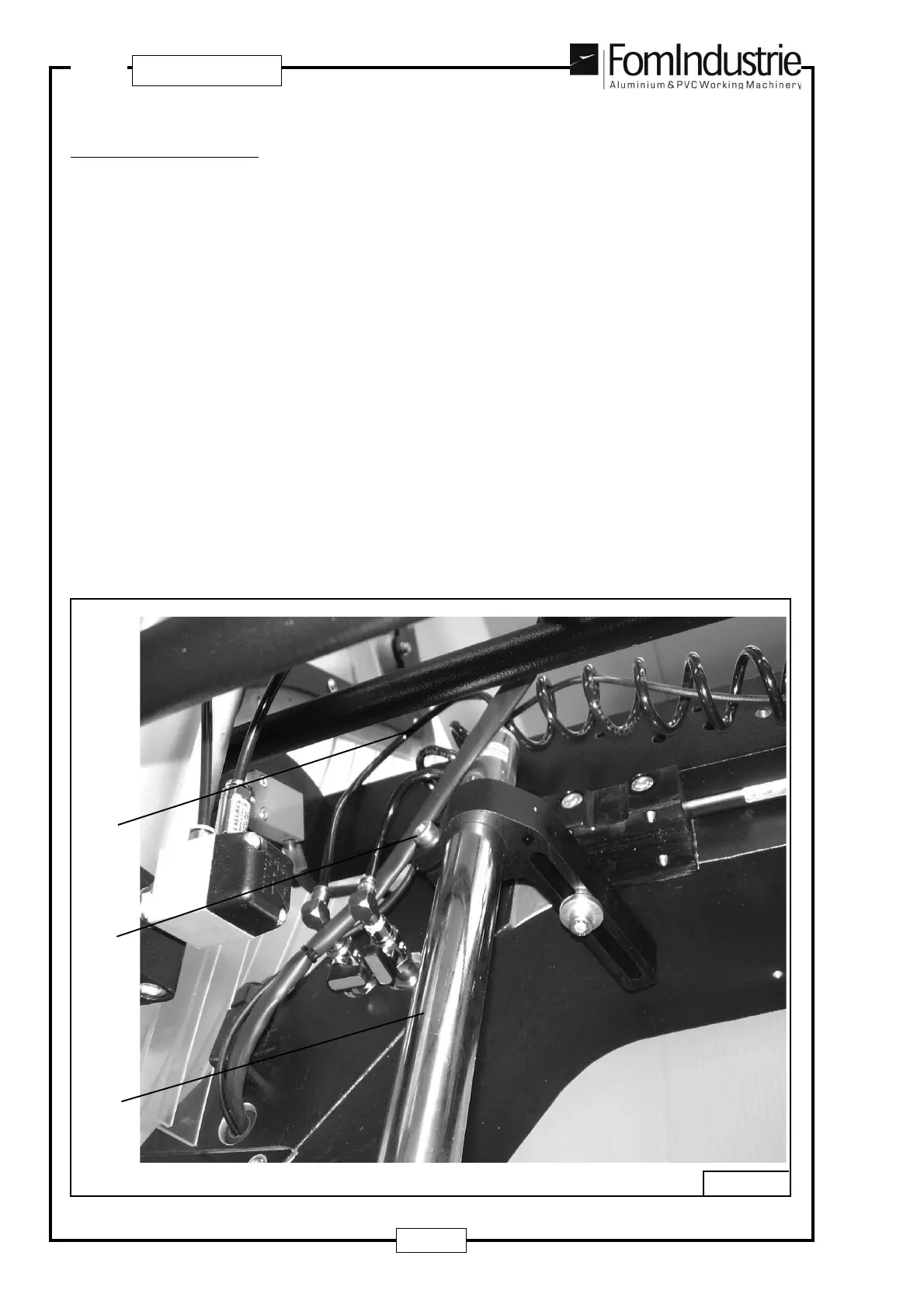

Supplementary vertical vice (Fig. 10-16)
1) Turn the master switch to “0” and secure it with a padlock, then turn the main switch (400 V - three-phase)
to “0”.
2) Remove the PVC pad.
3) Undo screw “A” and take out cylinder “B”.
4) Disconnect tube “C”
5) Replace the cylinder in its housing and tighten screw “A”.
6) Refit the PVC pad (or fit a new one if necessary).
7) Connect up tube “C”.
8) Release the pneumatic master switch and turn it to “I” then turn the main switch to “I”.
9) Carry out a few test runs.
10-16
C
A
B
