3.1 CUTTING DIAGRAM

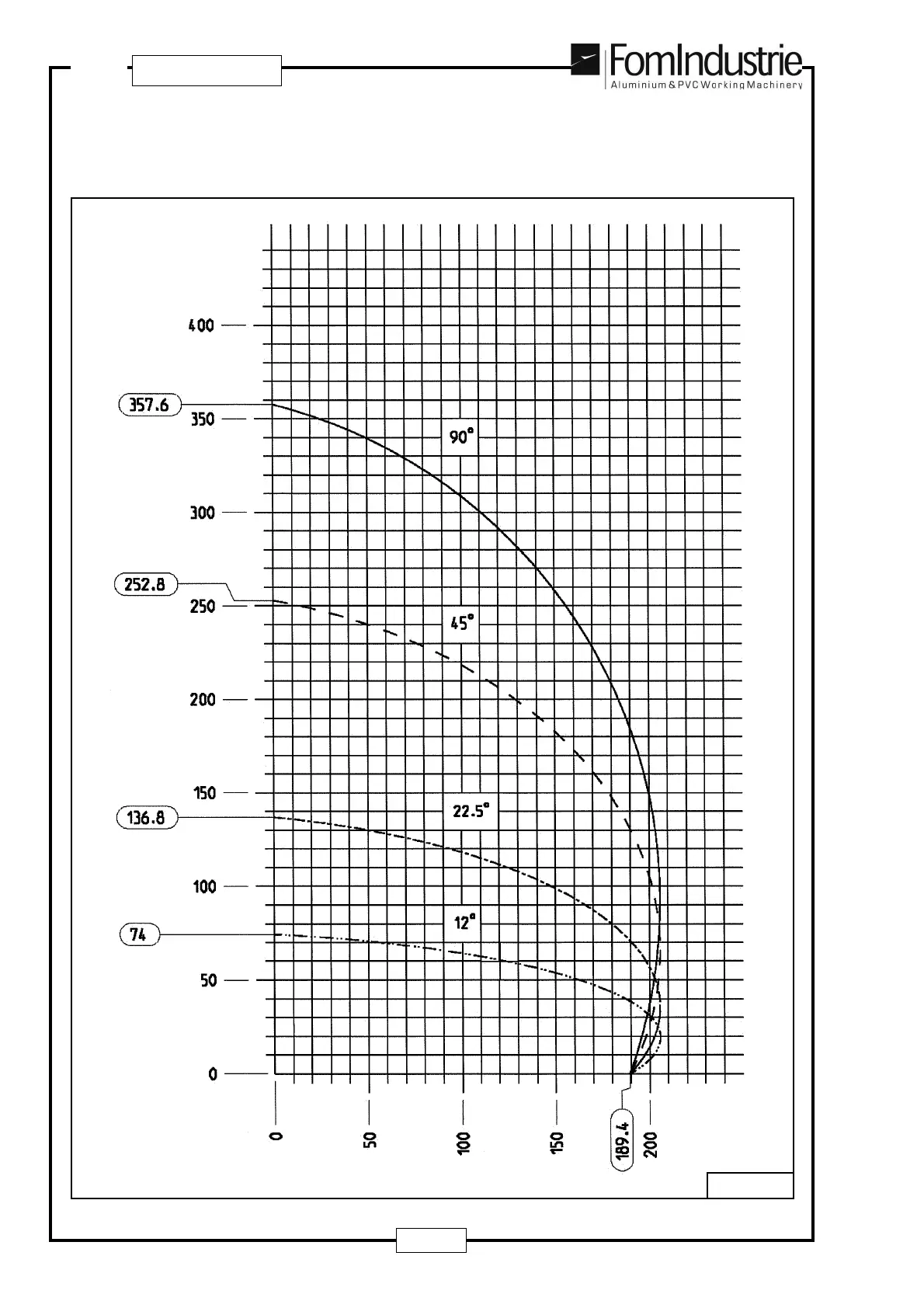

Cutting diagram - BLITZ 55 (FIG. 03-02)
The cutting diagram with the blade Ø 550 mm. illustrates the machine cutting capacity with the blade set at 90°,
with the blade set at 45° internal/external, with the blade set at 22,5° external and with the disc set at 12° external.
