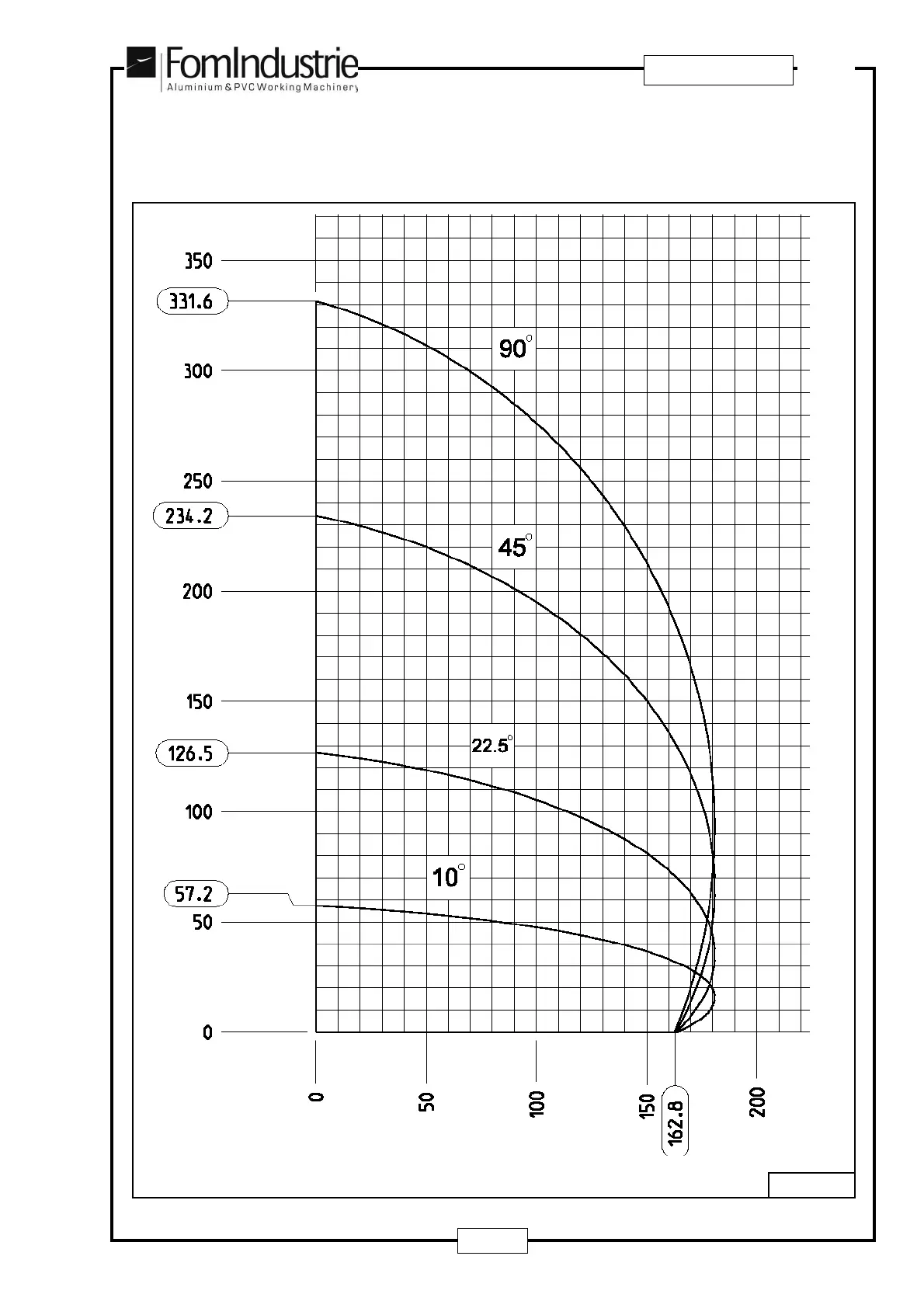

Cutting diagram - BLITZ 50 (FIG. 03-03)
The cutting diagram with the blade Ø 500 mm. illustrates the machine cutting capacity with the blade set at 90°,
with the blade set at 45° internal/external, with the blade set at 22,5° external and with the disc set at 10° external.
