FOM INDUSTRIE BLITZ - Page 16

10
G BG B
G BG B
G B
BLITZ
03-04

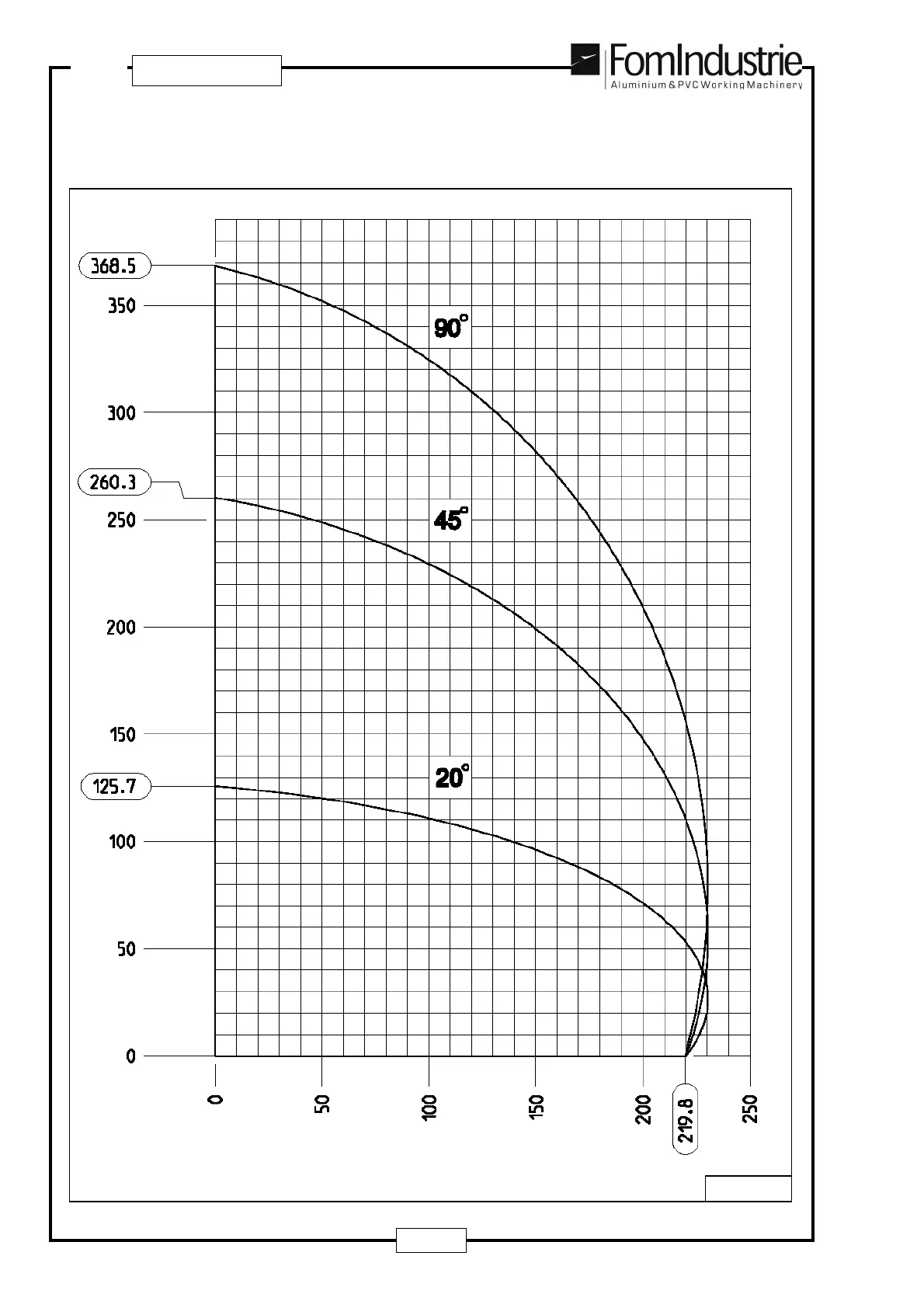

Cutting diagram - BLITZ 60L (FIG. 03-04)
The cutting diagram with the blade Ø 600 mm. illustrates the machine cutting capacity with the blade set
at 90°,
with the blade set at 45° internal/external and with the disc set at 20° external.
