9.14 CUTS WITH THE STEP-BY-STEP KIT (OPTIONAL)
To make cuts using the (OPTIONAL) STEP-BY-STEP mode a supplementary profile support table must be
used on the fixed head work table.

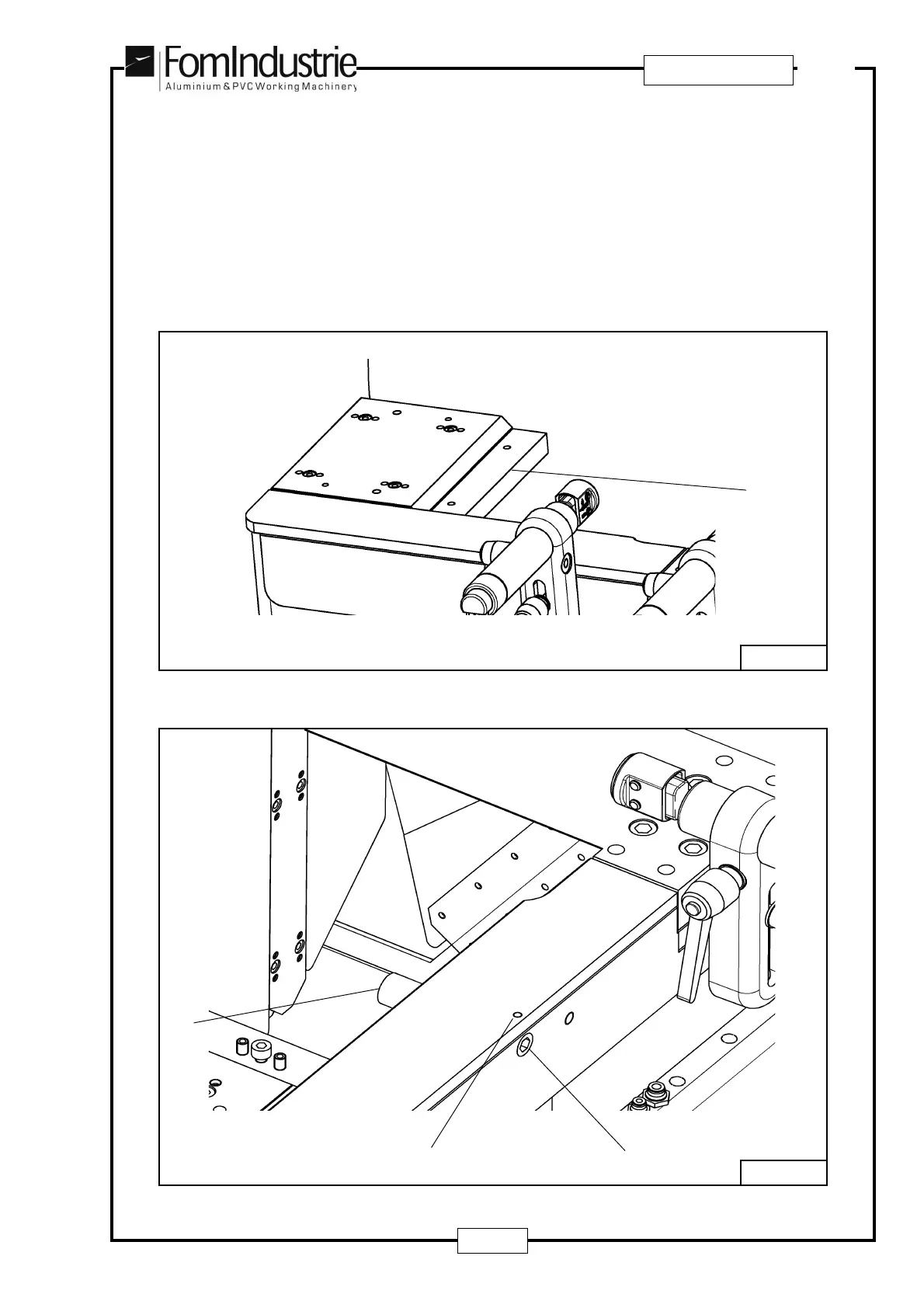

First of all, support ‘A’ - Fig. 09-29 must be fitted using the 2 screws below the support.
Then, fit pin ‘B’ - Fig. 09-30 (push-fit): once the pin has been height adjusted using cam ‘C’ - Fig. 09-30, secure
the pin in place by tightening grub screw ‘D’ - Fig. 09-30.
09-29
A
B
D
C
09-30
