9.4 MINIMUM CUT
The minimum cut between the two heads varies depending on how the actual heads are inclined.

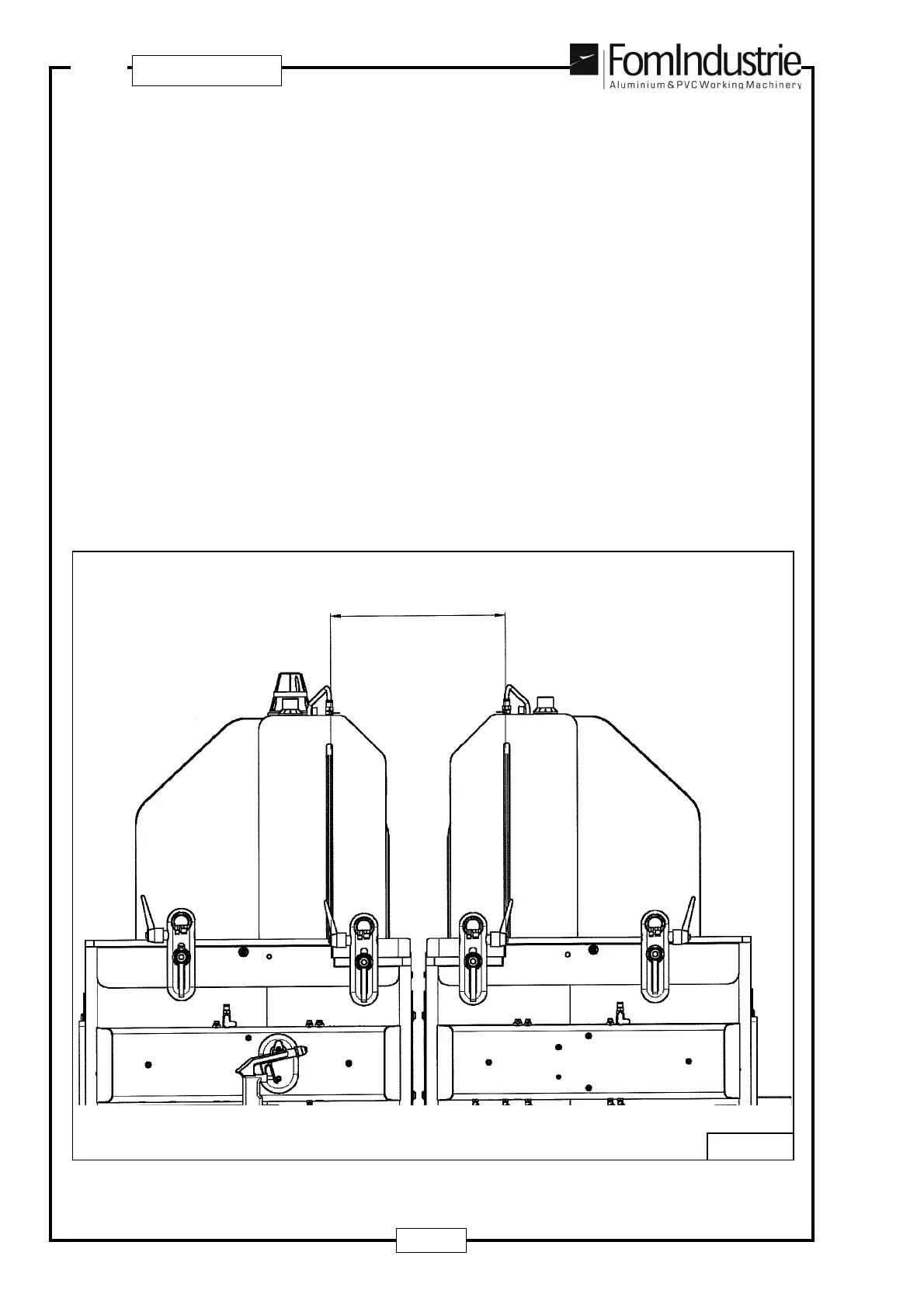

Fig. 09-12 / 09-13 / 09-14 / 09-15 / 09-16 show the basic situations in which the two heads can be arranged
are shown.
NOTE 1:
The machines are equipped with safety devices that prevent INCORRECT MANOEUVRES to make sure that
below the minimum cutting measurements shown in the figures the heads cannot tilt and collide with each other.
NOTE 2:
Below 685 mm (Fig. 09-15) it is only possible to tilt to 45° internally THE FIXED HEAD as shown in Fig. 09-
16 to a minimum cutting measurement of 492 mm.
NOTE 3:
When in contact, the safety hoods around the cutting area move along the machine axis to allow the minimum
cutting conditions and return to their position by means of gas springs.
09-12
90°
90°
350 mm
