FOM INDUSTRIE BLITZ - Semi-Automatic Cutting (Step-by-Step Cycle)

36
G BG B
G BG B
G B
BLITZ

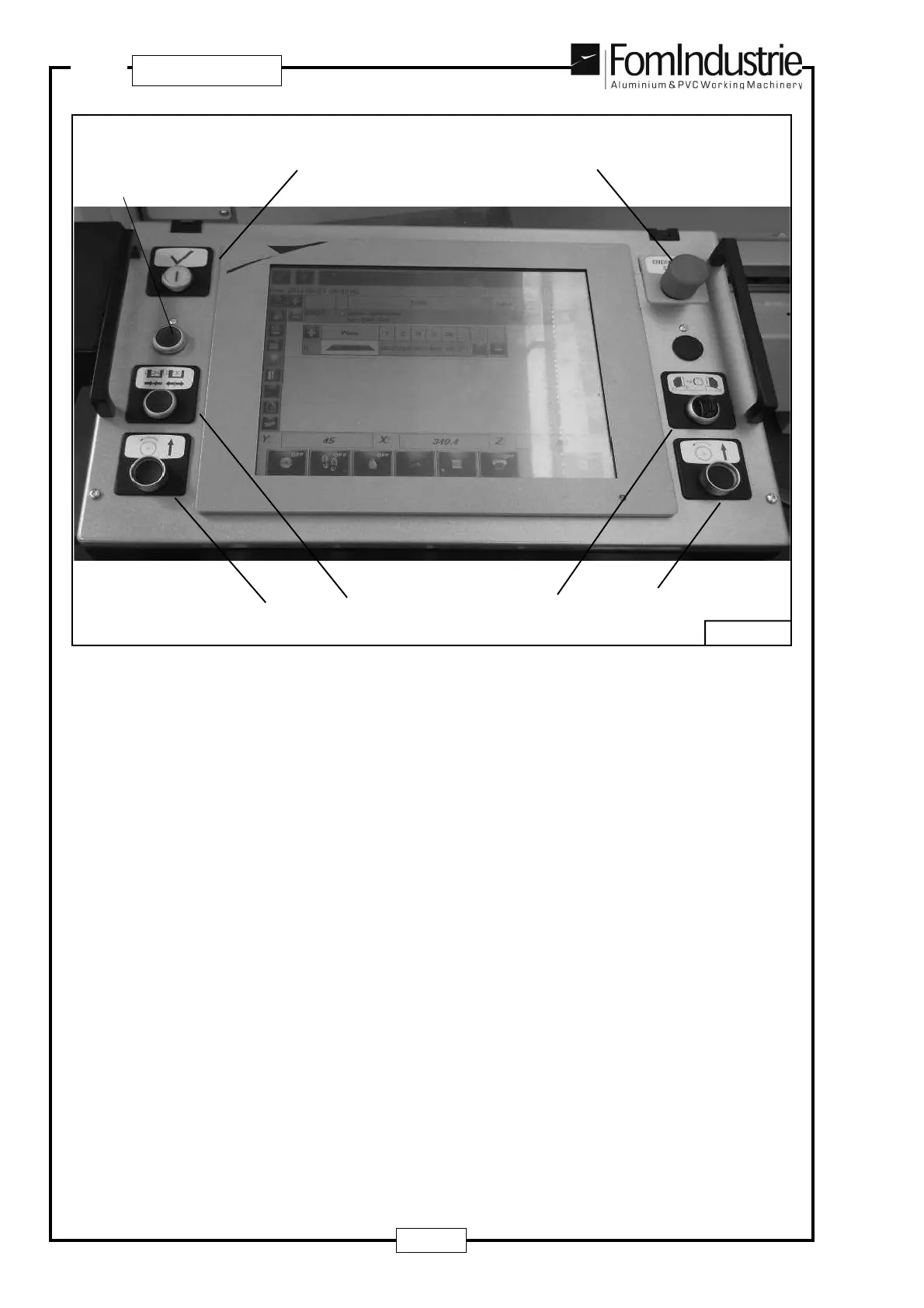

CONTROL PANEL (Fig. 06-02)
1 - Button to enable machining
2 - Vices open/close button
3 - Bi-manual cutting buttons
4 - Selector giving consent to allow mobile head positioning within the ‘SAFETY ZONE’ (mobile head
approaching fixed head) and/or to tilt one or both heads
5 - EMERGENCY-STOP button
6 - Photocell reset button for optional ‘step-by-step’ program (optional)
N.B: Buttons 3 also provide a bi-manual synchronous command when continuously held down to execute
the (optional) ‘step-by-step’ program
