If the direction of tool rotation is not the same as that indicated by the arrow on the machine, two of the three
poles of the electrical power supply must be inverted.

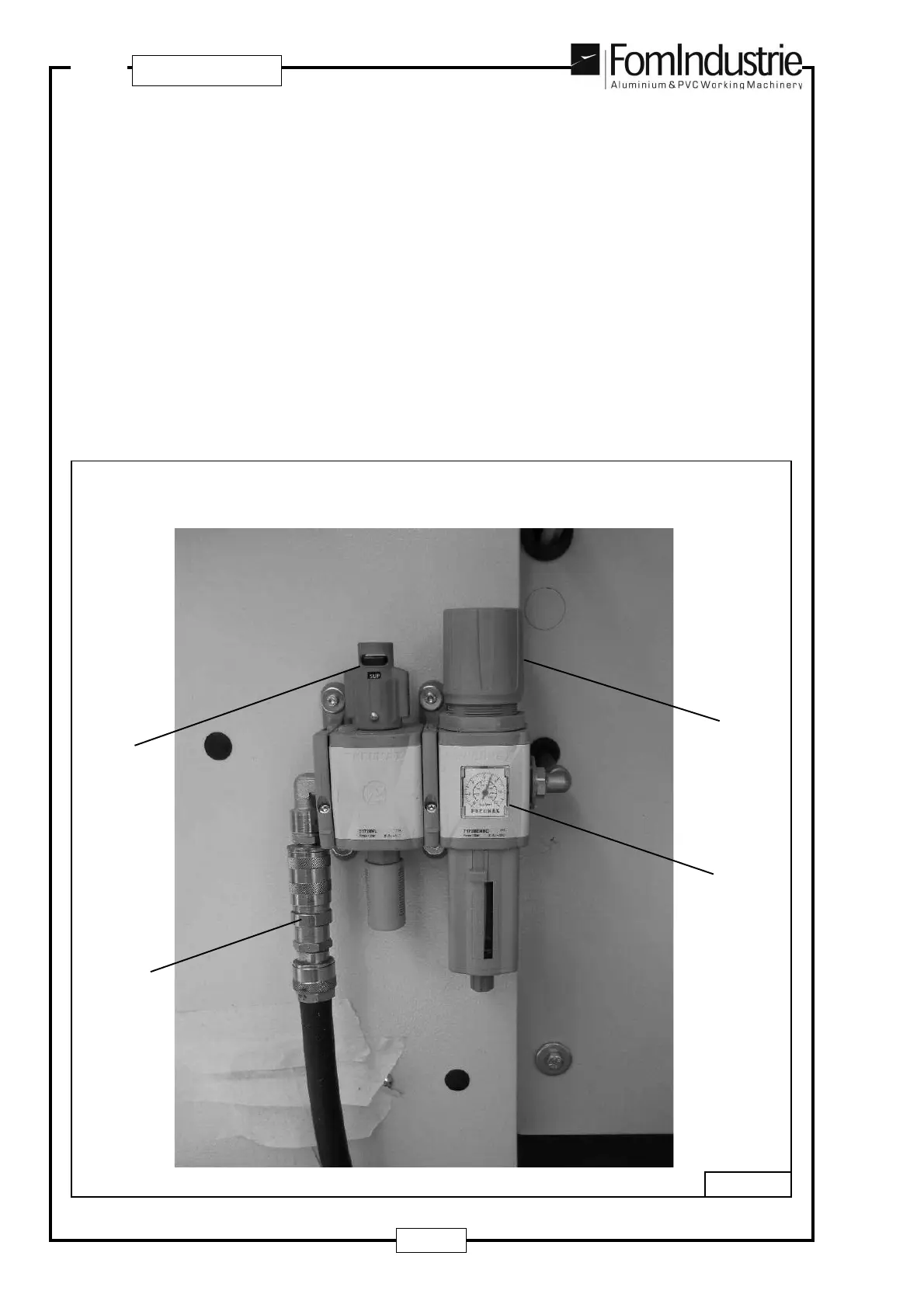

Insert the incoming air hose (with 12 mm. internal diameter) into the input filter connection “1” and fix it in place
with a metal clip; turn the pneumatic master switch “A1” to position “I” and check on gauge “2”that the pressure
is 7 bar; If it is not, adjust using knob “3”.
This adjustment is necessary because at pressure values lower than 5 BAR a pressure switch is triggered that
stops the machine from working.
N.B. If any pneumatic connections are made other than those provided for by the constructor, an easy
and intuitive type of quick connector must still be used.
