10.12FITTING A NEW SWARF CONVEYOR BELT
- Turn the master switch to “0” and secure it with a padlock, then turn the main switch (400 V - three-phase)
to “0”.
- Remove the chips-protection brush “A” next to the fixed head using the relative fixing screws “A1” (Fig.
10-19)
- Remove the 4/6 top metal panels “B” (2/3 on each side) by undoing the relative fixing screws “B1” (Fig.
10-20).
- Undo the fixing screws on plates ‘C1’ and ‘C2’ (Fig. 10-20).
- Remove the conveyor belt from the base of the machine by undoing the fixing screws “D1” for the brackets
“D” (1 on each side) (Fig. 10-21): the nuts “D2” on the screw adjusters are loosened in order to tighten
screw “D1” on the belt leaving enough space to remove it.
- Open safety guard “E” around the motor using the 4 fixing screws “E1” so that the cable can be disconnected
from the motor (Fig. 10-22).

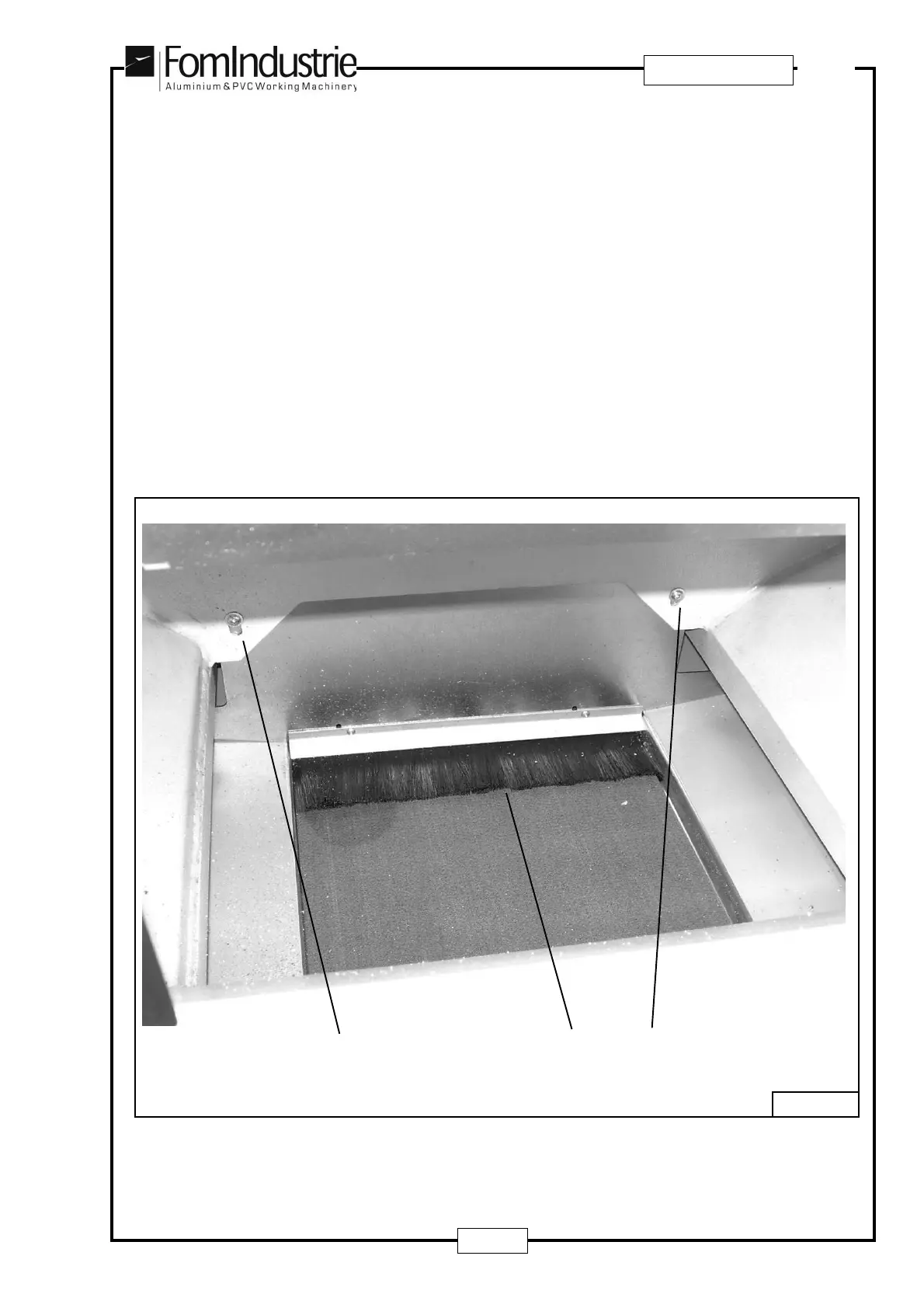

10-19
A
A1
A1
