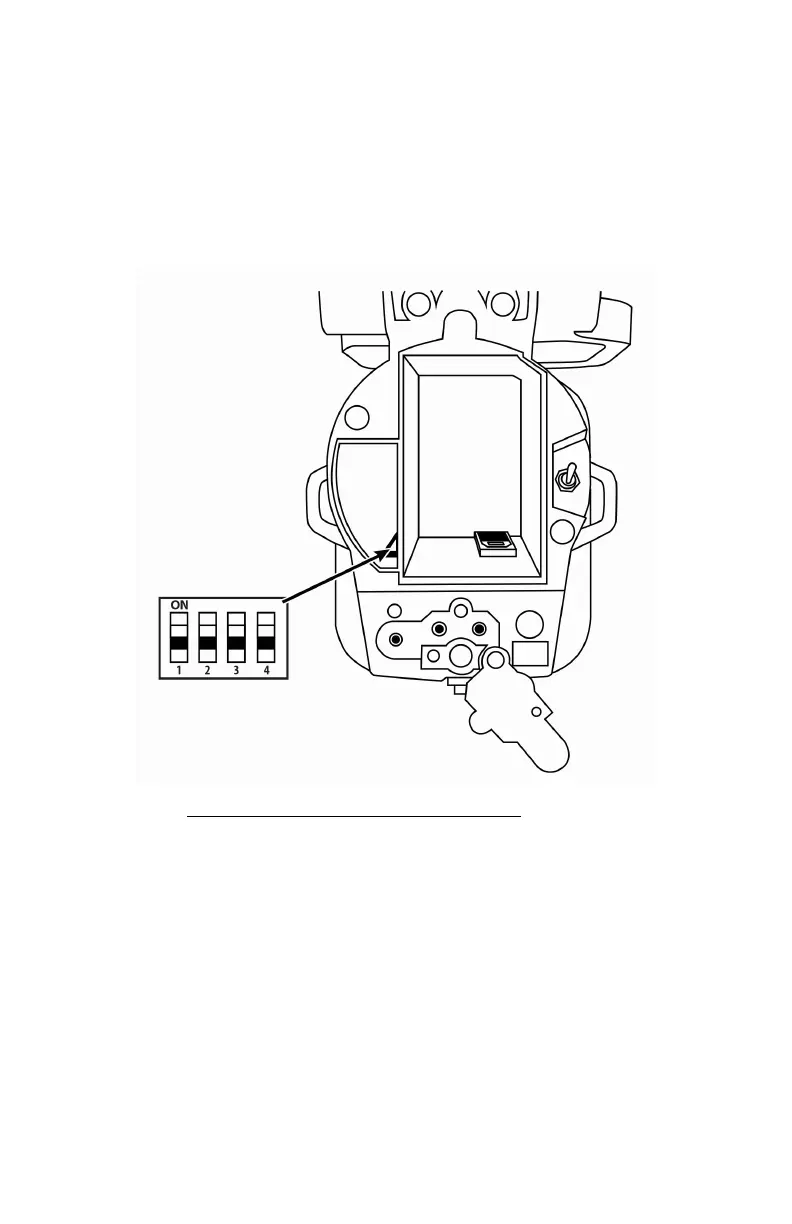

two positions are referred to as “on” and “off”. The “on” position is
selected by moving the switch to the right. The “off” position is selected
by moving the switch to the left. Use the tip of a pen or pencil to
change the position of the switches. The chart on the next page shows
the possible switch positions for the various channels.
Channel SW1 SW2 SW3
0 OFF OFF OFF
1 ON OFF OFF
2 OFF ON OFF
3 ON ON OFF
4 OFF OFF ON
5 ON OFF ON
6 OFF ON ON
7 ON ON ON
