Franke F3D3P Service Manual

F3D3 Series Service Manual Parts List & Component Diagrams / Section 1.5
Questions? Call Franke Technical Support Group For Your Area. Page 5 Copyright  2011 Franke, Inc. All rights reserved.
28
1 ea.
Sleeve, Product Sensor
19000383
19000383
29
1 ea.
Heat Wire, 1760 mm, 3 watts/ft.
19003973
19003975

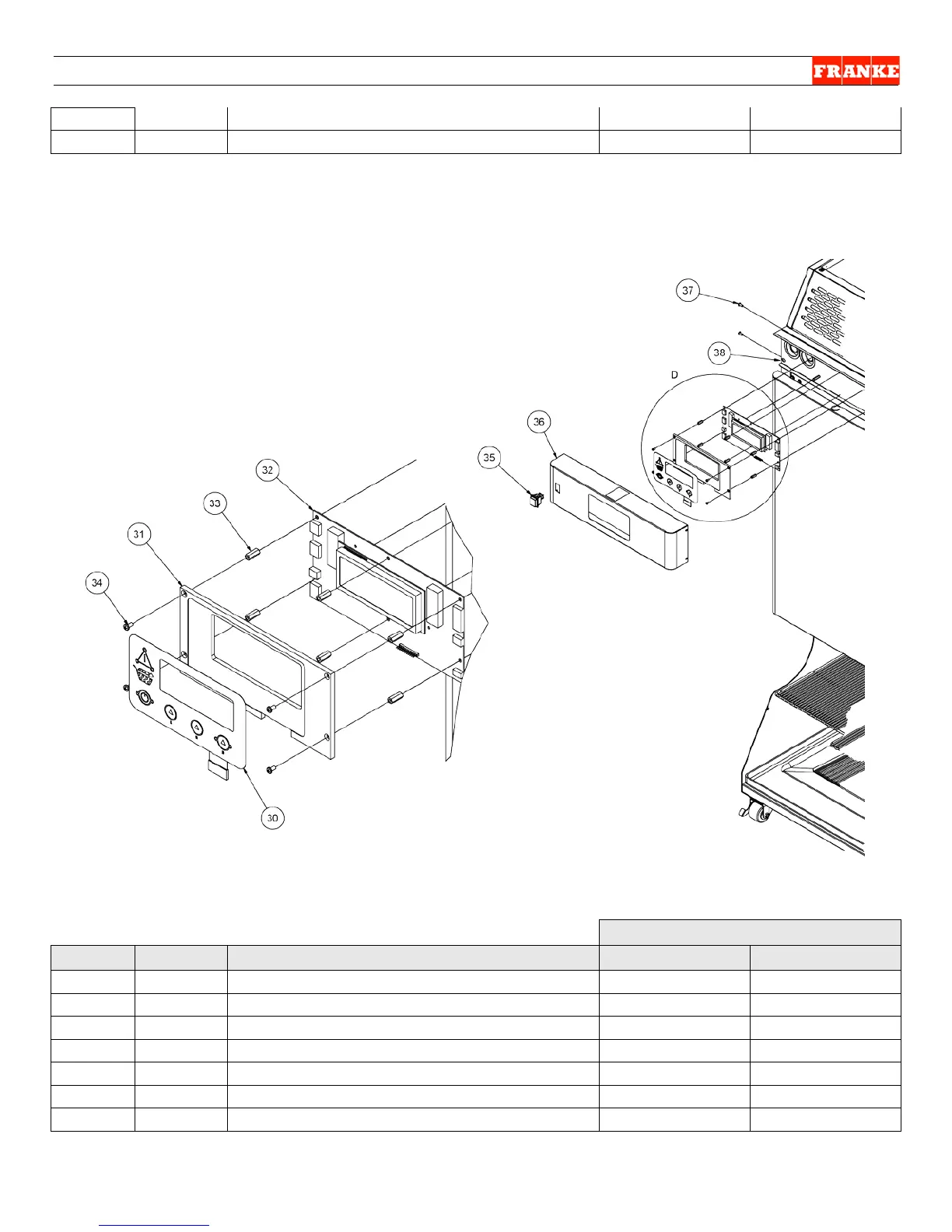

Control Panel & Master Board (All F3D3 Versions)
Part Numbers
Key No.
Quantity
Description
120-Volt/60 Hz
230-Volt/50 Hz
30
1 ea.
Touch Pad Overlay
19003900 19003900
31
1 ea.
Backing Plate, Touch Pad Overlay
19003901
19003901
32
1 ea.
PCB Controller (Master Control Board)
19003899
19003899
33
6 ea.
Standoff, Overlay Mounting (M4 x 18)
19002776
19002776
34
4 ea.
Screw, Overlay Mounting (M4 x 8)
19002745
19002745
35
1 ea.
Rocker Switch, Main Power-ON/OFF
385.151
385.151
36
1 ea.
Front Bezel, Control Panel, w/studs
19004012
19004012
