Franke F3D3P Service Manual

F3D3 Series Service Manual Parts Replacement / Section 2.5
Questions? Call Franke Technical Support Group For Your Area. Copyright  2012 Franke, Inc. All rights reserved.
2.5 Drum Rotor Motor Replacement
[See Section 1.5 for Part Number]
1) Roll unit out to allow access to rear service panel.
2) Disconnect power at outlet. [Pull plug.]
3) Remove screws securing rear service access panel. Lift
panel up and off.
4) NOTE: The Drum Rotor Motor is the upper motor
mounted on white insulating material. Disconnect both
motor harness power connections.
5) Using a 4 mm [5/32”] Allen Wrench, remove the four
motor mounting screws.
6) Remove motor by pulling straight out. Motor Rotor Block
will remain in place.
7) Install new Drum Rotor Motor [P/N 19002708]. Ensure
motor gear case drive shaft engages rectangular slot in
plastic Rotor Drive Shaft.
8) Replace and tighten the four motor mounting screws
using your 4 mm [5/32”] Allen Wrench.
9) Reattach power leads to motor: [Red to positive, Black to
negative]
10) Reconnect unit to power supply.
Test for proper motor operation by:
11) Turning ON main power switch & pressing LANE-
POWER touch pad on front control overlay.
12) If word: Ready is in display and basket graphic lights are
on, position empty fry basket in fill chute and press
against basket bumper switch to initiate fries loading.
13) If unit dispenses fries [if present] or if rotors turn
smoothly in an attempt to dispense fries, the motor is
working properly.
14) Re-hang and secure rear service access panel and
return Dispenser to normal operating position.

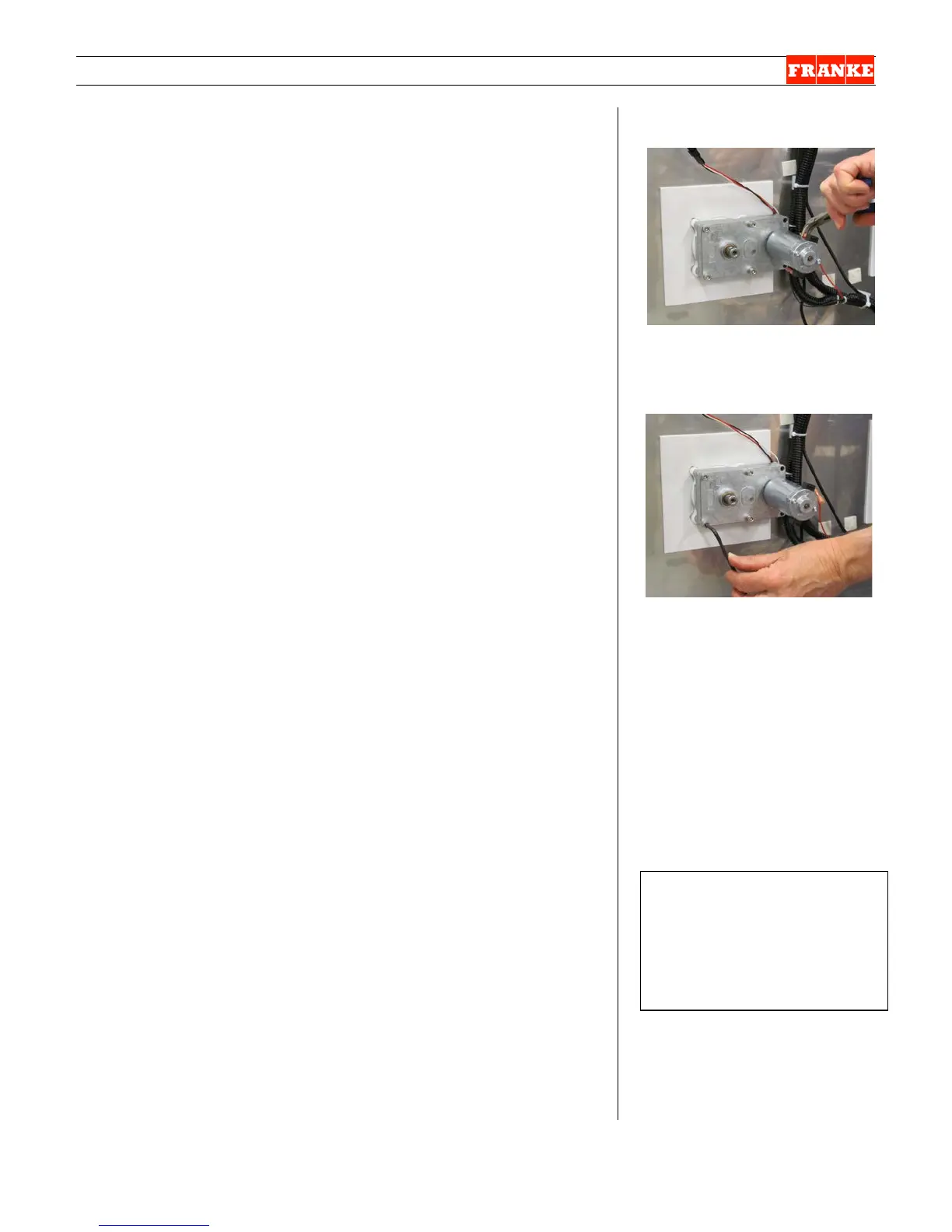

[Photo 1]
Disconnect red & black motor
power leads.
[Photo 2]
Remove the four motor mounting
screws.
Rev. 1 6/2012

Tools Required:
 Medium Phillips
screwdriver
 4 mm [5/32”] Allen/hex
Wrench
 Needle nose pliers

Franke F3D3P Specifications

General

Brand	Franke
Model	F3D3P
Category	Dispenser
Language	English
