Franke F3D3P Service Manual

F3D3 Series Service Manual Parts List & Component Diagrams / Section 1.5
Questions? Call Franke Technical Support Group For Your Area. Page 6 Copyright  2011 Franke, Inc. All rights reserved.
37
4 ea.
Screws, Front Bezel Mounting
19003058
19003058
38
1 ea.
Heat Wire, 2860 mm, 3 watts/ft.
19003972
19003974

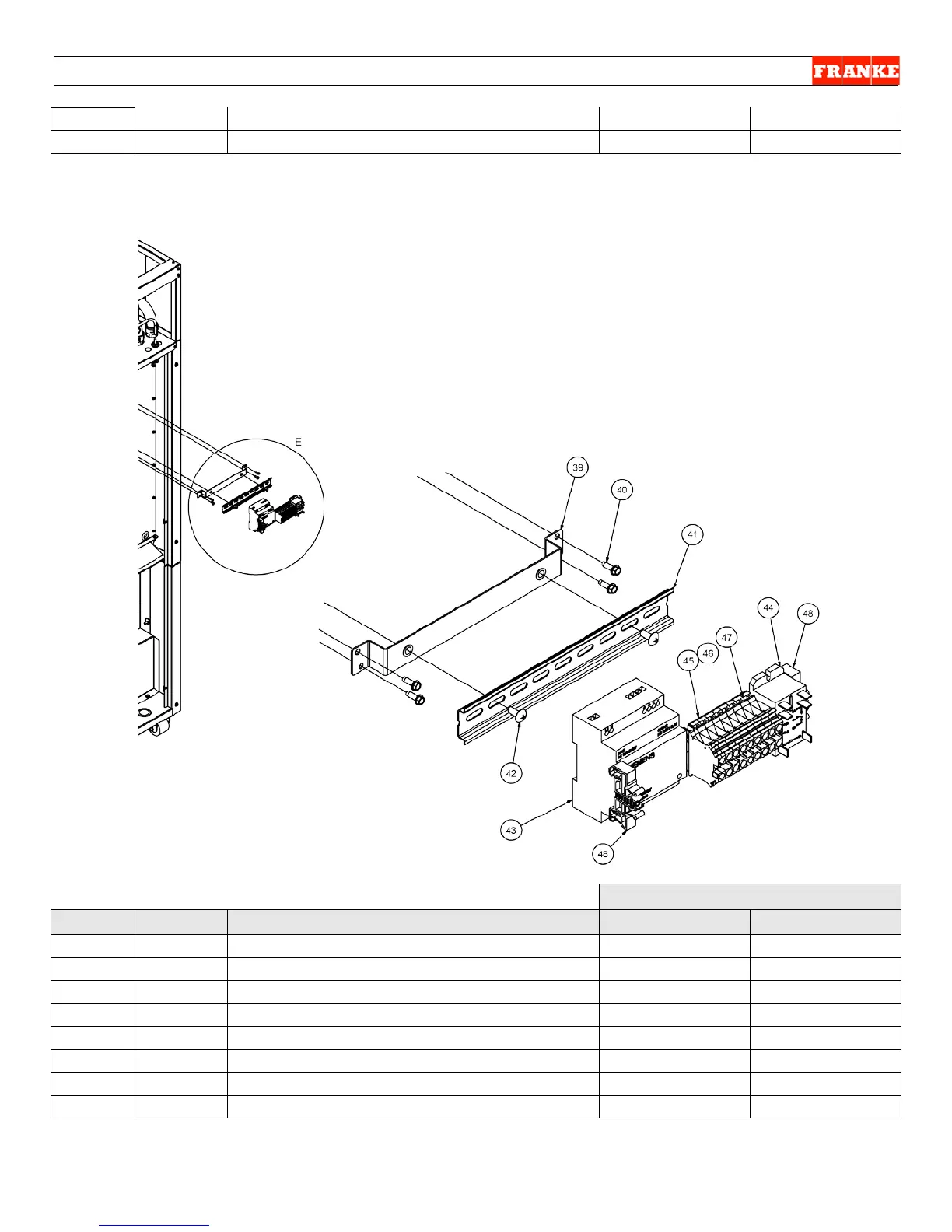

DIN Rail & Mounted Electric Components (Electrical Components All F3D3 Versions)
Part Numbers
Key No.
Quantity
Description
120-Volt/60 Hz
230-Volt/50 Hz
39
1 ea.
DIN Rail Mounting Bracket
17017004
17017004
40
4 ea.
Screw, DIN Rail Mounting Bracket
3118101
3118101
41
1 ea.
DIN Rail (35 x 230 mm)
19000366
19000366
42
2 ea.
Screw, DIN Rain Mounting (to Bracket)
19002869
19002869
43
1 ea.
Power Supply, 24V DC SIEMENS
19003762 19003762
44
1 ea.
Relay, 30A/24V DC DPST - Schneider
19003558
19003558
45
2 ea.
Terminal Block Module
3588201
3588201
46
3 ea.
Terminal Block Module
3588202
3588202
