Franke F3D3P Service Manual

F3D3 Series Service Manual Parts List & Component Diagrams / Section 1.5
Questions? Call Franke Technical Support Group For Your Area. Page 11 Copyright  2011 Franke, Inc. All rights reserved.

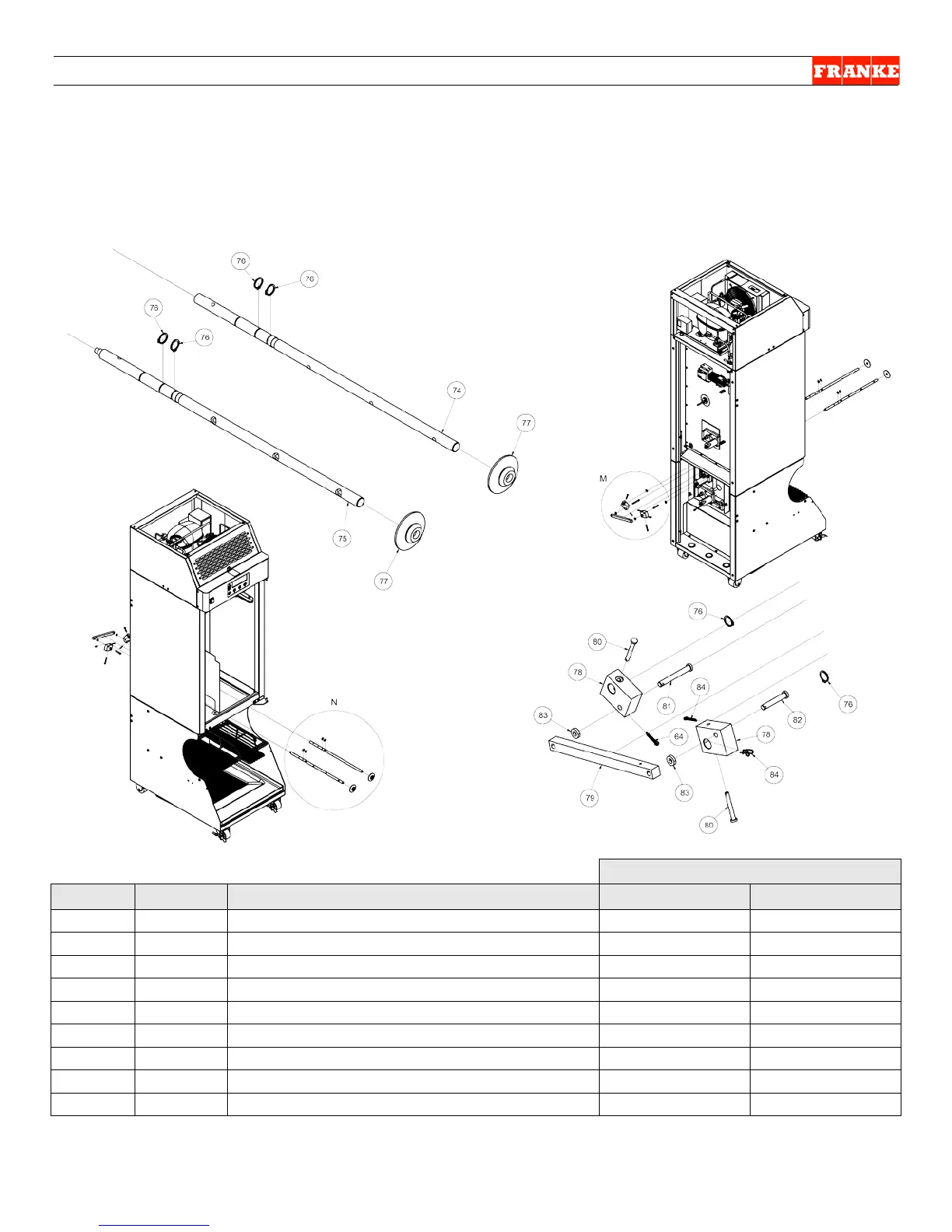

Door Shafts & Shaft Linkage (All F3D3 Versions)
Part Numbers
Key No.
Quantity
Description
120-Volt/60 Hz
230-Volt/50 Hz
74
1 ea.
Right Dispense Door Shaft
19002738
19002738
75
1 ea.
Left Dispense Door Shaft
19002737
19002737
76
6 ea.
Retaining Ring, external ½”
19000215
19000215
77
2 ea.
Seal, Door Shaft
19000891
19000891
78
2 ea.
Block , Door Rotation
19000193
19000193
79
1 ea.
Link, Door Actuator
19000194
19000194
80
2 ea.
Clevis Pin (4.55 x 38.1)
19000210
19000210
81
1 ea.
Clevis Pin (6.35 x 50.8)
19000211
19000211
82
1 ea.
Clevis Pin (6.35 x 38.1)
19000212
19000212
