2.20 Main Control Board Replacement
Continued…
15) Plug in unit power cord to power supply.
Test the new Main Control Board by:
16) Switch ON the Main Power Switch.
17) Press LANE-POWER touch pad for that Lane.
18) If word: Ready appears in display and basket graphic
lights come on, insert an empty fry basket under hopper
and press against bump-switch, to initiate fries
dispensing.
19) If Lane properly dispenses fries, it is working properly.
20) If Dispenser was moved to access power cord plug,
return it to normal operating position and lock front
casters.
Rev. 1 6/2012

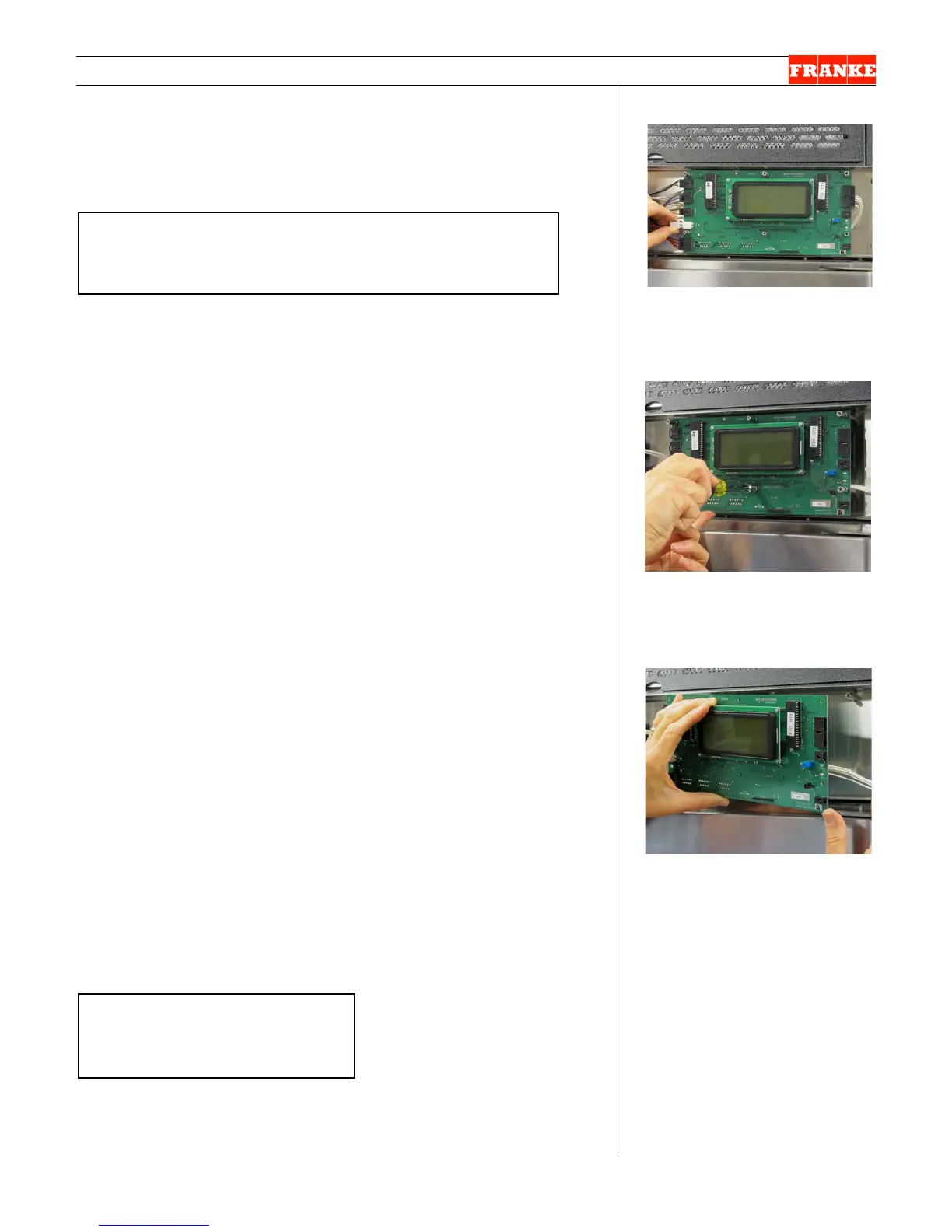

[Photo 5]
Remove all terminal connections
from main control board.
[Photo 6]
Use 6 mm [¼”] nut driver to
remove board from mounting
posts.
[Photo 7]
Lift off main control broad.

Tools Required:
 Medium Phillips screwdriver
 6 mm [1/4”] nut driver
NOTE: Load Cell Calibration is required when the Main
Control Board is replaced. See Section 1.9 Load Cell
Calibration instructions.
