51
Chapter 2 Robot Assembly
█ www.freenove.com

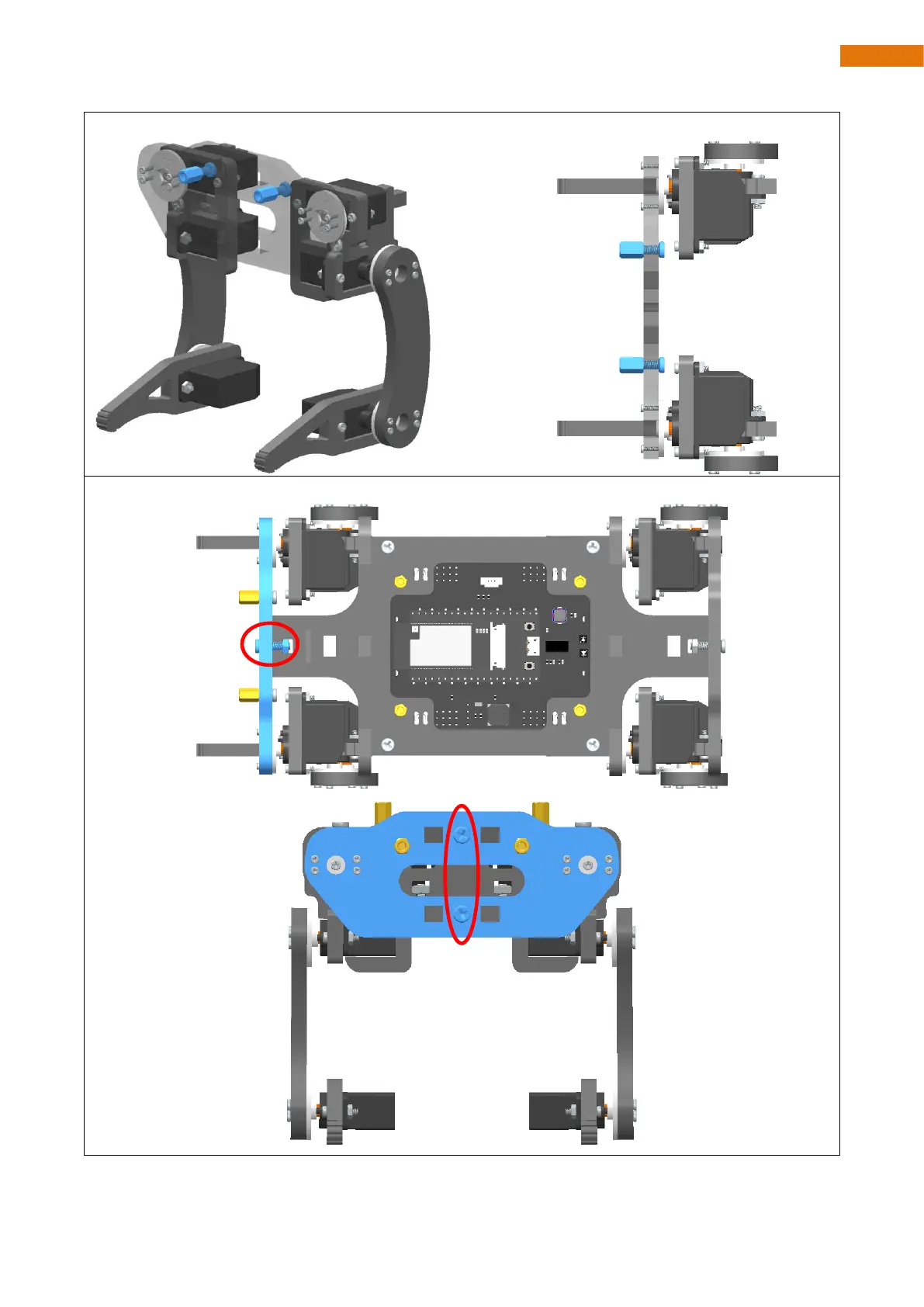

7. Mount two M3*10 standoffs to the front board with two M3*8 screws.
8. Mount the front board to the head of body bracket with a M3*12 screw and a M3 nut.
