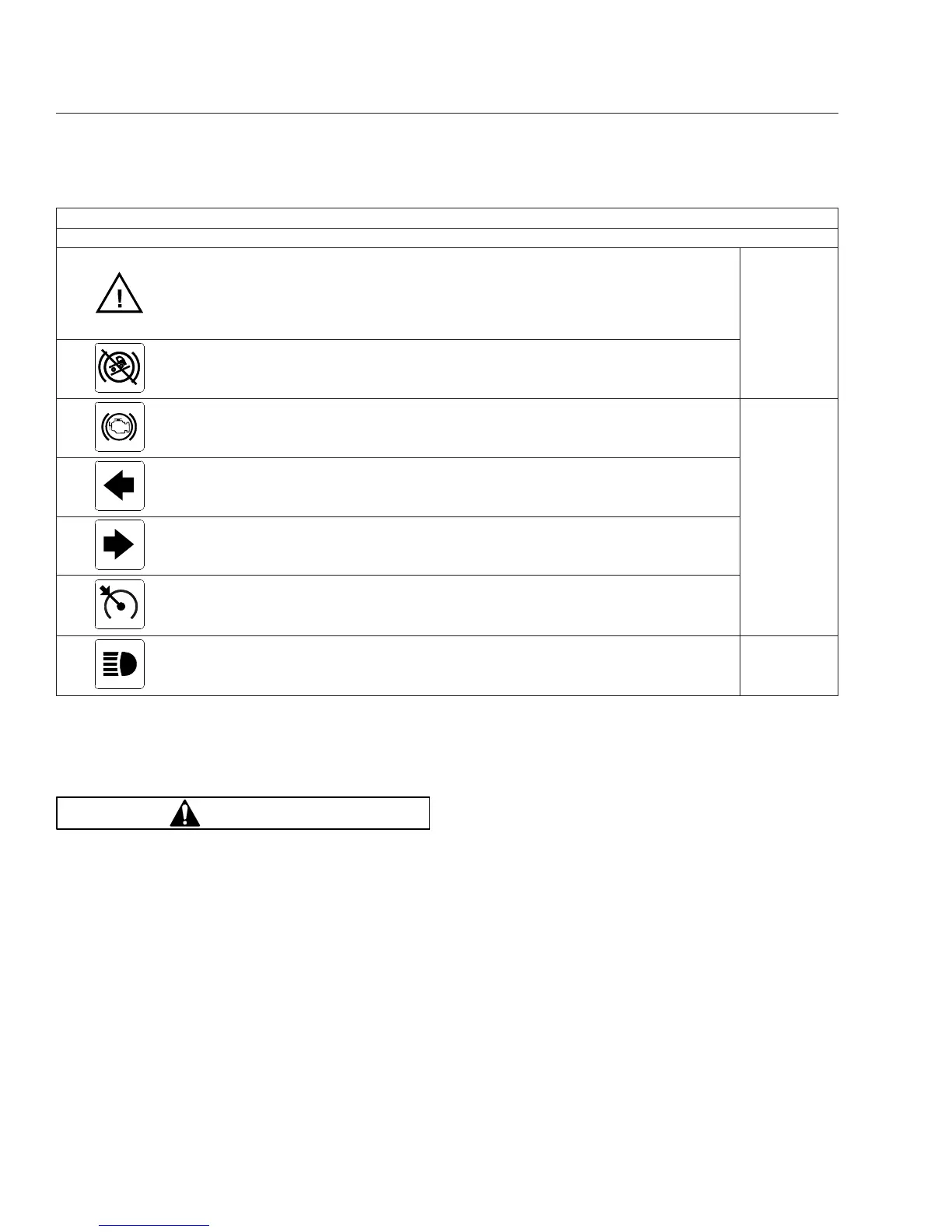

Common Warning and Indicator Lamps
Lamp Description Color
Roll Stability
Momentary illumination indicates that a stability event has
occurred.
On vehicles that are also equipped with ATC, flashing
indicates the ATC button has been pressed to allow wheel
slip.
Amber
Hill Start Aid (HSA)
Override
Indicates the HSA switch has been pressed to override the
hill start assist feature.
Engine Brake Indicates the engine brake is enabled.
Green
Left-Turn Signal
Flashing indicates the outside left-turn signal lights are
activated.
Right-Turn Signal
Flashing indicates the outside right-turn signal lights are
activated.
Cruise Control
Indicates the cruise control is enabled.
NOTE: The ICU4Me does not have a green cruise control
telltale.
High-Beam Headlights Indicates the high-beam headlights are on. Blue
*
See Fig. 4.4 for an explanation of the aftertreatment system (ATS) warning indicators, and actions required to avoid further engine protection steps.
Table 4.1, Common Warning and Indicator Lamps
Engine Protection System
WARNING
When the red STOP engine lamp illuminates,
most engines are programmed to shut down au-
tomatically within 30 seconds. The driver must
immediately move the vehicle to a safe location
at the side of the road to prevent causing a haz-
ardous situation that could cause bodily injury,
property damage, or severe damage to the en-
gine.
See
Fig. 4.4 for an explanation of the aftertreatment
system (ATS) warning indicators, and actions re-
quired to avoid further engine protection steps.
The STOP engine lamp illuminates when the engine
protection system is activated in one of two ways. On
some engines, the engine protection system will der-
ate the engine, allowing it to run at lower rpm and
slower vehicle speed. Drive the vehicle to a safe lo-
cation or to a service facility.
IMPORTANT: Safely bring the vehicle to a stop
on the side of the road and shut down the en-
gine as soon as the red light is seen. If the en-
gine shuts down while the vehicle is in a haz-
ardous location, turn the key to the OFF position
for a few seconds, then restart the engine and
move the vehicle to a safer location.
On other engines, the engine protection system will
shut down the engine. It will first derate the engine,
then shut it down completely 30 to 60 seconds after
the indicator illuminates (depending on the critical
fault type) if the condition does not improve. Bring
the vehicle to a stop on the side of the road before
the engine shuts down.
Instruments
4.7
