Bostrom Seat
See Fig. 6.4 for Bostrom seat adjustment controls.
Back Cushion Tilt
To tilt the back cushion, lean forward slightly to re-
move pressure from the cushion then hold the back
cushion tilt lever rearward. Lean backward slowly to
the desired position and release the lever to lock the
cushion in place.
Weight and Height Adjustment
To raise the seat, press the upper portion of the
weight and height adjustment switch. To lower the
seat, press the lower portion of the switch.
Isolator
To engage the isolator, put the isolator lever in the
center position. Lock out the isolator by moving the
lever to the right.
Fore-and-Aft Seat Adjustment
Hold the fore-and-aft adjustment lever to the left and
slide the seat forward or backward to the desired
position.
Bottom Cushion Tilt Adjustment
Rotate the bottom cushion tilt knob to increase or
decrease bottom cushion tilt.
11/24/2009 f910616
1
2
3
4
5
6
7
1. Fore/Aft Seat
Adjustment Lever
2. Isolation Adjustment
3. Height Adjustment
4. Lumbar Support
Switch
5. Back Cushion Tilt
Lever
6. Bottom Cushion Angle
Guide
7. Armrest Adjustment

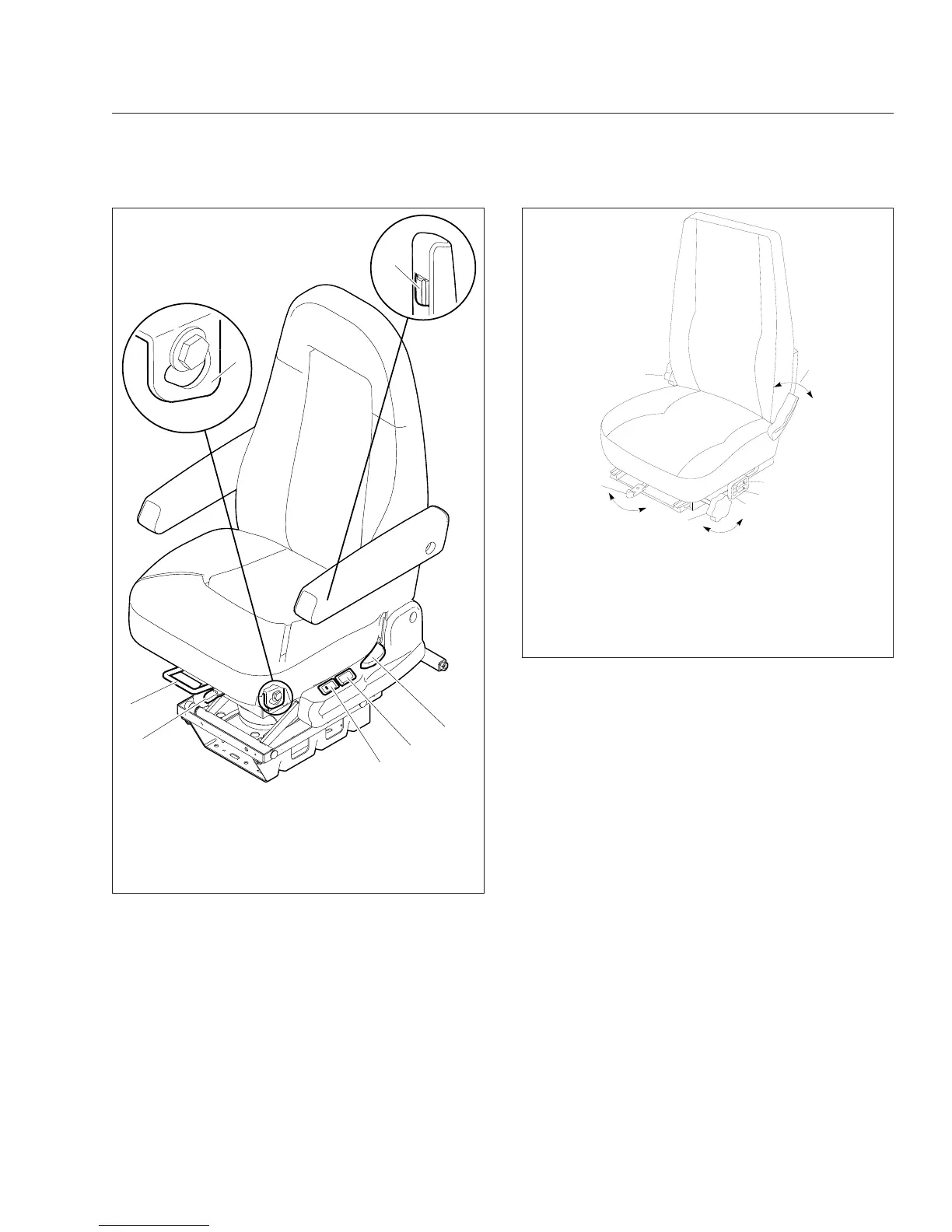

Fig. 6.3, EzyRider Seat Adjustment Controls
1
2
3
4
5
6
7
10/10/96
f910131
1. Back Cushion Tilt Lever
2. Lumbar Support Switch (LSO models)
3. Damper Adjustment Switch
4. Weight and Height Adjustment Switch
5. Bottom Cushion Tilt Knob
6. Fore-and-Aft Adjustment and Isolator Lever
7. Lumbar Support Knob (non-LSO models)
Fig. 6.4, Bostrom Seat Adjustment Controls
