Seat Tilt Control
Set the seat tilt control to one of the five positions to
set cushion rake adjustment.
Backrest Adjustment
To tilt the backrest backward, pull up on the recliner
handle while leaning backward. To tilt the backrest
forward, pull up on the recliner handle while leaning
forward.
Armrest Adjustment
Rotate the control knob, located on the underside of
the armrest, to set the desired angle of the armrest.
Shoulder Belt Height Control
Adjust the shoulder belt height. The height can be
adjusted vertically by 3 inches (75 mm).
Seat Belts and Tether Belts
General Information
Seat belt assemblies are designed to secure persons
in the vehicle to help reduce the chance of injury, or
the amount of injury, resulting from accidents or sud-
den stops. For this reason, Daimler Trucks North
America LLC urges that the driver and all passen-
gers, regardless of age or physical condition, use
seat belts when riding in the vehicle.
WARNING
Always use the vehicle’s seat belt system when
operating the vehicle. Failure to do so can result
in severe personal injury or death.
Seat belt assemblies in Daimler Trucks North
America (DTNA) vehicles meet Federal Motor Ve-
hicle Safety Standard 209, "Type 1" and "Type 2" re-
quirements.
When transporting a child, always use a child re-
straint system or the vehicle seat belts as appropri-
ate. To determine whether a child restraint system is
required, review and comply with applicable state
and local laws. Any child restraint used must comply
with Federal Motor Vehicle Safety Standard 213,
"Child Restraint Systems." When providing a child
restraint system, always carefully read and follow all
instructions pertaining to installation and usage for
the child. Make certain the child remains in the re-
straint system at all times when the vehicle is in mo-
tion.
In addition to seat belt assemblies, tether belts are
installed on suspension-type seats. Tether belts pro-
vide a flexible extension of the cab structure. They
help secure the seat to the floor, and are intended to
11/30/2011 f910676
1
2
3
4
5
6
7
8
9
10

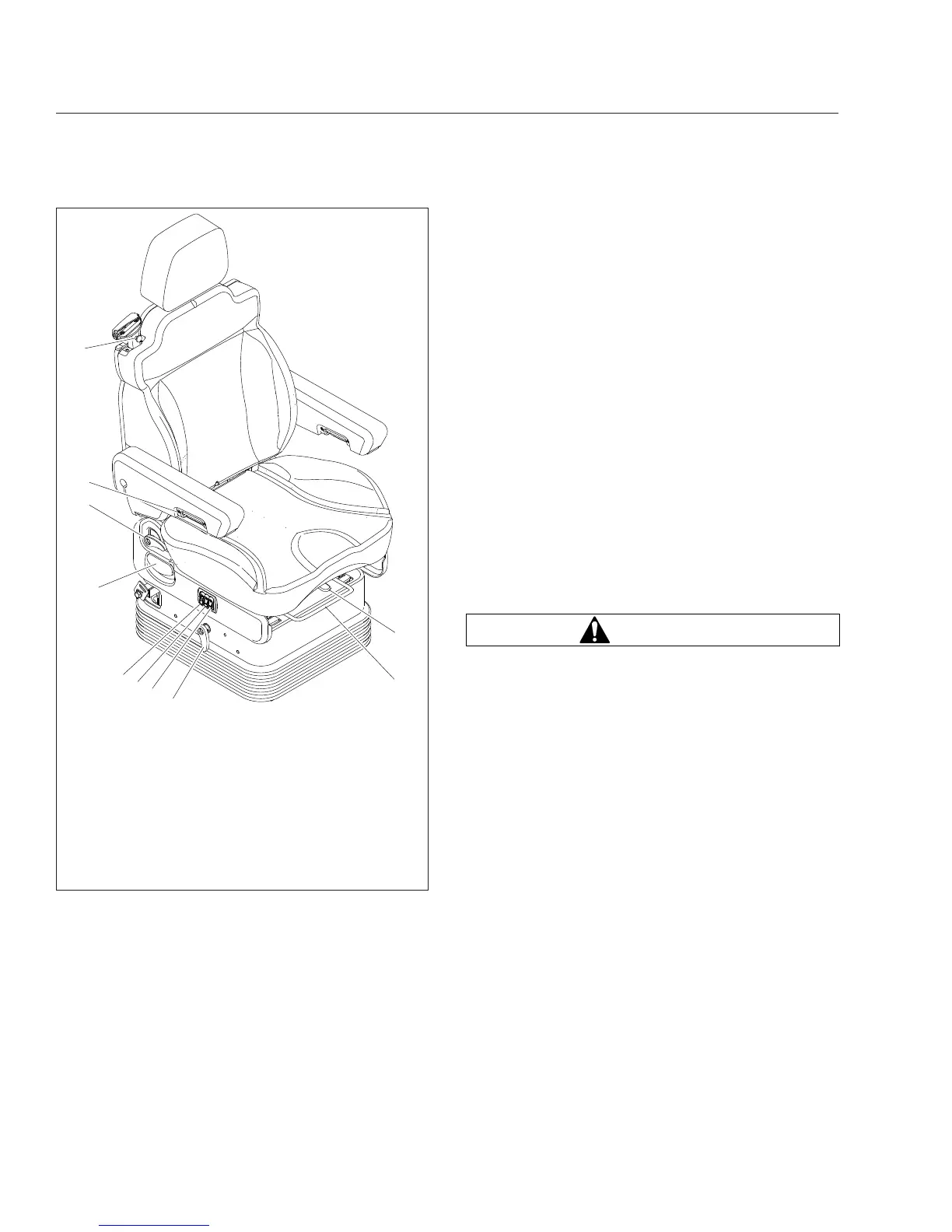

1. Cushion Extension Adjustment Lever
2. Track Adjustment Handle
3. Isolator Control Handle
4. Upper Lumbar Adjustment Switch
5. Lower Lumbar Adjustment Switch
6. Seat Height Adjustment Switch
7. Seat Tilt Control
8. Recliner Handle
9. Armrest Control Knob
10. Shoulder Belt Height Control
Fig. 6.7, ABTS Seat Adjustment Controls
Seats and Restraints
6.7
