3 Technology

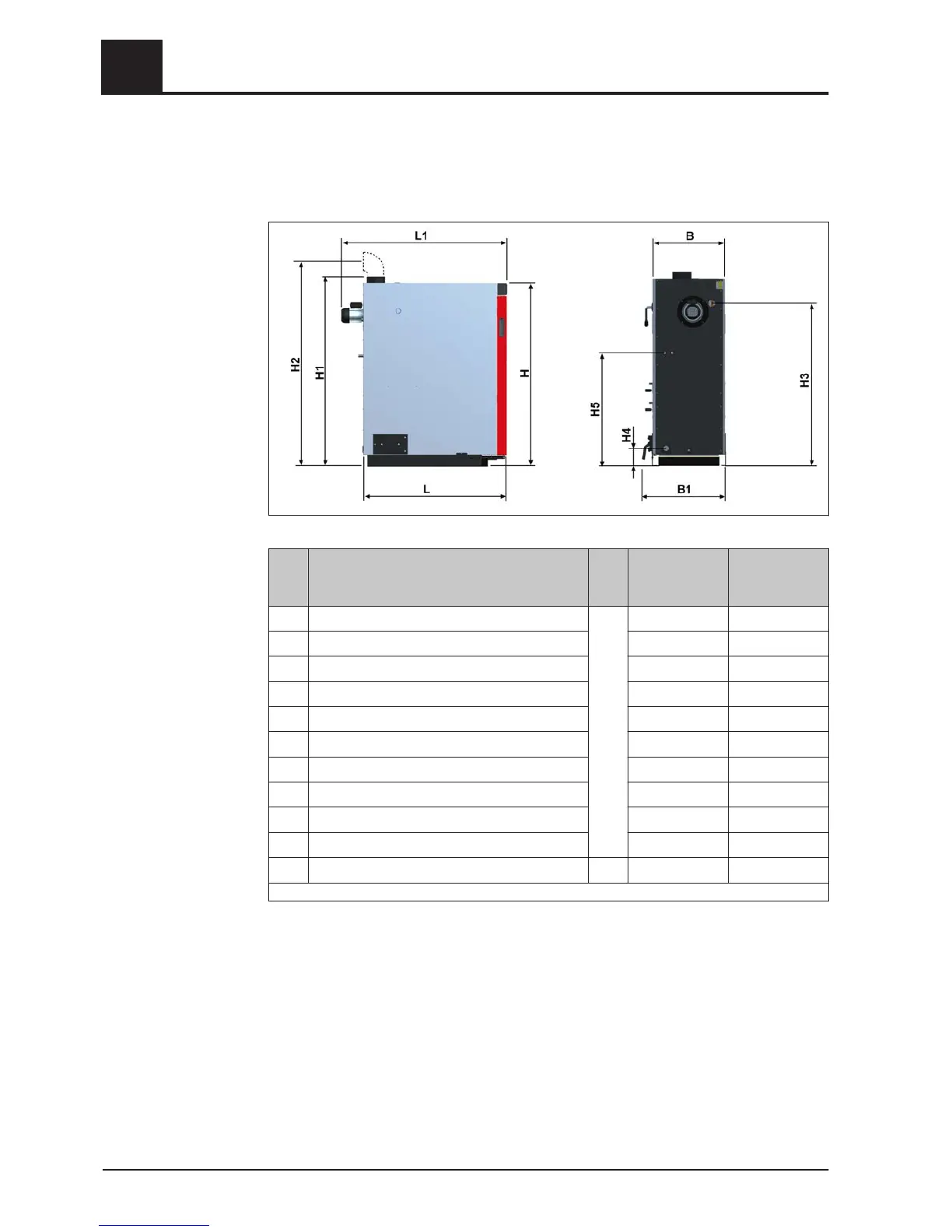

3.1 Dimensions
Dim
ensi
on
Name Unit S3 Turbo
20-30
1)
S3 Turbo
40-45
L Length of boiler mm 1160 1250
L1 Total length including induced draft fan 1260 1350
B Width of boiler 570 670
B1 Total width inc. side cleaning door 680 780
H Height of boiler 1470 1570
H1 Total height incl. flue gas nozzle 1530 1630
H2 Height of flue pipe connection 1750 1850
H3 Height of flow connection 1280 1380
H4 Height of return connection 140 140
H5 Height of safety battery connection 890 970
H6 Height of drainage connection 120 120
1.Applies for S3 Turbo 18 as well (only available in Italy)
3
Technology
Dimensions
