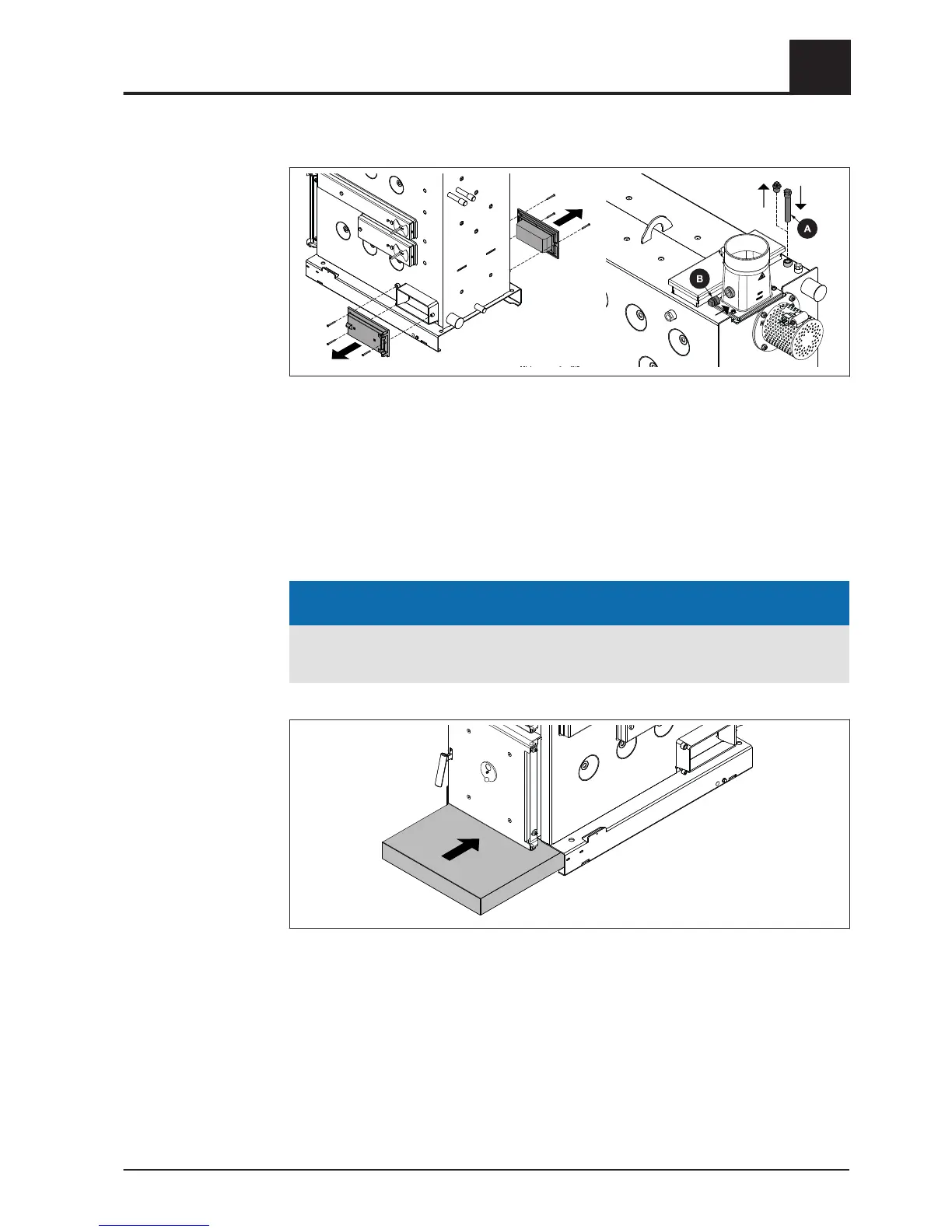

4.5.4 Final steps before insulating
❒ Remove the side blanking plate and cleaning door
❒ Remove plugs, then seal and screw in the immersion sleeve (A) for thermal
discharge safety device sensor
❒ Seal the broadband probe connection with a 3/4" blanking plug (B)
➥ On the S3 Turbo with S-Tronic Lambda, the broadband probe will be mounted
here later
4.5.5 Installing the insulation
NOTICE
The individual parts of the boiler insulation covered with a protective film. You
must remove the protective film before proceeding with installation.
❒ Push in the floor insulation
Only for S-Tronic Plus:
Assembly
4
Installing the boiler
Installation Instructions S3 Turbo | M1081217_en 39
