❒ Use suitable tools (e.g. screwdriver and hammer) to push the hinge far enough
toward the rear so that when the door is closed, there is slight resistance at a gap
of approx. 2-3 cm
➥ Caution: the hinge must be aligned in the same way at the top and bottom!
❒
Tighten the nuts at the top and the bottom on the side of the door with the stop
NOTICE! When the door stops have been changed, you must check the settings and
seal of the door.
⇨ See "Setting and checking the seal on the doors" [page 29]
Converting the fuel loading door

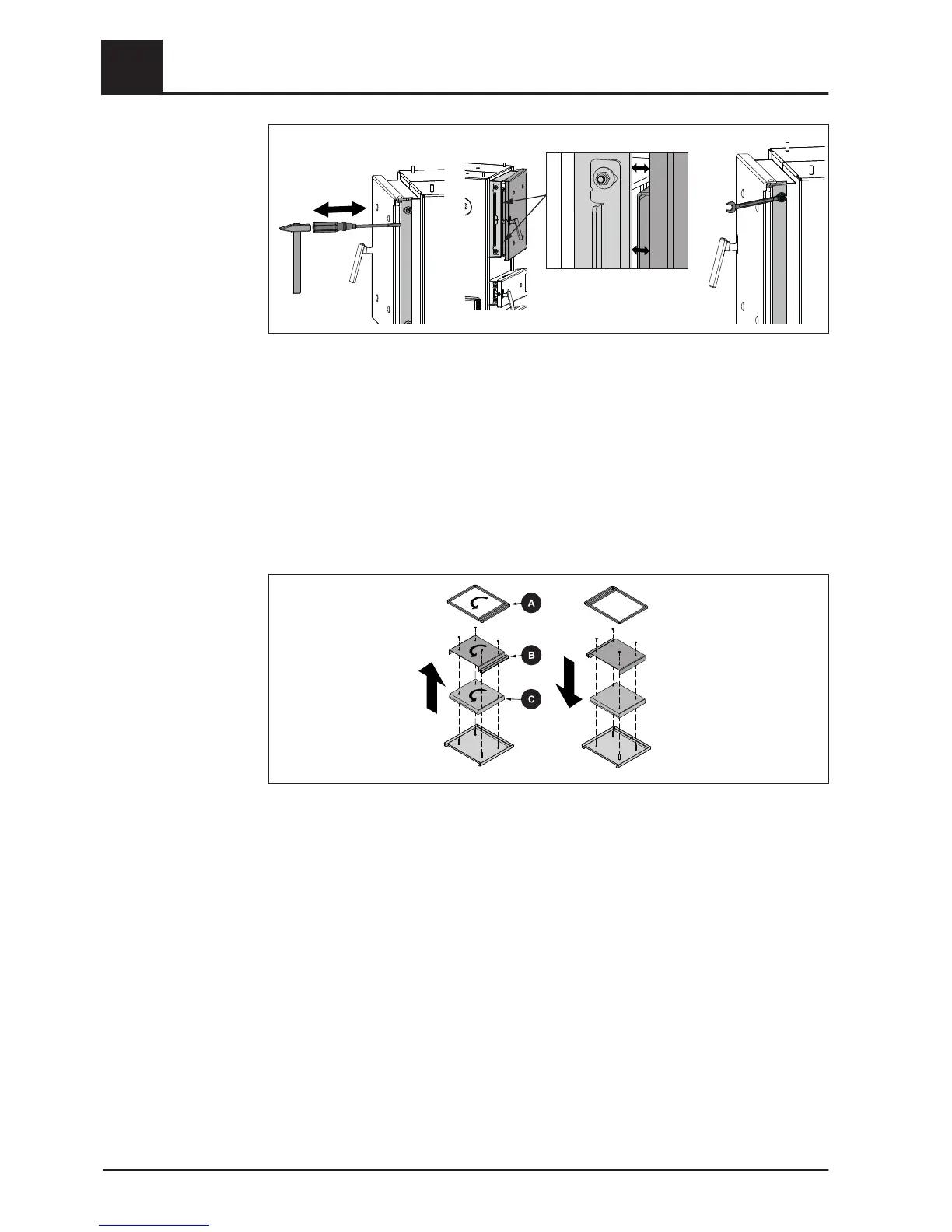

❒ Remove the radiation plate (B) together with the seal (A)
❒
Carefully lift out the insulating plate (C)
❒ Turn the insulating plate (C), radiation plate (B) and seal (A) by 180° and position
them so that they line up with the holes provided
❒ Refit the radiation plate (B) and insulating plate (C)
❒ Use contact adhesive to fix the seal (A) in place
