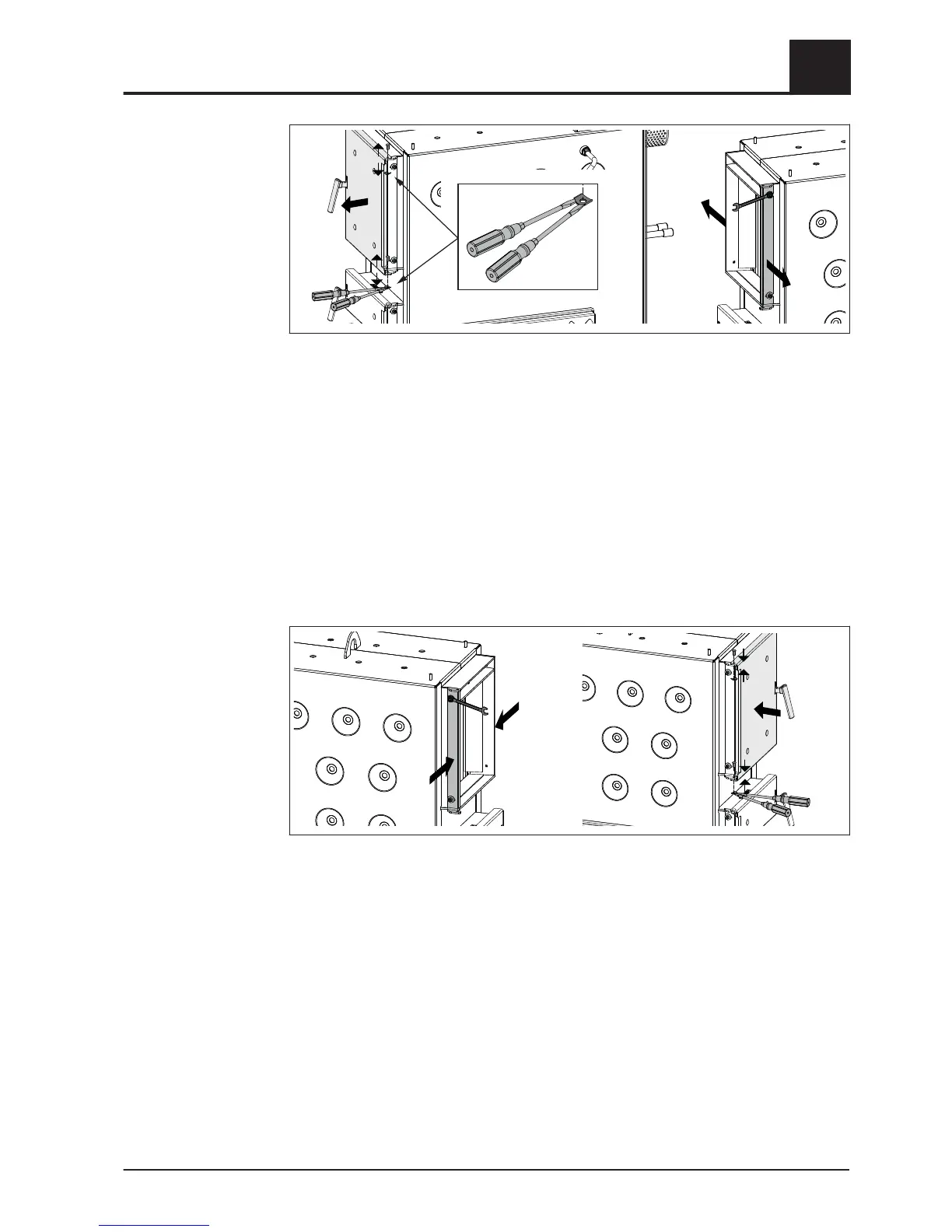

❒ Undo the retainer of the hinge pin at the top and bottom door hinge
➥ For example, use two screwdrivers to gently bend the retainer plate out to
loosen it
❒
Take out the top and bottom hinge pins and take off the fuel loading door
❒ Remove the locking plate and hinge
➥ Loosen the nuts (M8) with Allen wrench (SW 13 mm)
❒ Remount the locking plate and hinge with spacer washers and nuts on the other
side
➥ Only partially tighten the nuts
NOTICE! At this point, the fuel loading door must be rebuilt if the stop of the door is
being changed. ⇨ See "Converting the fuel loading door" [page 28]
❒ Rotate the door and rehang it with the stop on the other side
➥ Secure at the top and bottom with the hinge pins
❒
Refit the retainers to the top and bottom hinge pins
➥ to do so, we recommend using two screwdrivers
Assembly
4
Before Installation
Installation Instructions S3 Turbo | M1081217_en 27
