Froling S3 Turbo Installation Instructions

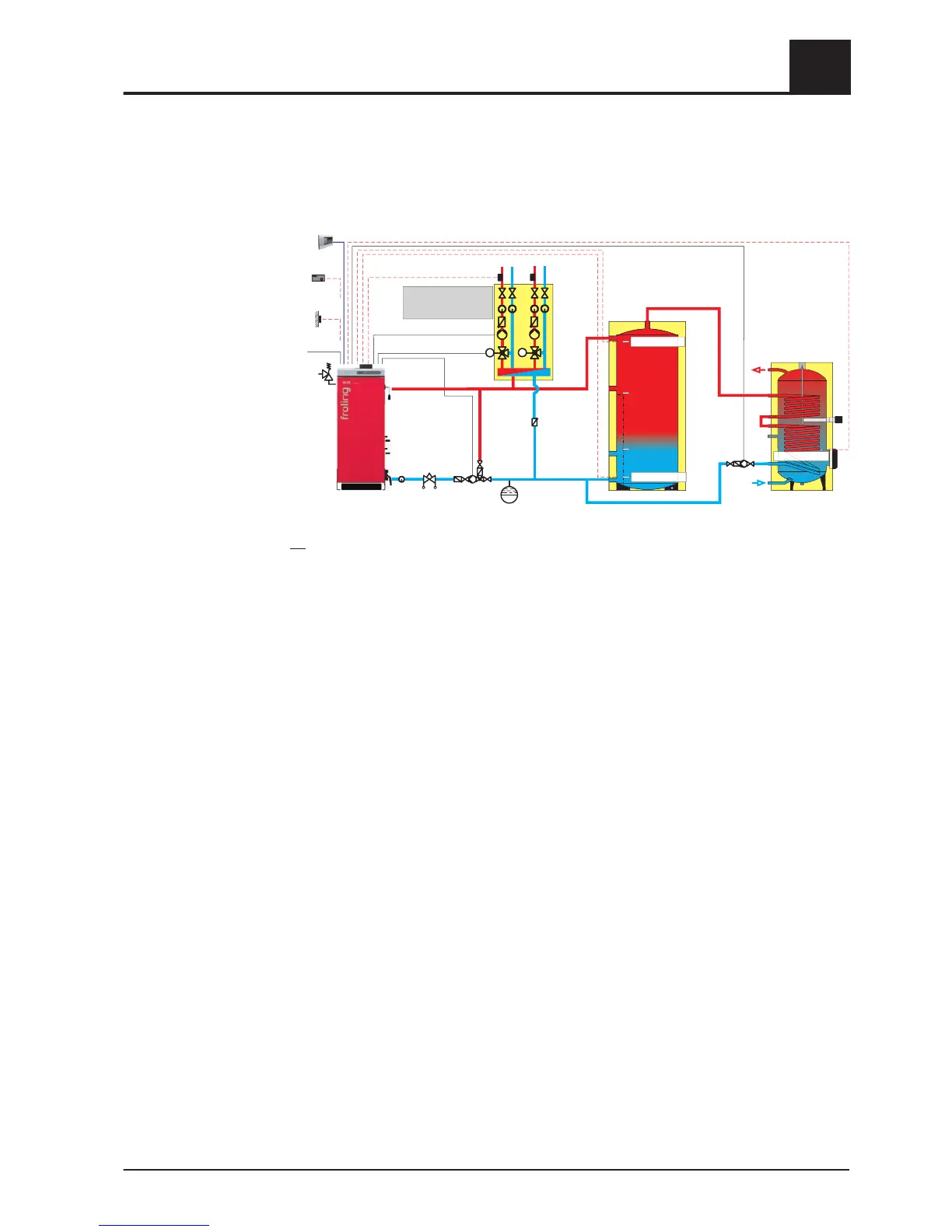

Hydraulic system
Possible, non-binding planning suggestion:
MM
MM
Room sensor
(Option)
External sensor
Mains supply
230V
Log wood boiler
S3 Turbo
Pump assembly
FE
Pump 1
Flow temp. sensor 1/2
Heating circuit 1/2
Mot. mixing valve 1/2
Layered tank
Domestic
hot water
HKP 0
Cold
w
ater
Pump assembly
O
E
DHW tank
Unicell NT -S
Note:
Controller S-Tronic Plus
Temp. sensor 0.1
Temp. sensor 0.2
Return sensor
With heating circuit modules
(Bus connection) up to
heating circuits are available
18
RBG 3200 /
RBG 3200 Touch
(Option)
Balancing
valve
NOTICE! It is not possible to combine the control of a return mixer with the control of a
boiler!
Assembly
4
Power connection and wiring
Installation Instructions S3 Turbo | M1081217_en 53
