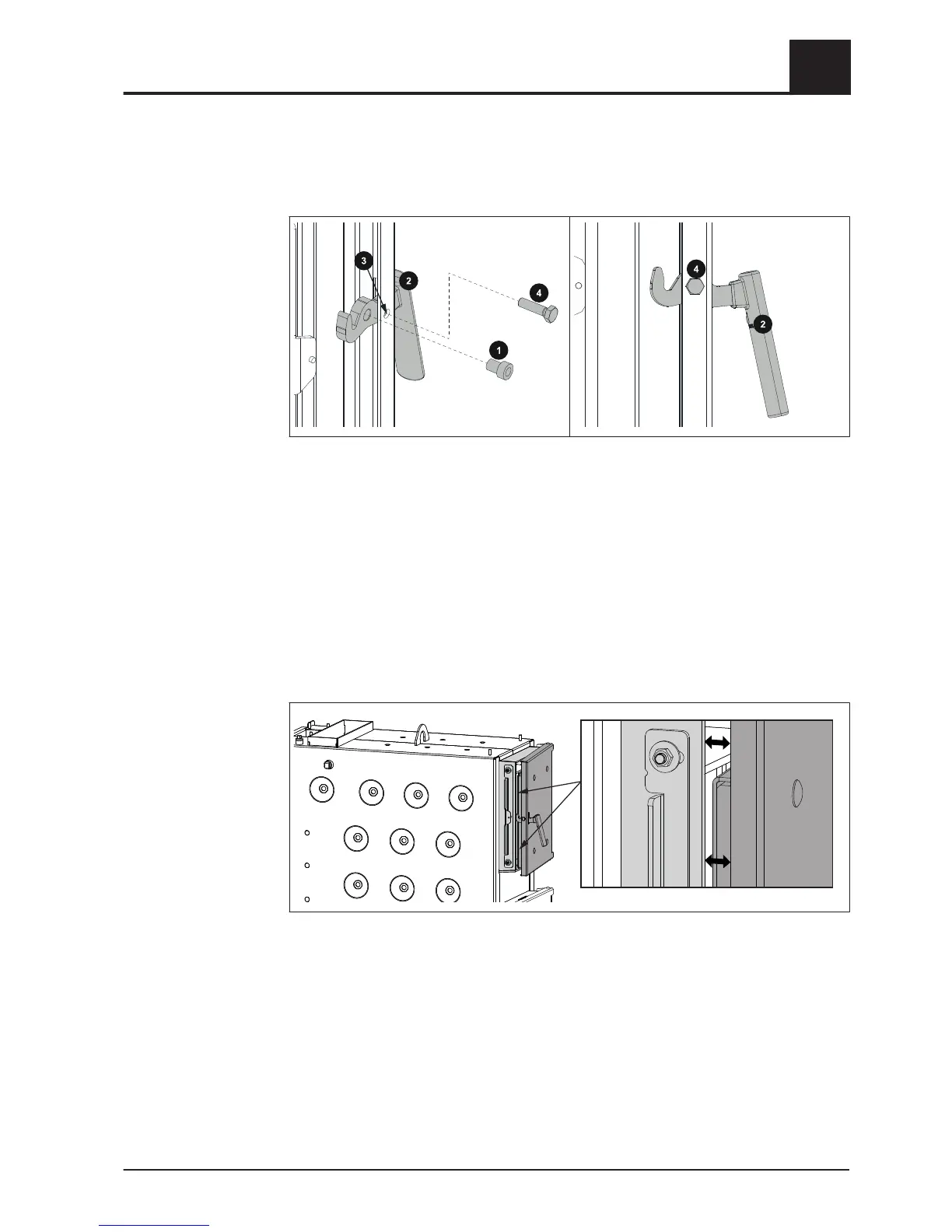

4.4.2 Fitting the door handles
The procedure is the same for all doors.
❒ Insert the flange bushing (1) into the door handle (2) and position it alongside the
hole (3) provided
❒
Fix the door handle (2) in place using screws (4)
4.4.3 Setting and checking the seal on the doors
The example below shows how to set and check the seals on the fuel loading doors.
The procedure is the same for the combustion chamber door and the pre-heating
chamber door!
On the side with the door stop
❒ Close the door
➥ A slight resistance must be felt when there is a gap of 2 - 3 cm:
Setting OK
➥ No resistance or only very slight resistance felt:
setting must be corrected - push the hinge toward the back
⇨ See "Positioning the doors" [page
31]
➥ Resistance noticeable at a gap of >3 cm:
Setting must be corrected - push the hinge toward the front
⇨ See "Positioning the doors" [page 31]
Checking the setting:
Assembly
4
Before Installation
Installation Instructions S3 Turbo | M1081217_en 29
