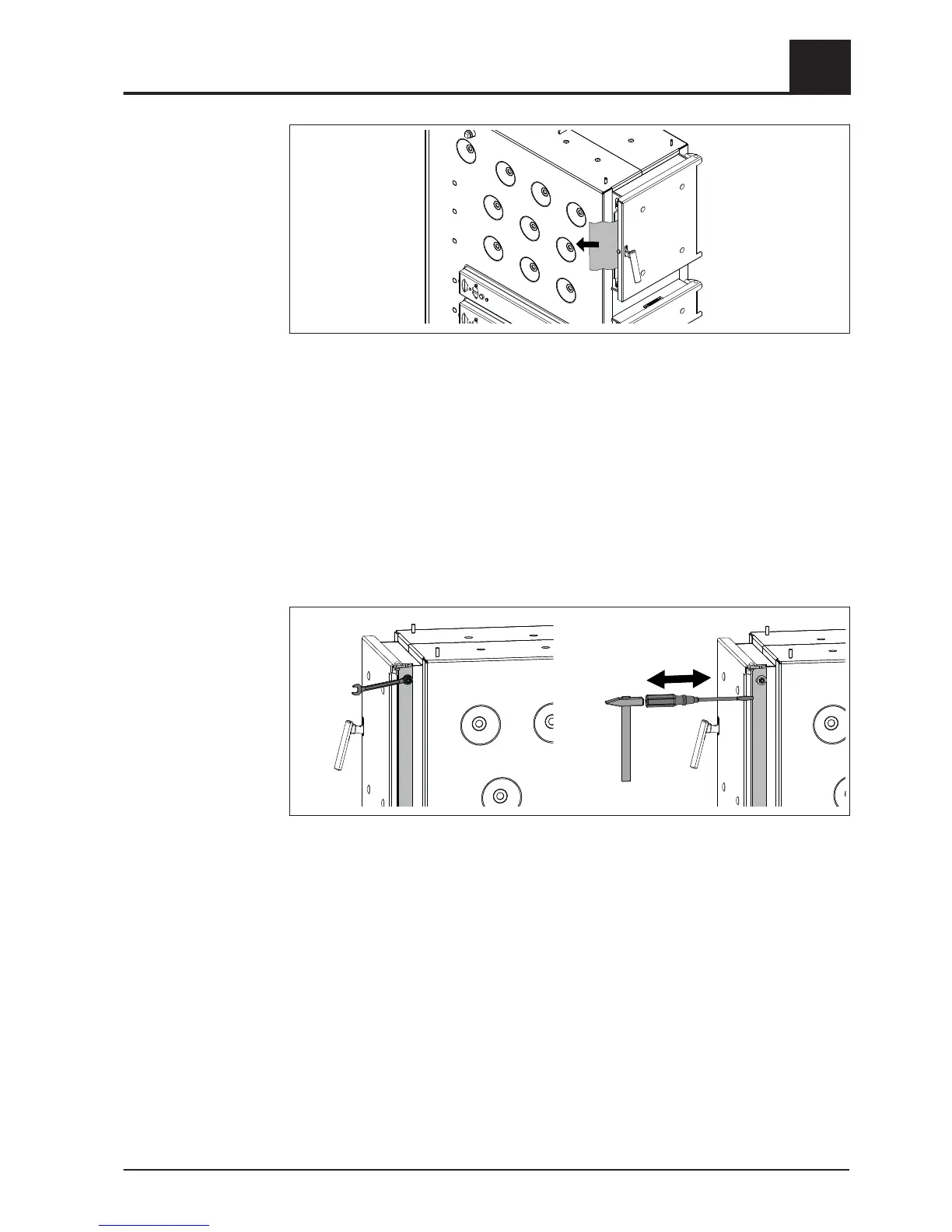

❒ Open the door
❒ Insert a sheet of paper at both the top and the bottom area at the side of the door
handle between the door and the boiler
❒ Close the door
❒ Try to pull out the sheets of paper
➥ If the paper cannot be removed:
the door is sealed.
➥ If the paper can be removed:
The door is not sealed properly - push the locking plate toward the back.
⇨ See "Positioning the doors" [page 31]
Positioning the doors
❒ Using an Allen key (SW 13 mm), loosen the nuts on the locking plate and/or hinge
at the top and bottom
❒
Use suitable tools (e.g. screwdriver and hammer) to move the locking plate and/or
hinge to the rear or the front as needed
➥ Caution: the locking plate and/or hinge must be aligned in the same way at the
top and bottom!
❒ Tighten the nuts at the top and bottom
Checking the seal:
Assembly
4
Before Installation
Installation Instructions S3 Turbo | M1081217_en 31
