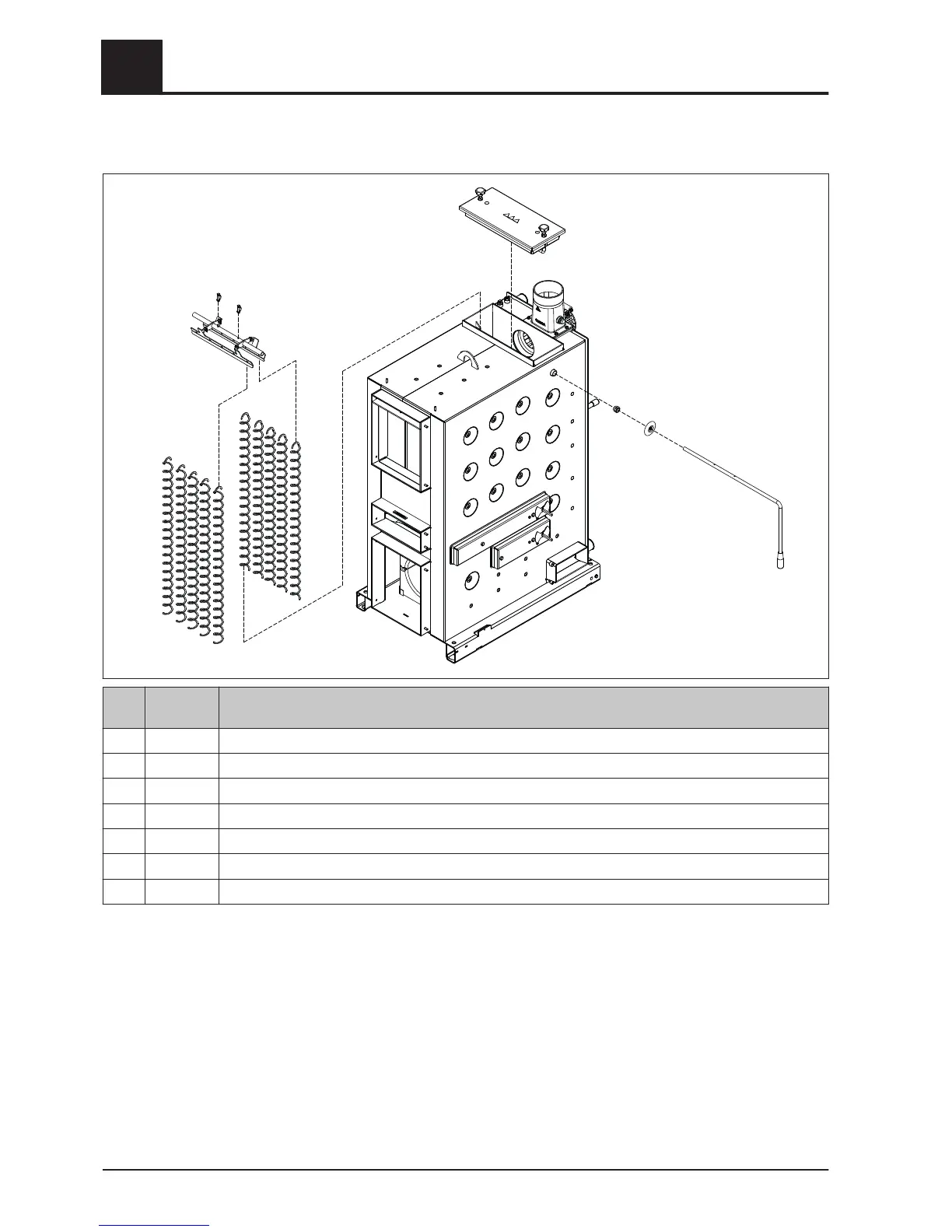

WOS system S3 Turbo 40-45
1
2
3
4
6
7
7
5
5
Item
Quantity
[units]
Name
1
1
WOS cleaning cover, complete
2
1
Grey cast iron bushing
3
1
Plastic cover
4
1
WOS lever
5
10
WOS turbulator Ø 50 x 6 x 3 x 932
6
1
WOS bracket, complete 6 x 3
7
2
Pipe locking pin
4
Assembly
Installing the boiler
36
Froeling GesmbH | A-4710 Grieskirchen, Industriestraße 12 | www.froeling.at
35
37
Table of Contents
Default Chapter
1
Installation Instructions
1
Table of Contents
2
1 General
4
About this Manual
4
2 Safety
5
Hazard Levels of Warnings
5
Qualification of Assembly Staff
6
Personal Protective Equipment for Assembly Staff
6
Design Information
7
Notes on Standards
7
General Standards for Heating Systems
7
Standards for Structural and Safety Devices
7
Standards for Heating Water
7
Regulations and Standards for Permitted Fuels
8
Installation and Approval of the Heating System
8
General Information for Installation Room (Boiler Room)
8
Requirements for Central Heating Water
9
Notes for Using Pressure Maintenance Systems
11
Return Lift
11
Combination with Storage Tank
12
Chimney Connection/Chimney System
14
Draught Limiter
14
Measuring Port
14
Boiler Data for Planning the Flue Gas System
15
3 Technology
16
Dimensions
16
Components and Connections
17
Technical Specifications
18
4 Assembly
23
Materials Supplied
23
Tools Required
23
Positioning
24
Temporary Storage
24
Setting up in the Boiler Room
25
Remove Boiler from Pallet
25
Moving the Boiler in the Boiler Room
25
Minimum Distances in the Boiler Room
26
Before Installation
26
Changing Door Stops (as Needed)
26
Converting the Fuel Loading Door
28
Fitting the Door Handles
29
Setting and Checking the Seal on the Doors
29
Positioning the Doors
31
Installing the Boiler
32
Assembly Overview
32
Insulation
32
Air Duct System
34
WOS System S3 Turbo
35
WOS System S3 Turbo 40-45
36
Installing the Pneumatic Rods for the Primary and Secondary Air
37
Final Steps before Insulating
39
Installing the Insulation
39
WOS System S3 Turbo
40
Installing the Door Switch
42
Installing the Back Panel
42
Aligning the Insulation and Attaching the Controller
43
Installing the Cleaning Port Door and Blank Cover
45
Installing the Insulated Door
45
Fitting the Sensors
48
Install the Broadband Probe (Only with S-Tronic Lambda)
48
Installing the WOS System
49
Installing the Manual Controller/Servo-Motors
50
Mount the Manual Controller (with S-Tronic Plus Control)
50
Mounting the Servo-Motors (with S-Tronic Lambda Control)
50
Fit the Cover Plate
51
Power Connection and Wiring
52
S-Tronic Plus / S-Tronic Lambda Control
52
Power Connection
52
Hydraulic System
53
Information on Circulating Pumps
54
Connecting a High Efficiency Pump
54
Connecting a Squirrel Cage Standard Pump
55
Concluding Work
56
Connecting the Hydraulic Safety Devices
57
5 Start-Up
58
Before Commissioning / Configuring the Boiler
58
Initial Startup
59
Permitted Fuels
59
Firewood
59
Fuels Permitted under Certain Conditions
60
Wood Briquettes
60
Non-Permitted Fuels
60
Heating up for the First Time
61
Boiler with Lambda Control
61
Boiler with Manual Controller
62
6 Decommissioning
65
Mothballing
65
Disassembly
65
Disposal
65
7 Appendix
66
Pressure Equipment Regulation
66
Addresses
67
Address of Manufacturer
67
Address of the Installer
67
