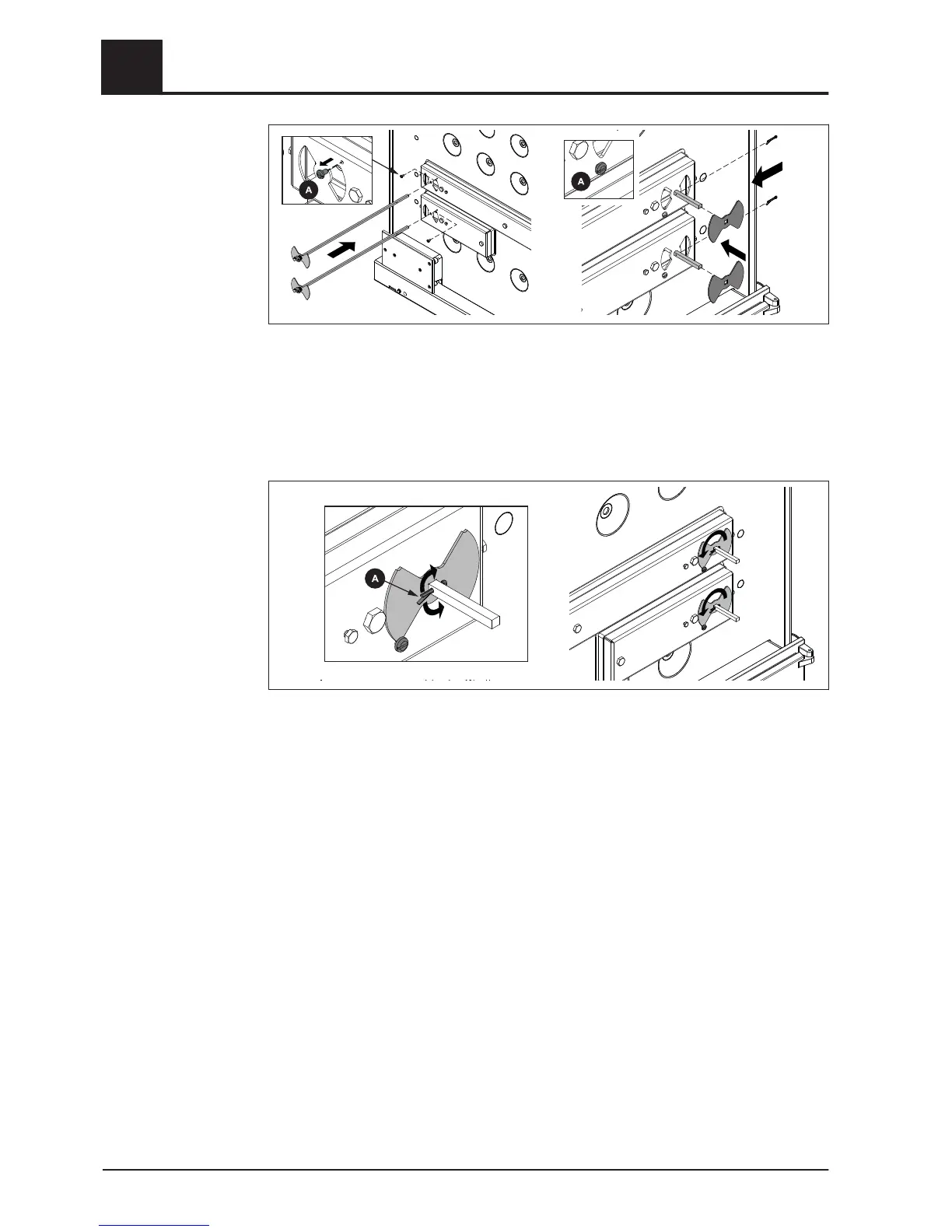

❒ Loosen the two screws (A) at the lower and upper air duct on the left side of the
boiler
❒
Unscrew the screws (A) at the lower and upper air duct on the right side of the
boiler far enough to allow the air flap to make contact with the thread
❒ Insert both pneumatic rods into the left-hand side of the boiler
➥ The air flaps with springs lie flat on the left-hand air ducts!
❒ Insert the air flaps on the pneumatic rods on the right-hand side and secure them
with split pins (A)
➥ CAUTION: the air flaps must be situation in the same position as those on the
opposite side!
❒
Turn both pneumatic rods in an anti-clockwise direction as far as the stop
4
Assembly
Installing the boiler
