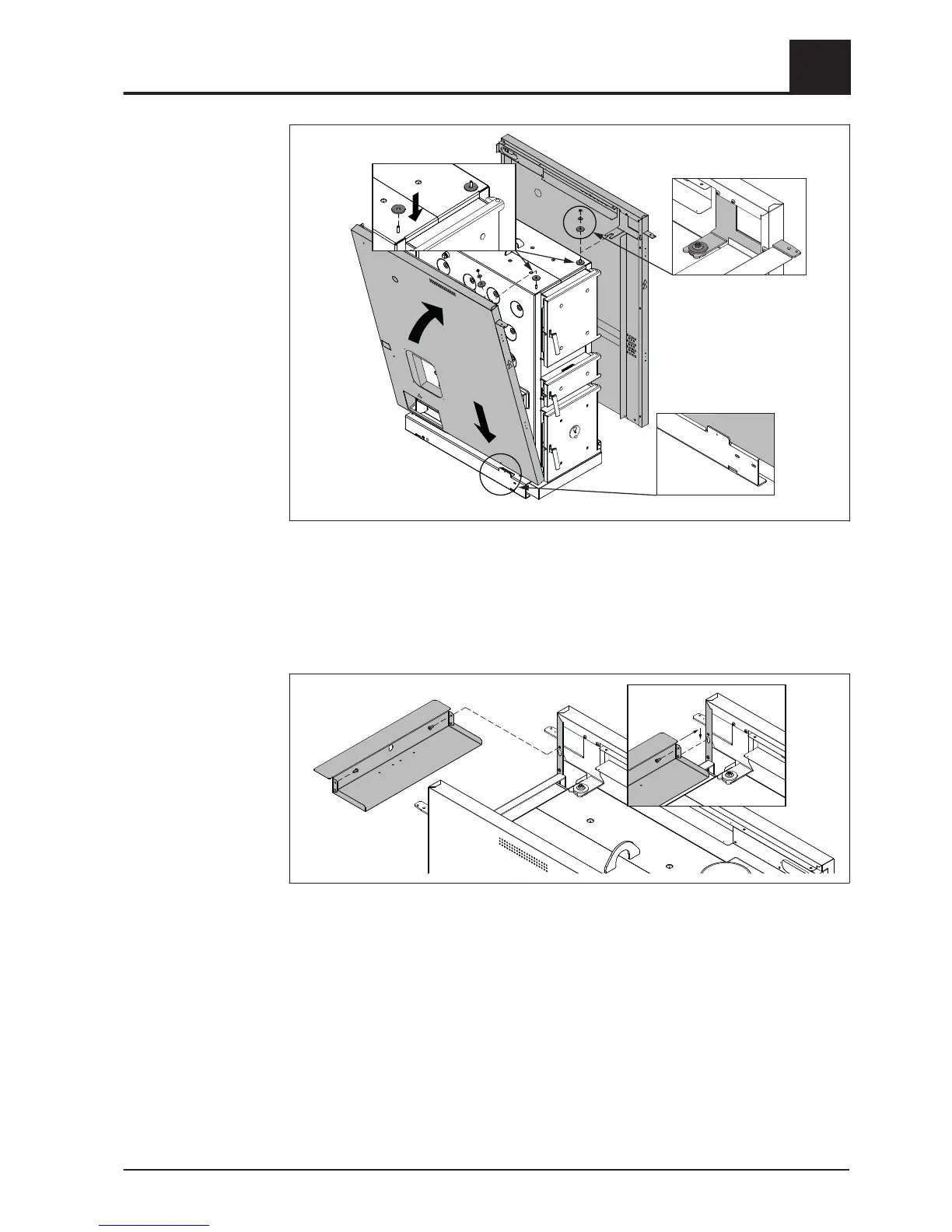

❒ Place one large spacer washer on each of the threaded bolts to the right and the
left above on the boiler
❒ Insert the insulating side panels at the base of the boiler at the flap and push them
onto the boiler
❒ Position the side panels with the door bracket onto the threaded bolts and secure
them lightly with a large and a small spacer washer and nut
❒ Hang the upper spacer plate on the rivets between the insulating side panels and
attach with thread forming screws
➥ At the same time, this procedure also secures the bracket to the insulating side
panels at the front
Assembly
4
Installing the boiler
Installation Instructions S3 Turbo | M1081217_en 41
