Froling S3 Turbo Assembly Instructions

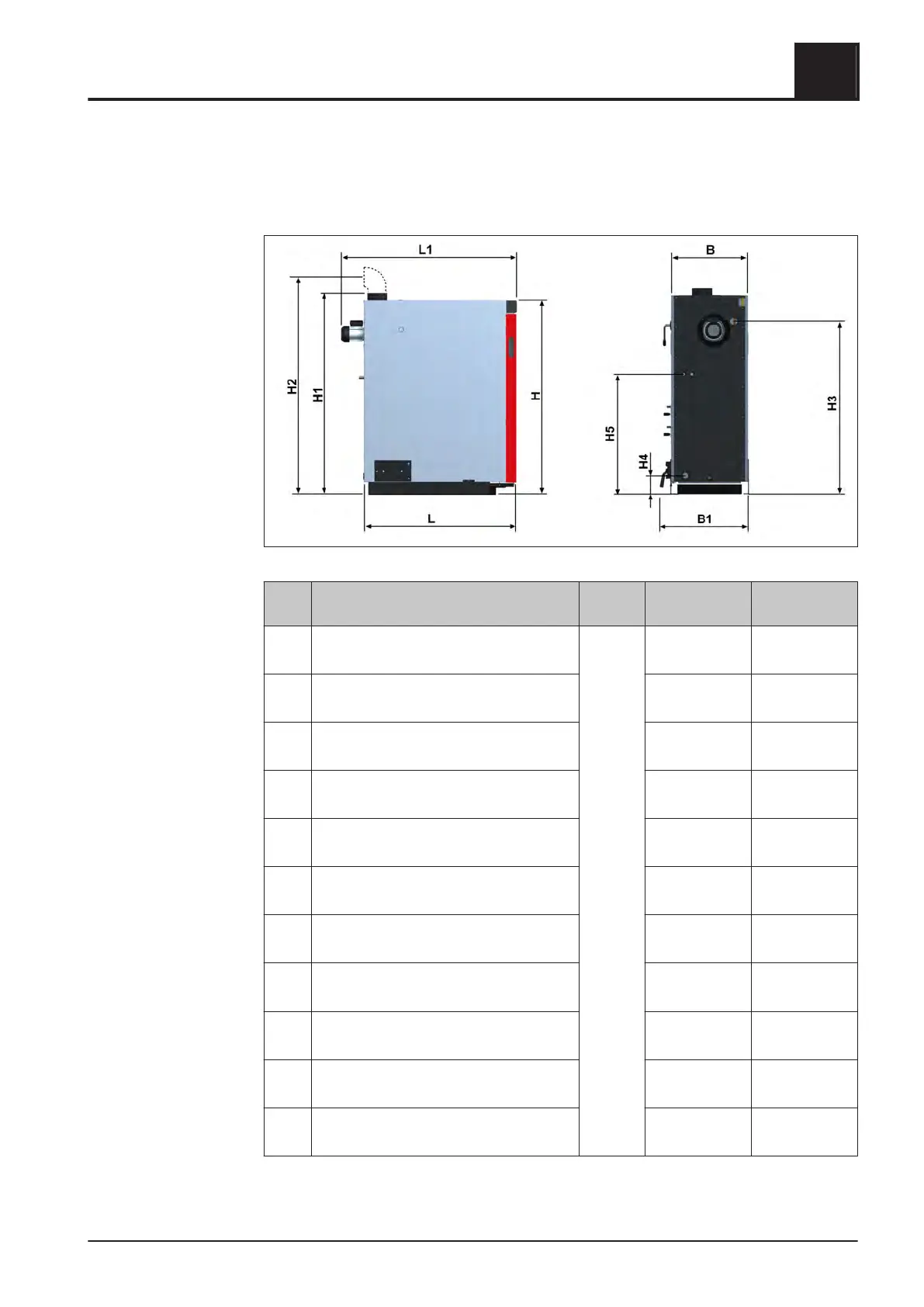

2 Technology
2.1 Dimensions
Dim. Description Unit S3 Turbo
30
S3 Turbo
50
L Length of boiler mm
inches
1160
45 ¾
1250
49 ¼
L1 Total length including induced draft fan 1260
49 ½
1350
53 ¼
B Width of boiler 570
22 ½
670
26⅓
B1 Total width inc. side cleaning door 680
26 ¾
780
30 ¾
H Height of boiler 1470
58
1570
62
H1 Total height incl. flue gas nozzle 1530
60 ¼
1630
64 ¼
H2 Height of flue pipe connection 1750
69
1850
73
H3 Height of flow connection 1280
50 ½
1380
54 ⅓
H4 Height of return connection 140
5 ½
140
5 ½
H5 Height of safety battery connection 890
35
970
38 ¼
H6 Height of drainage connection 120
4 ¾
120
4 ¾
Technology
2
Dimensions
Montageanleitung S3 Turbo | M1870119_en-us 31

Froling S3 Turbo Specifications

General

Brand	Froling
Model	S3 Turbo
Category	Boiler
Language	English
