Froling S3 Turbo Assembly Instructions

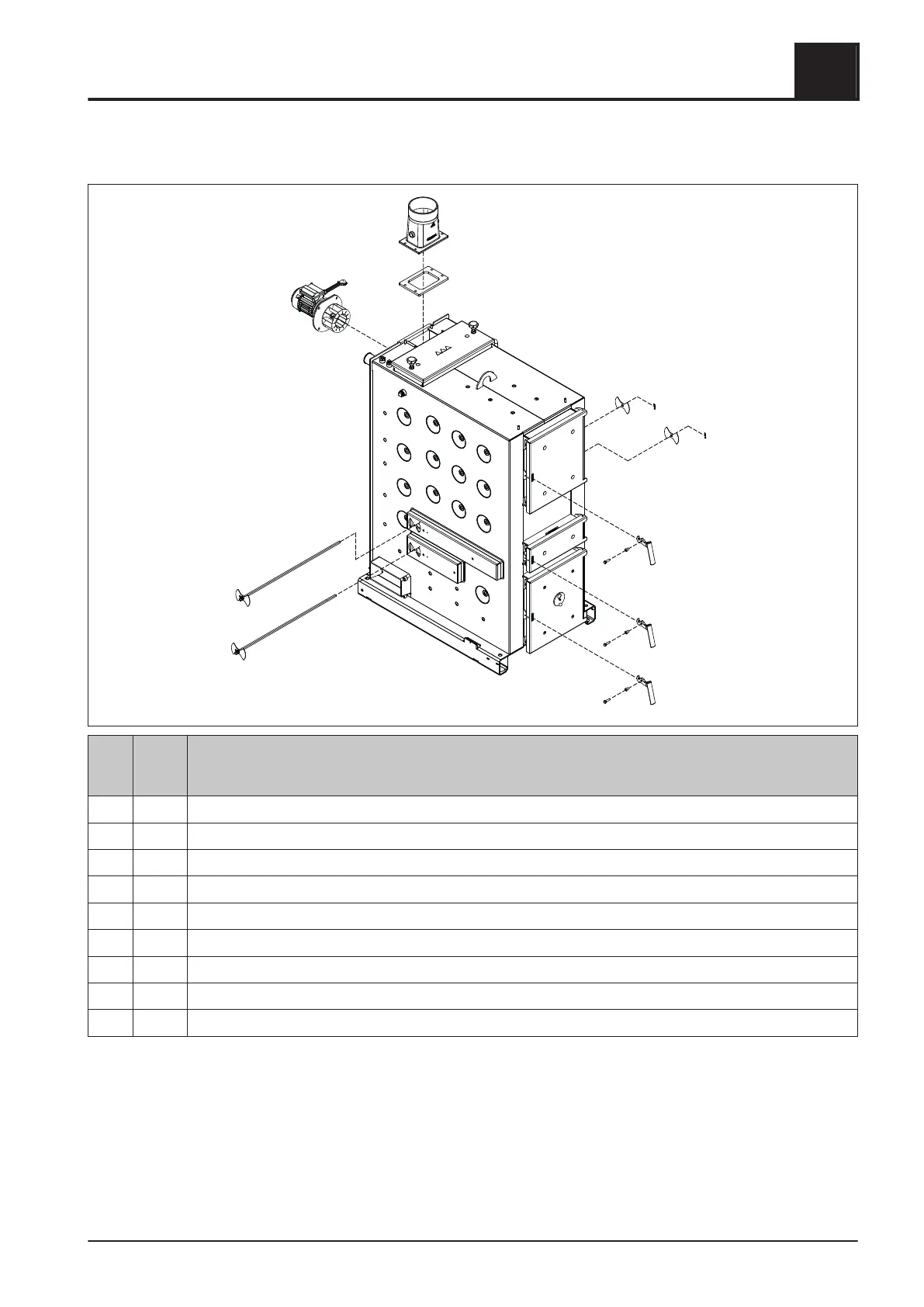

Air duct system
1
2
3
4
4
5
6
6
5
7
8
9
7
8
9
7
8
9
Item Quanti
ty
[units]
Description
1 1 Induced draught fan 3360U, complete, with rotation speed transducer
2 1 Flue gas pipe nozzle Ø 150
3 1 Ceramic fiber seal 210 x 144 x 12
4 2 Pneumatic rods, complete
5 2 Sliding valve Ø 100
6 2 Split pin Ø 3.2 x 20
7 3 Door handle, black
8 3 Bushing Ø 10 x 20
9 3 Hexagonal screw M8 x 30
Assembly
3
Installing the boiler
