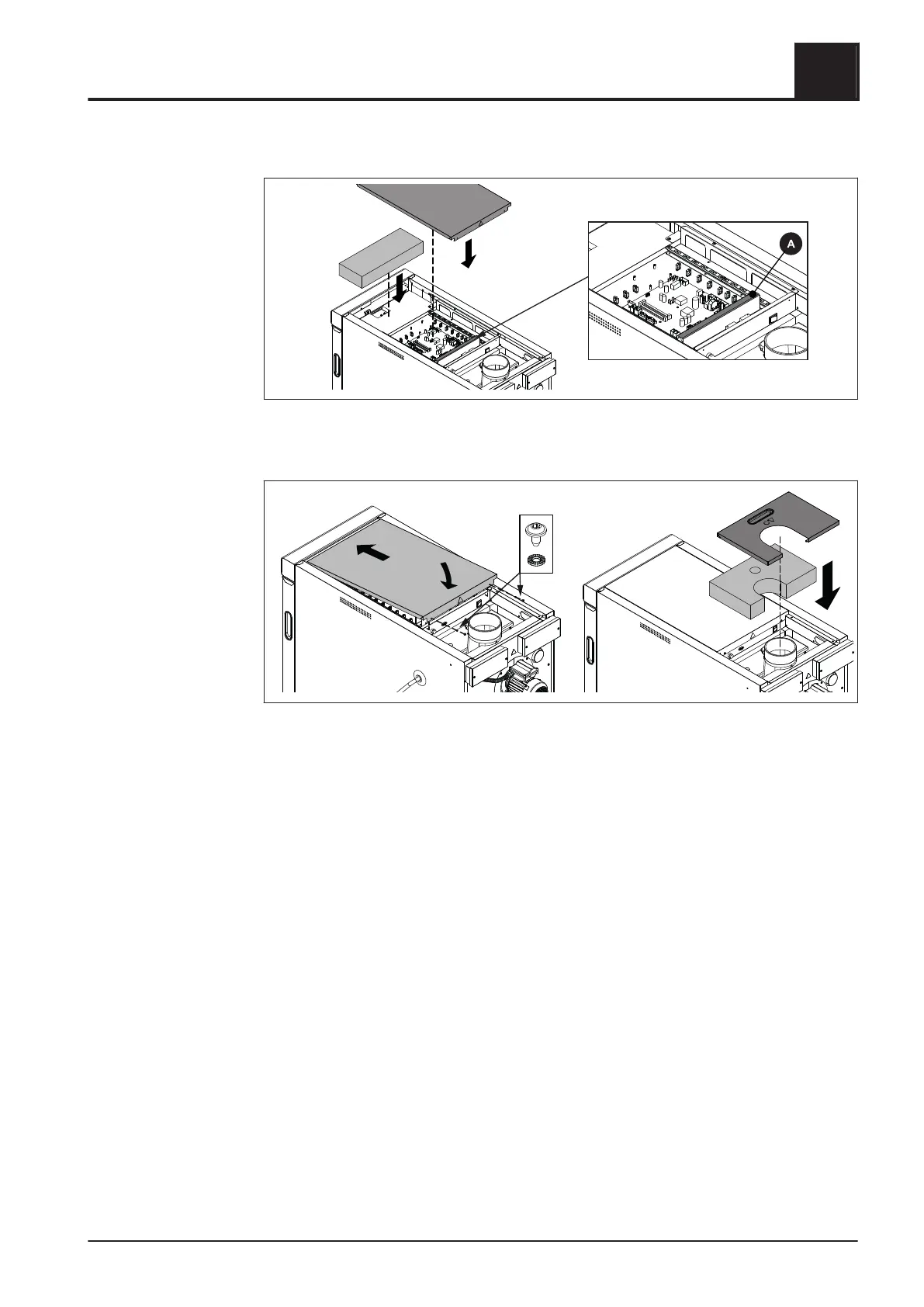

3.6.4 Final installation steps
❒ Put the front heat insulation mat on
❒ Attach the covers (A) to the controller cable ducts
❒ Put on the controller cover
❒
Use the two thread forming screws incl. contact washers to secure the controller
cover
❒ Put on the back heat insulation mat
❒ Put on the rear insulating cover
Assembly
3
Power connection and wiring
Montageanleitung S3 Turbo | M1870119_en-us 67
