Froling S3 Turbo Assembly Instructions

❒ Close the opening of the cable duct with cover plate and secure the cover plate
with two thread forming screws

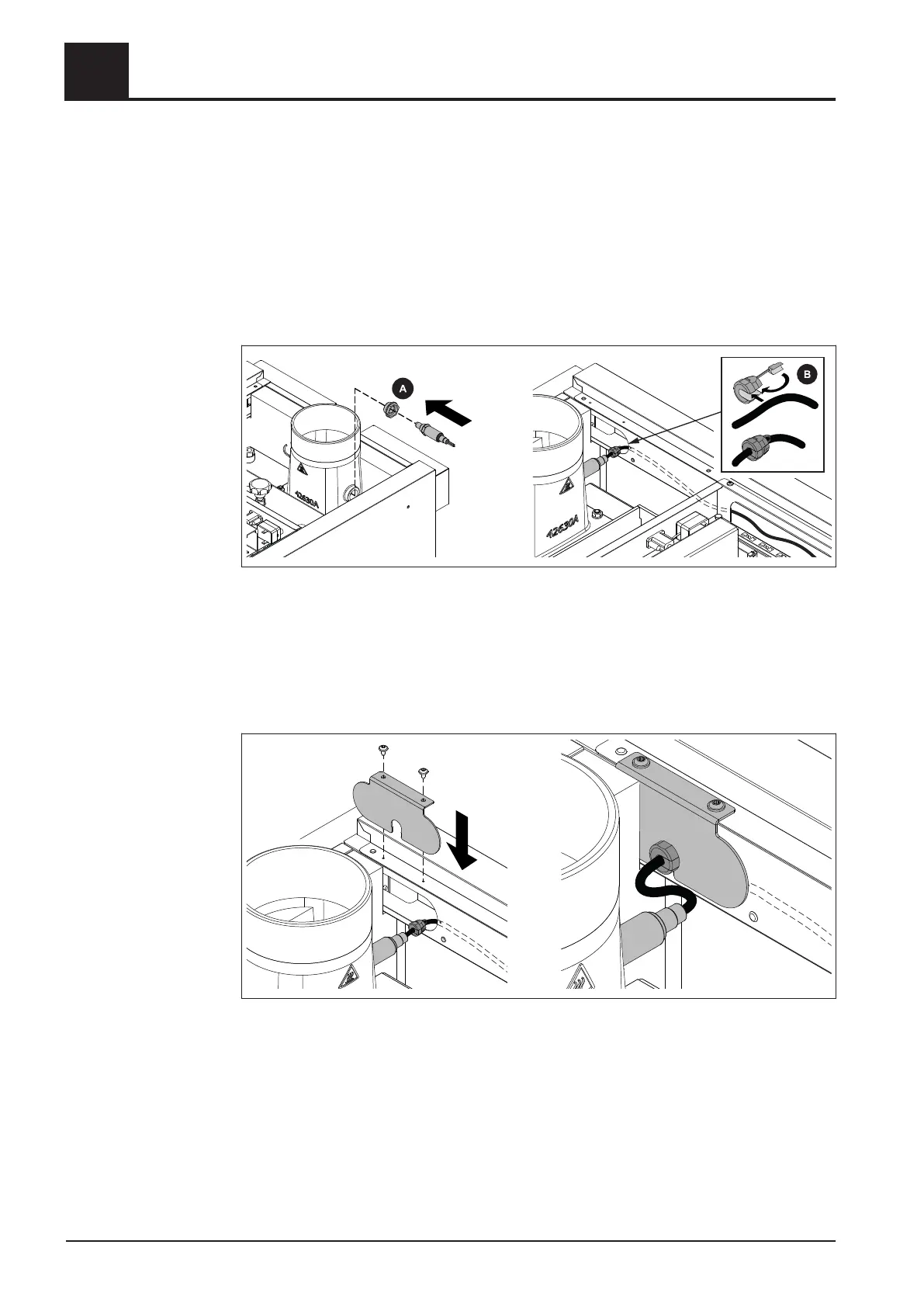

3.5.12 Fit the broadband probe
❒
Unscrew the pre-installed bushing (A) from the broadband probe
❒ Screw the bushing (A) into the flue gas nozzle and gently tighten
❒ Screw the broadband probe into the bushing (A) and gently tighten using an Allen
key (SW 22 mm)
❒
Plug in the extension cable for the broadband probe and run the cable through the
cable duct to the controller box
➥ Tuck any extra cable into the cable duct
❒ Fit the cable in the cable duct with a strain relief.
❒ Push the strain relief into cut-out on the cover plate.
❒
Close the opening of the cable duct with cover plate and secure the cover plate
with two thread forming screws
3
Assembly
Installing the boiler
60 Froling GesmbH | A-4710 Grieskirchen | www.froeling.com
