3.3.3 Space required
FOR SAFE INSTALLATION AND OPERATION CLEARANCES TO COMBUSTIBLES
MUST BE MAINTAINED.

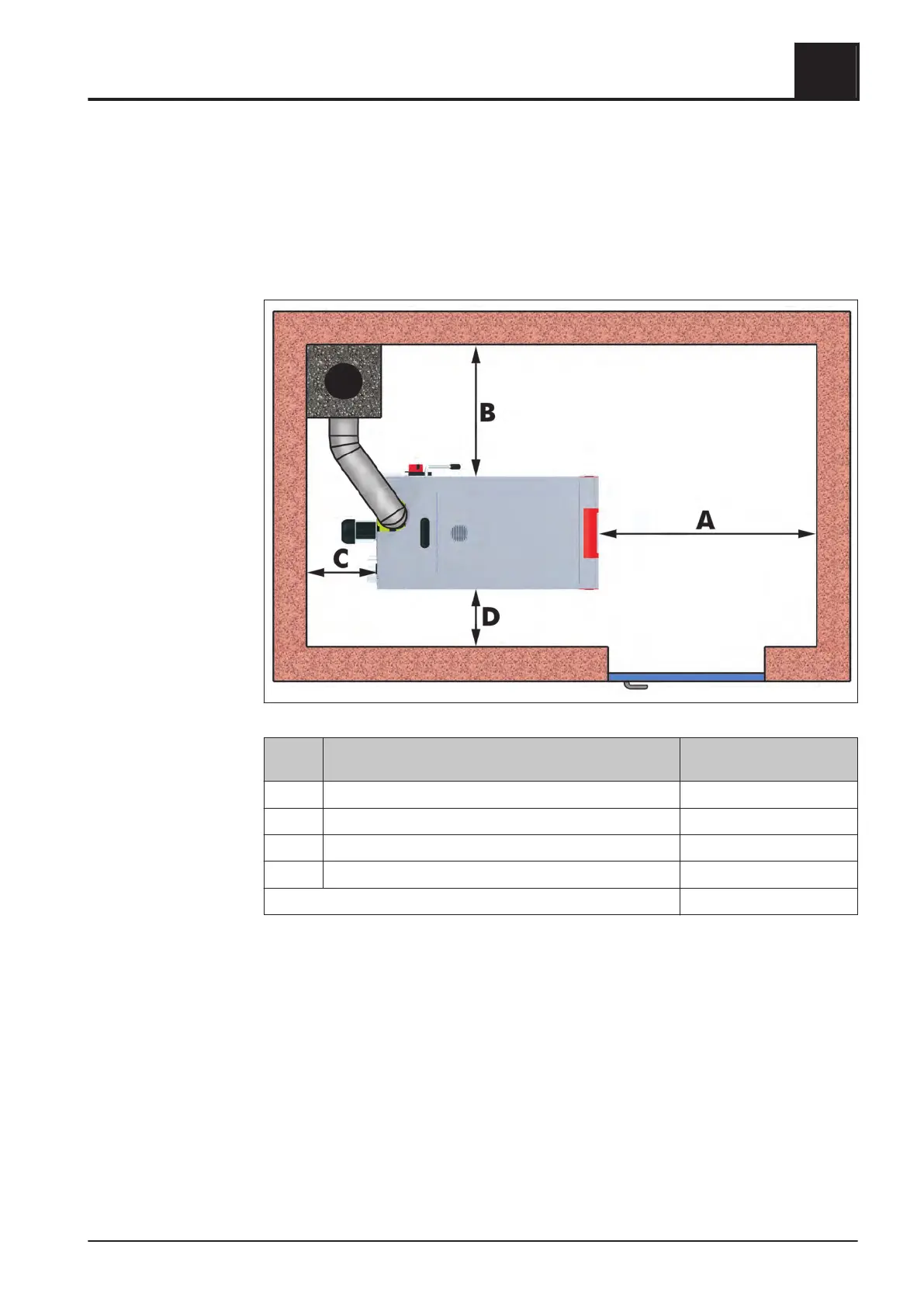

The diagram below shows how much space is required for the system in the boiler
room.
The boiler may only be installed on non-combustible floors with these clearances.
Dimens
ion
Name S3 Turbo
A Distance - front of boiler to wall 36“ (900 mm)
B Distance – side of boiler to wall 32“ (800 mm)
C Distance – back to wall 14“ (350 mm)
D Distance – side of boiler to wall 9“ (250 mm)
Distance between ceiling and boiler 18“ (460 mm)
3.4 Before Installation
3.4.1 Changing door stops (as needed)
The boiler comes with the door stop on the right. If you want to change the side the
door stops are on, proceed as follows.
Changing the stop
The following example using the fuel loading door shows how to change the door stop.
The procedure is the same for changing the stop on the combustion chamber door
and pre-heating chamber door!
❒ Open the fuel loading door
Assembly
3
Setting up in the boiler room
