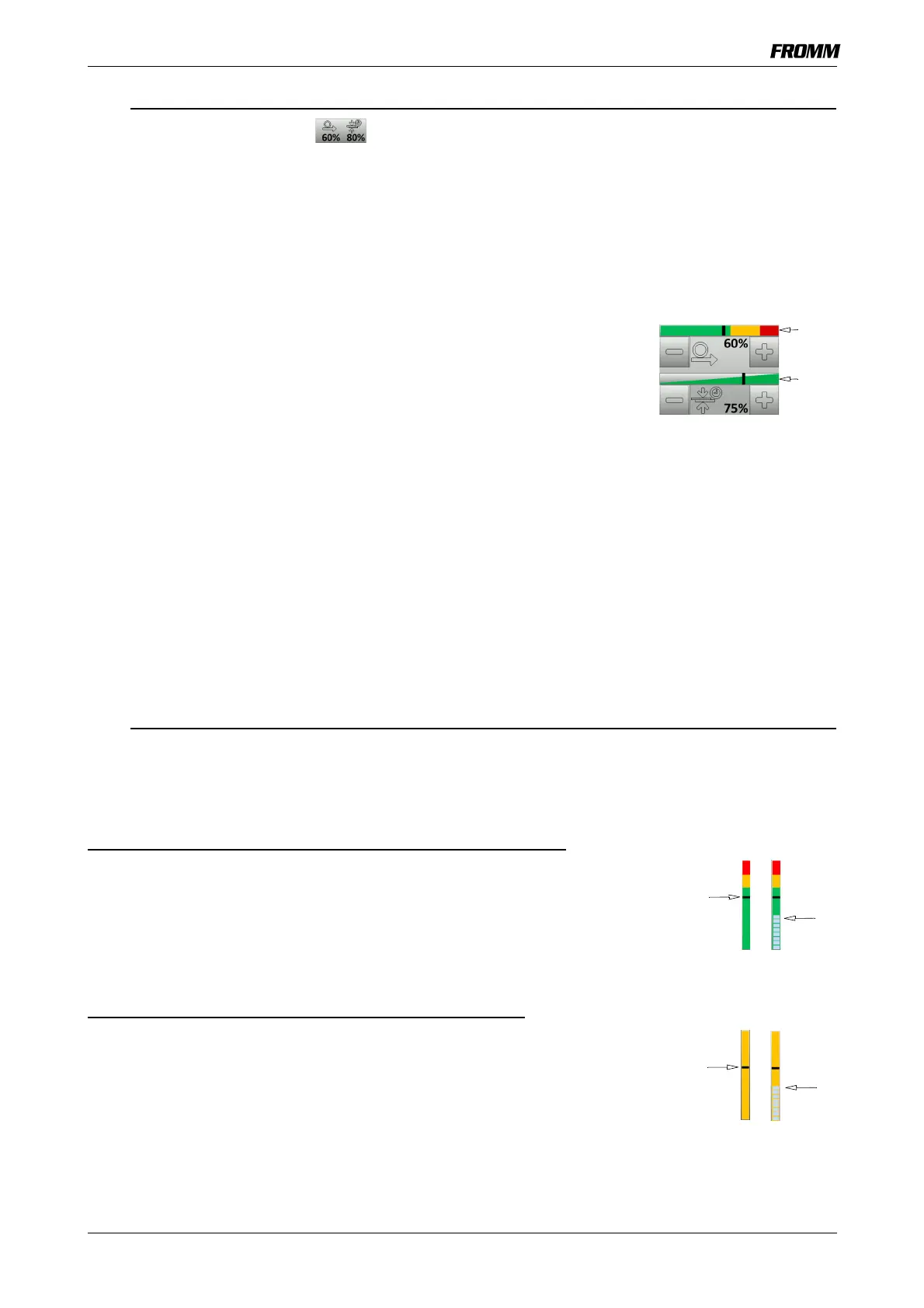

7.2 Set Strap Tension and Welding Time
• In the adjustment menu, tap to open the menu for the strap
tension and welding time setting.
•Or when the key block is disabled in the work menu:
Tap the strap tension and welding time key to open the menu for the
strap tension and welding time setting
- After 4 seconds without an entry - save and return to the work menu.
Strap tension setting
This displays the tension in relation to the maximum tension in %.
• Tap the keys - / + to change the values in increments of 5%.
Welding time setting
This displays the welding time in relation to the maximum tension
welding time in %.
• Tap the keys - / + to change the values in increments of 5%.
Tension bar
See 7.3 Tension Bar
Welding time bar
The black line indicates the currently set welding time.
The new setting can be saved in the strap database as a user-defined
dataset.
See 7.4 Strap Database
7.3 Tension Bar
The black line indicates the set tension,
when this is reached, the tension procedure stops.
The segments indicate the current tension in increments of 5%.
Tension bar color definitions bar for straps with FROMM part numbers
Green - Ideal tension range, optimal energy efficiency with optimal residual tension.
Yellow - Higher tension, without increasing the residual tension.
Red - Tension exceeds the recommended tension range,
danger of injury from excessive tension force.
Tension bar color definitions bar for straps without part numbers
Yellow - The tension bar is yellow.
No data are saved for plastic straps without a FROMM part number.
Danger of injury from excessive tension force.
See 7.4 Strap Database
