Operation manual P328S
© 2018 FROMM Holding AG 25
All rights reserved. Reproduction and duplication - also in extracts - are not permitted.

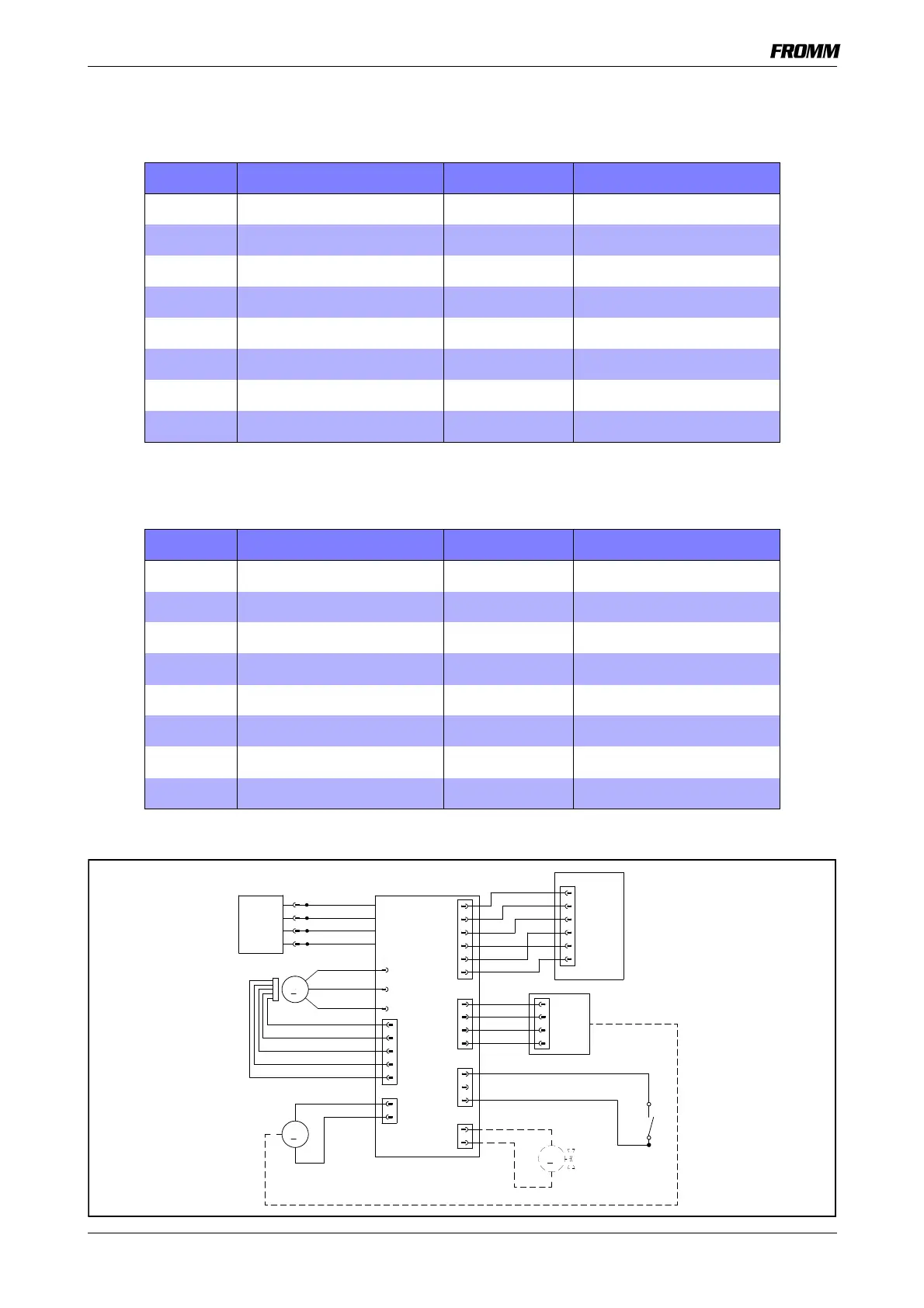

9 Chart of types
P328S
P328S with activated remote module
10 Electric schematic ELS.1126
Item No. Model Strap width Strap thickness
43.2822 P328S/12/0.65-1.05 12.0 mm 0.65-1.05 mm / .026 - .041"
43.2823 P328S/12.7/0.40-0.64 12.7 mm / 1/2" 0.40-0.64 mm / .016 - .025"
43.2824 P328S/12.7/0.65-1.05 12.7 mm / 1/2" 0.65-1.05 mm / .026 - .041"
43.2832 P328S/13/0.65-1.05 13.0 mm 0.65-1.05 mm / .026 - .041"
43.2853 P328S/15.5/0.40-0.64 15.5 mm 0.40-0.64 mm / .016 - .025"
43.2854 P328S/15.5/0.65-1.05 15.5 mm 0.65-1.05 mm / .026 - .041"
43.2861 P328S/16/0.40-0.64 16.0 mm / 5/8" 0.40-0.64 mm / .016 - .025"
43.2862 P328S/16/0.65-1.05 16.0 mm / 5/8" 0.65-1.05 mm / .026 - .041"
Item No. Model Strap width Strap thickness
43.3422 P328S/12/0.65-1.05/W 12.0 mm 0.65-1.05 mm / .026 - .041"
43.3423 P328S/12.7/0.40-0.64/W 12.7 mm / 1/2" 0.40-0.64 mm / .016 - .025"
43.3424 P328S/12.7/0.65-1.05/W 12.7 mm / 1/2" 0.65-1.05 mm / .026 - .041"
43.3432 P328S/13/0.65-1.05/W 13.0 mm 0.65-1.05 mm / .026 - .041"
43.3453 P328S/15.5/0.40-0.64/W 15.5 mm 0.40-0.64 mm / .016 - .025"
43.3454 P328S/15.5/0.65-1.05/W 15.5 mm 0.65-1.05 mm / .026 - .041"
43.3461 P328S/16/0.40-0.64/W 16.0 mm / 5/8" 0.40-0.64 mm / .016 - .025"
43.3462 P328S/16/0.65-1.05/W 16.0 mm / 5/8" 0.65-1.05 mm / .026 - .041"
18VDC
red
-
+
red
M3
1
3
red
blue
1
2
(-)
(+)
M2
U
V
W
yellow
violett
brown
Hall3
Hall2
Hall1
GND
+5V
5
4
3
2
1
M1
2
1black
red
(+)
(-)
optional Fan
blackblack
blue
DC
DP
Display
1
2
3
4
5
6
black
black
black
black
black
red
UB
1(C)
4(N0)
1
2
3
4
black
black
black
red
Hall-
circuit
board
