Assembly advise:
• During assembling move the strap guide plate P32.8118 downwards against the holding gripper.
• Pay attention to the fitting position of the cutter (see drawing).
• Safe the screws N1.1305 with Loctite 222.
• Lubricate the rocker and the bolt P32.1028 in the area of the welding gripper with Klüber Isoflex NBU 15.
• Lubricate the balls, ball cage and the running surface of the balls on the welding gripper with Klüber Isoflex
Alltime SL2.
• Lubricate the cutter and the driver with Mobilux EP2.
11.3 Type dependent wearing parts

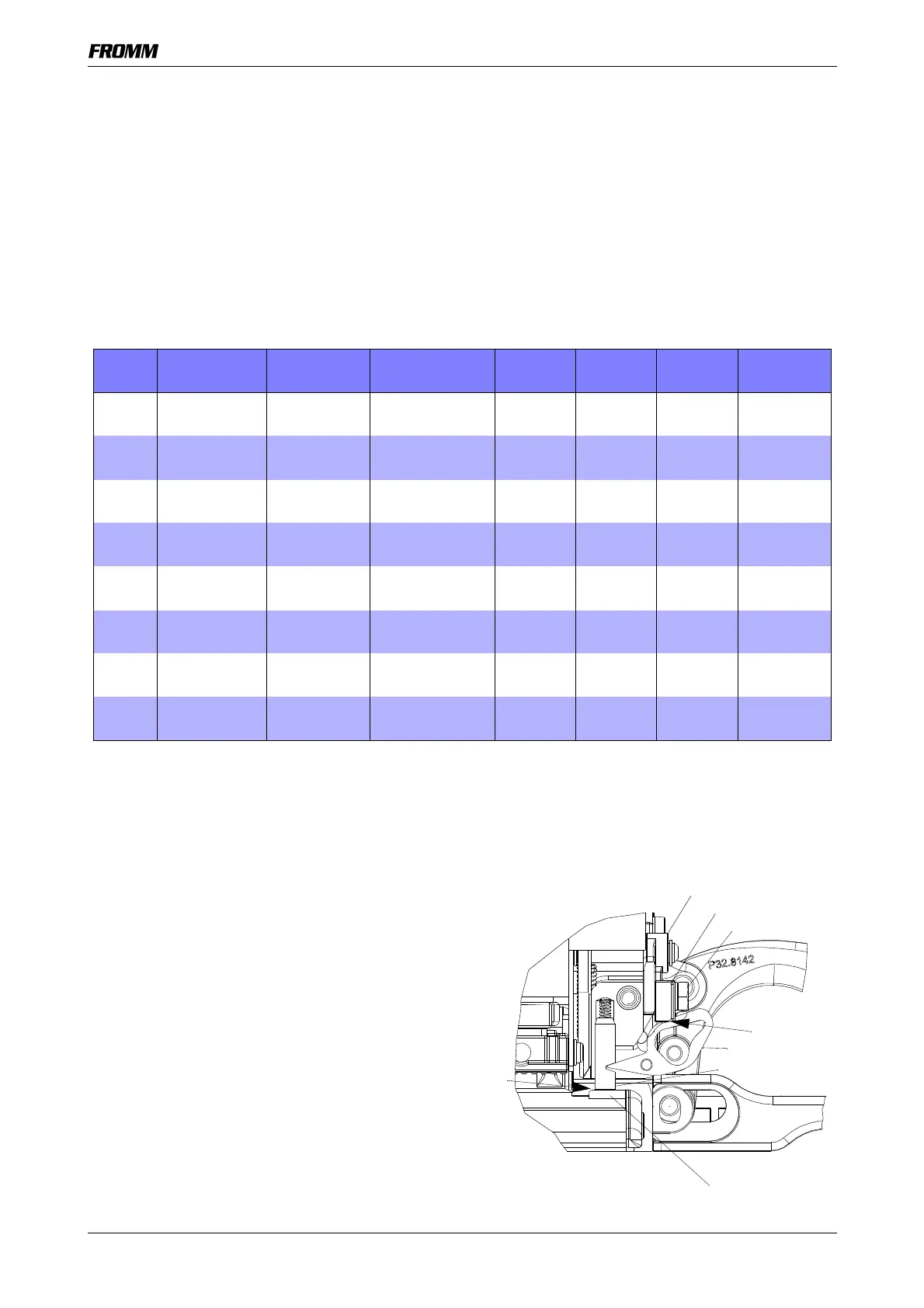

11.4 Adjustment of the coupler
The coupler is adjusted in our works.
In case of replacing the seesaw lever, the coupler or the lever body, the coupler has to be readjusted.
Procedure as follows:
The battery is removed from the tool.
The coupler is fitted into the tool.
• Loosen screw N1.1553.
• Displace thrust piece, so that it touches the two
seesaw levers without moving them.
• Re-tighten screw N1.1553.
Control:
The thrust piece must touch the seesaw levers (X1).
Both guide pins must sit on the welding stop
gripper (X2).
Tool
Item No
Strap width Strap thickness Tensioning wheel
Item No.
Gripper
Item No.
Gripper
Item No.
Gripper
Item No.
Cutter
Item No.
43.2822
43.3422
12.0 mm
0.65-1.05 mm /
.026 - .041"
P35.3203 P32.8109 P32.8110 P32.8111 P35.3214
43.2823
43.3423
12.7 mm / 1/2"
0.40-0.64 mm /
.016 - .025"
P35.3202 P32.8112 P32.8113 P32.8114 P32.8197
43.2824
43.3424
12.7 mm / 1/2
"
0.65-1.05 mm /
.026 - .041"
P35.3203 P32.8109 P32.8110 P32.8111 P35.3214
43.2832
43.3432
13.0 mm
0.65-1.05 mm /
.026 - .041"
P35.3203 P32.8109 P32.8110 P32.8111 P35.3214
43.2853
43.3453
15.5 mm
0.40-0.64 mm /
.016 - .025"
P35.3202 P32.8112 P32.8113 P32.8114 P35.3214
43.2854
43.3454
15.5 mm
0.65-1.05 mm /
.026 - .041"
P35.3203 P32.8109 P32.8110 P32.8111 P35.3214
43.2861
43.3461
16.0 mm / 5/8
"
0.40-0.64 mm /
.016 - .025"
P35.3202 P32.8112 P32.8113 P32.8114 P35.3214
43.2862
43.3462
16.0 mm / 5/8"
0.65-1.05 mm /
.026 - .041"
P35.3203 P32.8109 P32.8110 P32.8111 P35.3214
N1.1553
X1
X2
Coupler
Thrust piece
Seesaw lever
Guide pin
Welding stop
gripper
