11 Exchange of wearing parts

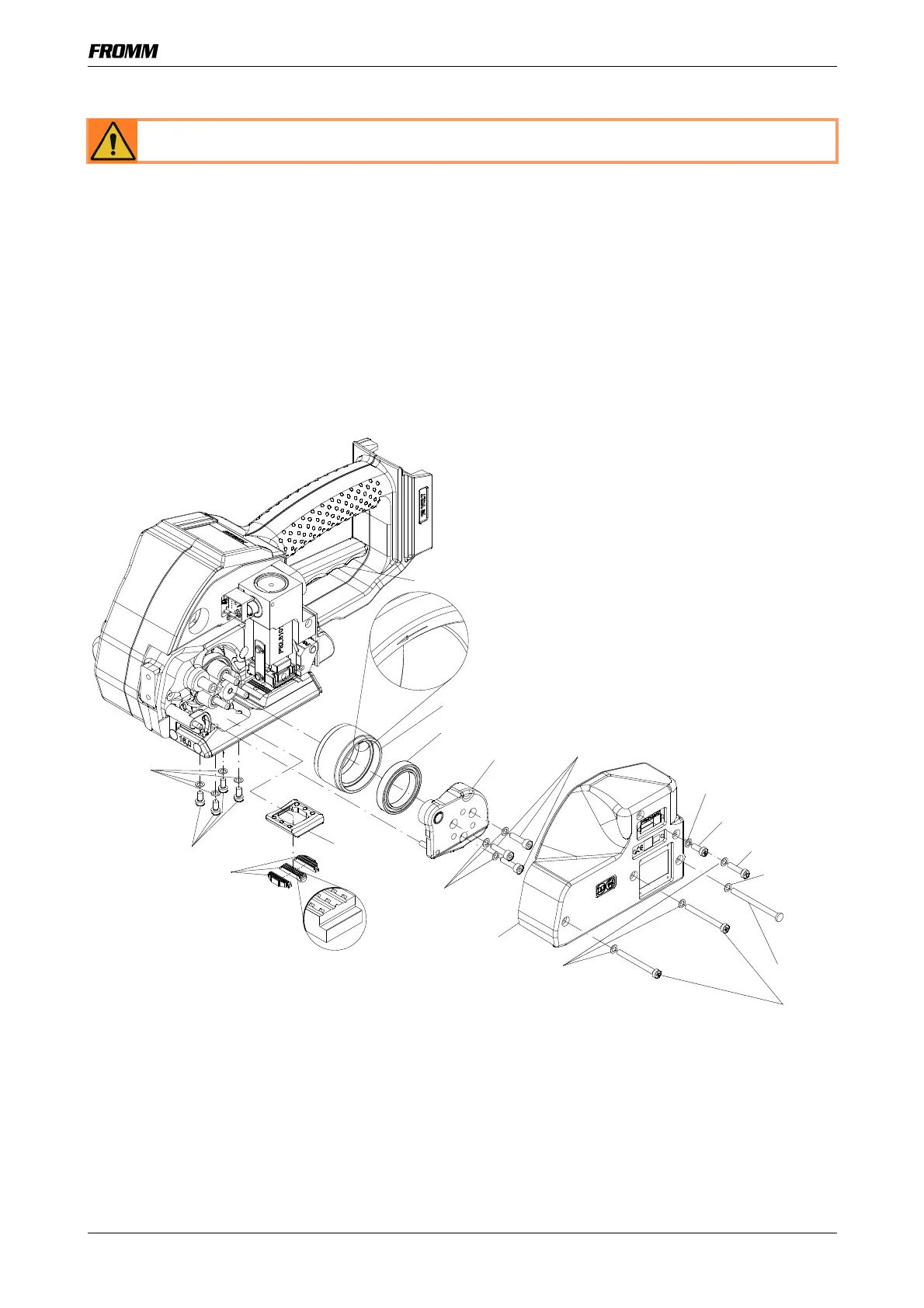

11.1 Exchange of tensioning wheel and grippers
Disassembling
• Unscrew cover P32.0235 and remove it;
• Unscrew end cover P32.0222 and remove it;
• Raise tension wheel by lifting the handle lever P32.8142;
• Remove the tensioning wheel together with the bearing N3.1172 from the tool;
• Unscrew the holder P32.8108 and remove it from the body;
• Remove the grippers from the body.
* See 11.3 Type dependent wearing parts
Assembling in opposite order.
Assembly advise:
• Lubricate the internal toothing of the tensioning wheel with Molykote BR2 plus.
• Observe the position of the tensioning wheel. The direction of rotation of the tensioning wheel is marked at
the front of the tensioning wheel (see drawing).
• Observe the position of the grippers (see drawing).
• Safe the screws N1.1305 with Loctite 222.
WARNING Inadvertent activation of the tool may result in injury. Remove always the battery
from the tool before starting maintenance works.
N3.1172
 N1.1305
N1.6504
P32.0222
N1.1928
N1.6504
N1.1973
N1.1196
P32.8108
 Molykote BR2 plus
 Loctite 222
P32.0235
P32.8142
N1.1943
N1.6504
N1.6504
N1.6504
Grippers*
Tensioning wheel
* 
N1.1934
