PlasmaModule 10 can be operated with the following power sources:
- MagicWave 4000 / 5000
- MagicWave 2600 / 2600 CEL / 3000
- TransTig 2600 / 2600 CEL / 3000
- TransTig 4000 / 5000
NOTE! Select the appropriate cooling unit for the existing plasma welding torch
and the application.
NOTE! With plasma welding the duty cycle of the TIG power source is shor-
tened depending on the application.
Power sources
for plasma wel-
ding
The principle of
plasma welding

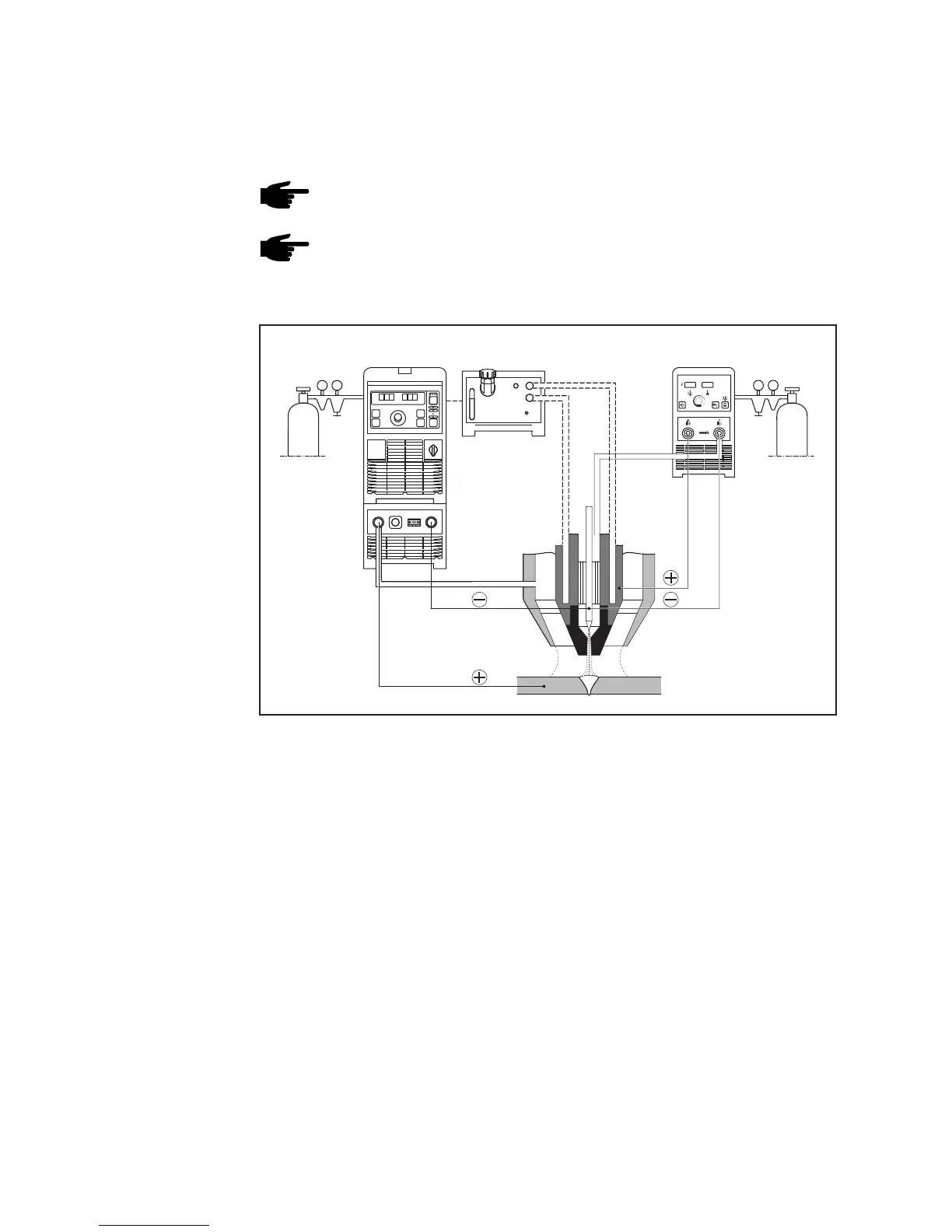

Fig. 2 The principle of plasma welding
(1) Shielding gas pressure regulator
(2) TIG power Source
(3) Cooling unit
(4) Digital PlasmaModule 10 with digital plasma gas control
(5) Plasma gas pressure regulator
(1)
(4)(3)(2)
(5)
