Fronius PlasmaModule 10 User Manual

7
Advantages of
plasma welding
over TIG welding

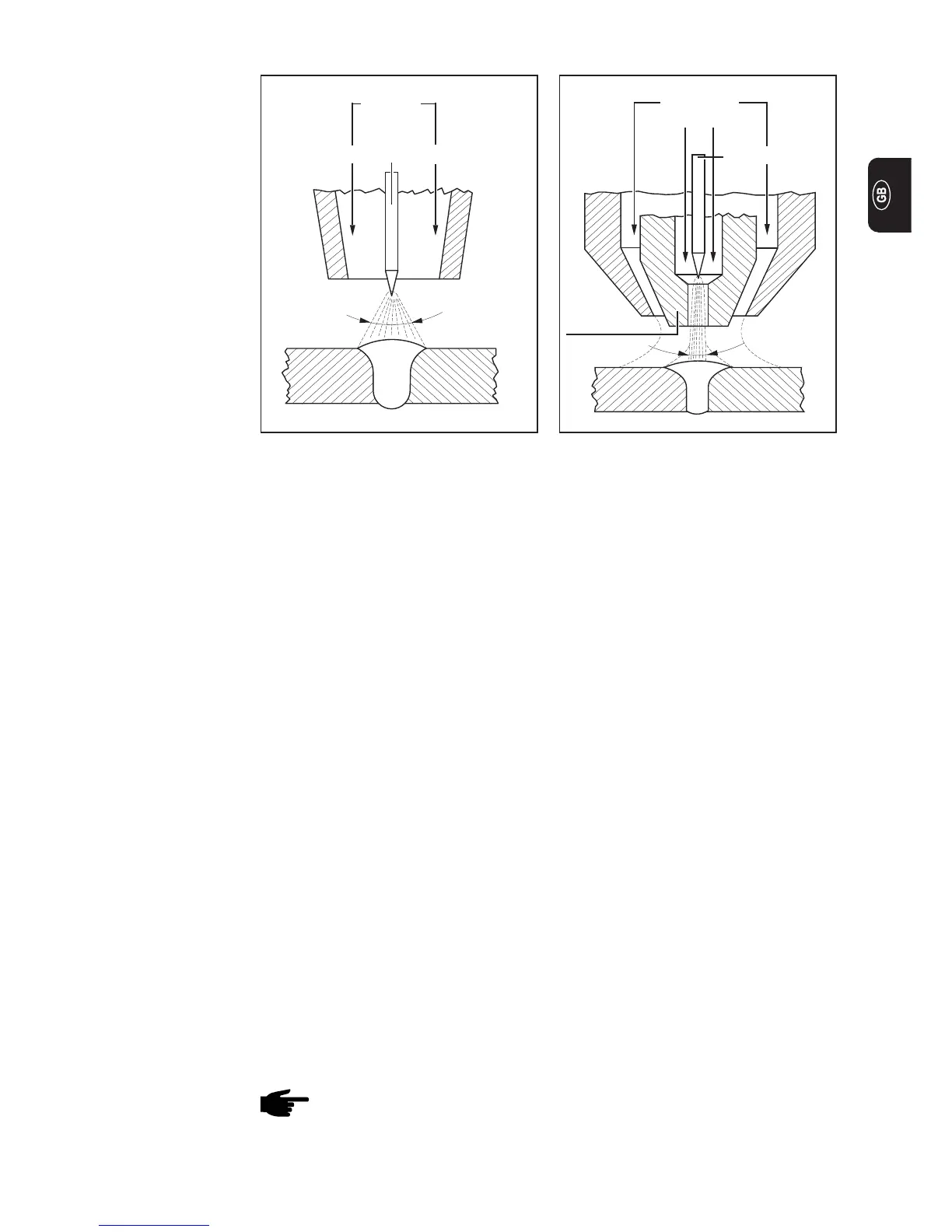

Fig. 3 TIG arc Fig. 4 Plasma arc
~ 45°
~ 5°
- Low component distortion thanks to the concentrated arc
- Smaller heat-affected zone
- Arc can be relatively long
- Higher temperature in the arc: Plasma up to 25,000°C (45,032°F) - TIG up to
10,000°C (18,032°F)
- No time-consuming seam preparation needed (e.g. square butt joint with material
thickness up to 10 mm)
- Higher welding speed
- Impossible for the tungsten electrode to dip into the weld pool
- Longer torch service life (with optimum torch cooling)
Tungsten electrode
Tungsten electrode
Shielding
gas
Shielding gas
Plasma gas
Plasma nozzle
Application areas The digital PlasmaModule 10 is used in automated and manual applications, for example:
- in the automotive and component supply industry,
- in the manufacture of special vehicles and construction plant
- in pipeline and equipment construction
- in plant, container, machine and steel engineering
- in rail vehicle construction and shipbuilding
- in applications requiring the highest quality standards
- for welding materials with a sheet thickness of 0.4 - 10 mm (0.02 - 0.39 in.)
PlasmaModule 10 is generator-compatible and exceptionally sturdy in operation, thanks
to the protected controls and a powder-coated housing.
Options and
accessories
- PTW 1500: Plasma manual welding torch
- Robacta PTW 1500: Plasma robot welding torch
- PMW 350: Plasma welding torch for keyhole welding
- PlasmaModule 10 - MagicWave / TransTig interconnecting hosepack
- Air filter
- PlasmaModule holder
- PlasmaModule flow watch dog (for installation in the PlasmaModule holder)
NOTE! Where PlasmaModule 10 is operated on the PlasmaModule holder, the
PlasmaModule flow watchdog option is also necessary.
