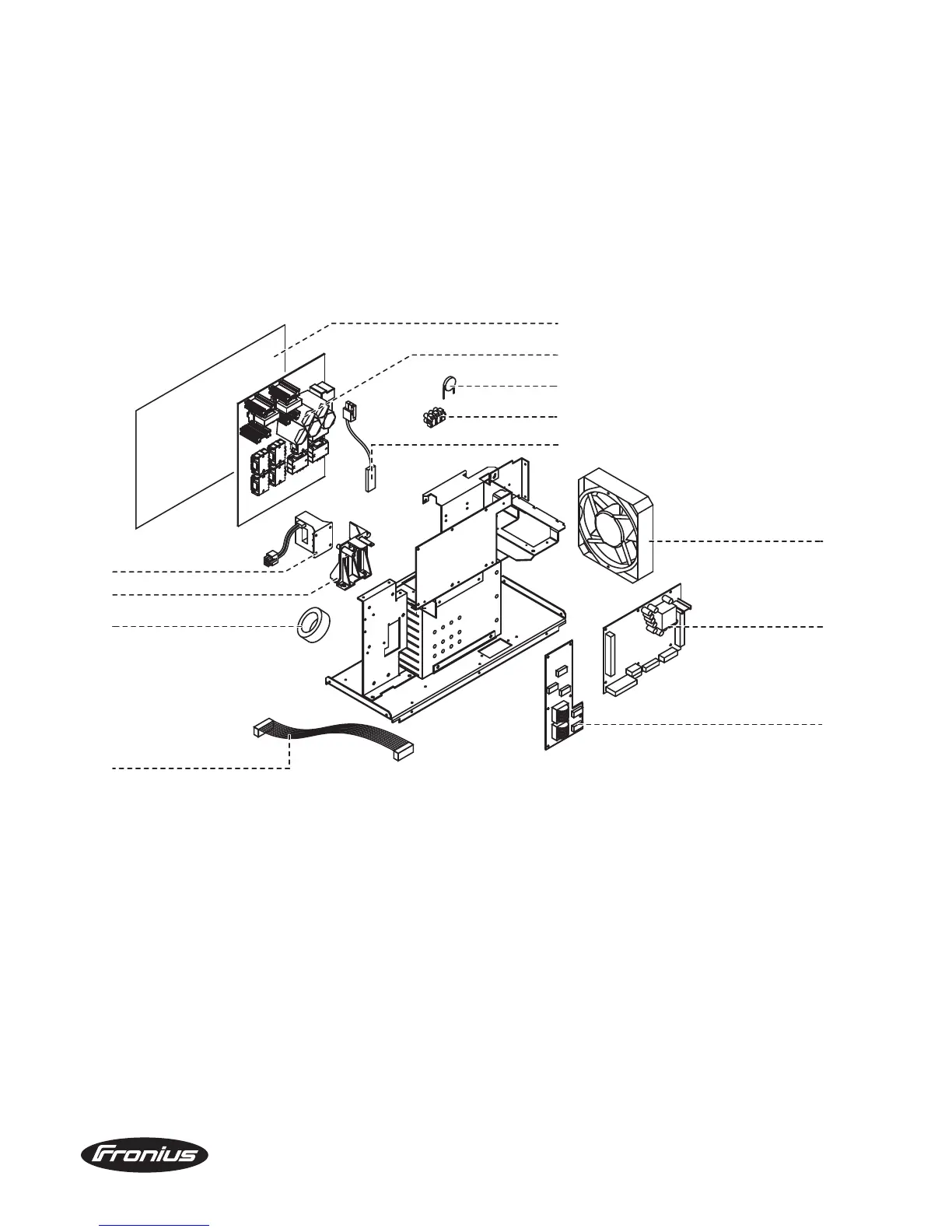

Ersatzteilliste / Spare parts list / Listes de pièces de rechange / Lista de repuestos / Lista de pecas sobresselentes / Lista dei Ricambi

PlasmaModule 10

2/2

el_fr_st_pl_01118 032006

UST2

BPS

HFF22

4,070,960,Z - UST2C

4,070,812,Z - HFF22

41,0009,0057

4,070,798,Z - BPS17

43,0004,1122 - 26pol.

41,0001,0627

42,0405,0420

43,0001,1138

43,0006,0134

41,0012,0080

43,0001,0600

42,0300,7085

Operating Instructions1
Safety Rules5
Ambient Conditions6
Control Panel17
Table of Contents19
General Remarks21
- Device Concept21
- Explanation of Terms Used21
- The Principle of Plasma Welding22
- Power Sources for Plasma Welding22
- Advantages of Plasma Welding over TIG Welding23
- Application Areas23
- Options and Accessories23
Controls and Connections24
- General Remarks24
- Housing Front Panel24
- Housing Rear Panel26
Before Commissioning27
- General Remarks27
- Utilisation in Accordance with „Intended Purpose27
- Setup Regulations27
- Mains Connection27
- Generator-Powered Operation28
- Digital Plasma Gas Control28
Installation29
- General Remarks29
- Connecting the Interconnecting Hosepack to the TIG Power Source29
- Connecting the Plasma Welding Torch30
- Connecting the Shielding Gas and Plasma Gas31
- Connecting Plasmamodule 10 and TIG Power Source to the Robot Control31
Commissioning32
- General Remarks32
- Notes on Operation32
- Plasma Welding Process33
The Setup Menu34
- General Remarks34
- Gas Setup34
- Setup Menu35
- Setup Menu Level 2 (2Nd)35
- Correction Factors37
Signals for Robot Welding38
- General Remarks38
- Overview38
- Signal Waveform39
- Application Example39
- Important Information for Robot Operation40
Troubleshooting41
- General Remarks41
- Service Codes Displayed41
- Troubleshooting43
Care, Maintenance and Disposal44
- General Remarks44
- Every Start-Up44
- Every 2 Months44
- Every 6 Months44
- Disposal44
Manual Mode" Configuration45
Configuration Examples45
Manual Mode" Configuration - List of Components46
Robot Mode" Configuration47
Robot Mode" Configuration - List of Components48
Technical Data49
- General Remarks49
- Exploded View50
