Fronius Robacta Reamer - Adjusting the Position of the Cleaning Motor (with Standard Brush Head); Adjusting the Position of the Cleaning Motor

39
EN

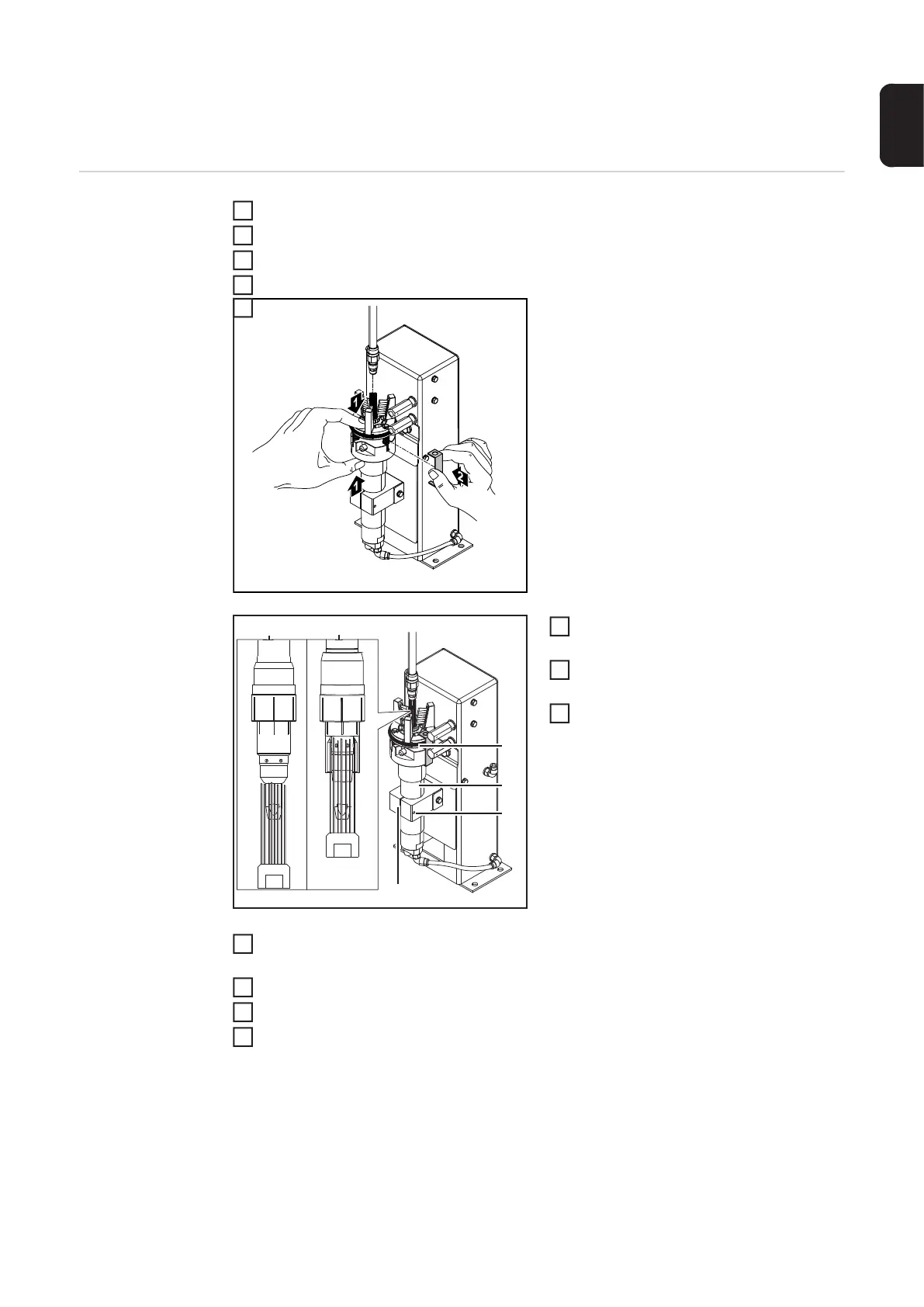

Adjusting the position of the cleaning motor (with
standard brush head)
Adjusting the po-
sition of the
cleaning motor
Remove the protective covering from the cleaning device
Ensure that the lifting device (1) is in its lowest position
Move the welding torch to the cleaning position
Remove the gas nozzle from the torch body
1
Loosen screw (2) on the lifting device
(1)
Manually push the lifting device (1) into
its highest lift position and hold in place
Manually push the cleaning motor (3)
and brush head (4) into the cleaning
position
- see diagram (5) for welding torch
with spatter guard
- see diagram (6) for welding torch
with insulating sleeve
Fix the cleaning motor (3) in this position in the lifting device (1) - tighten the screw (2)
on the lifting device (1)
Fit the gas nozzle to the torch body
Press brush head together and pull off bracket
Fit the protective covering to the cleaning device in its original position
1
2
3
4
5
(5)
(6)
(2)
(1)
(3)
(4)
6
7
8
9
10
11
12
