Fronius TransTig 170 Service Manual

19
EN-US

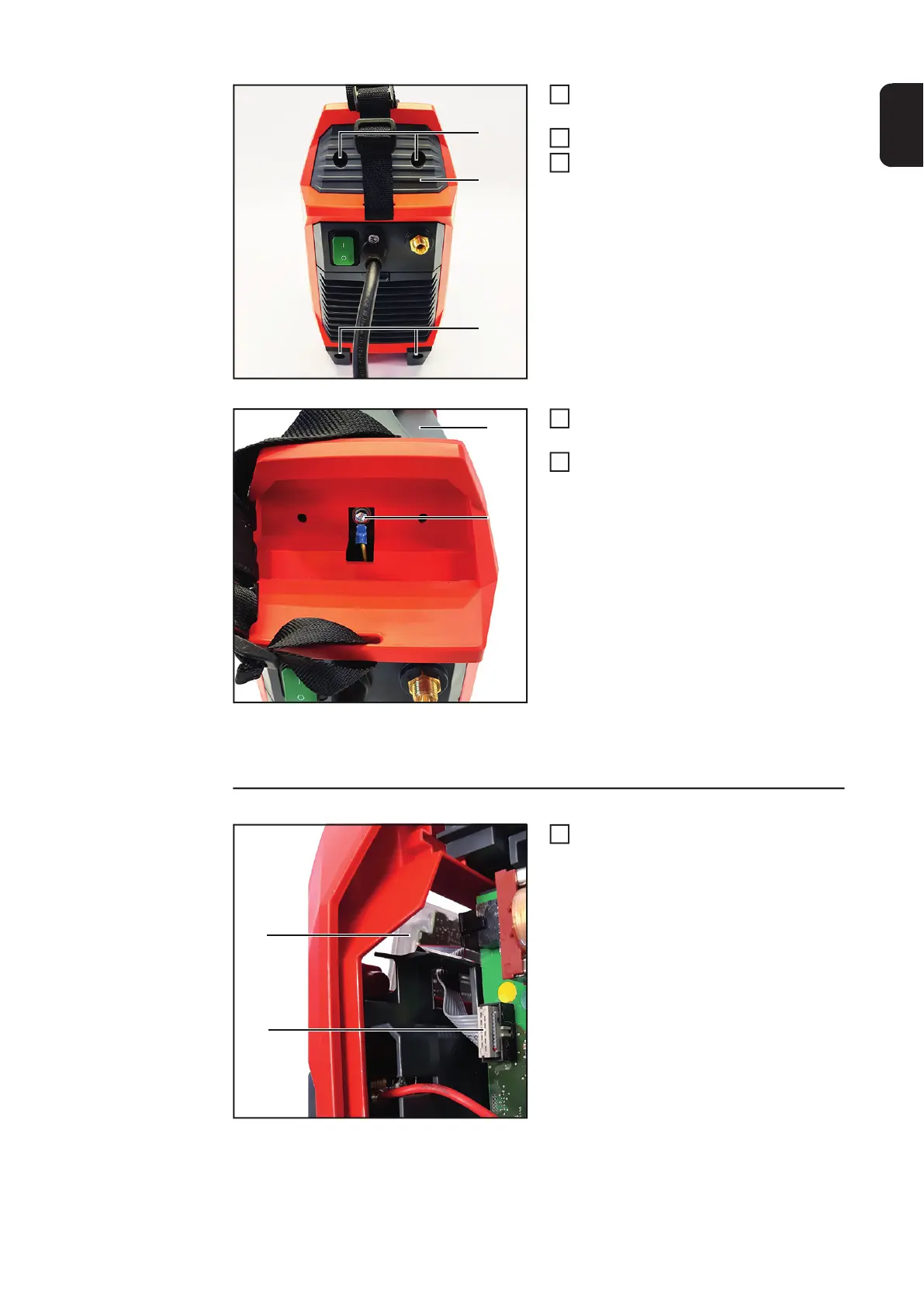

Remove 4 5x18 TX25 screws (4) and
remove the housing feet.
Remove cover (5).
Disconnect the carrying strap.
Remove the M4x8 TX20 screw (6)
from the grounding cable.
Remove the casing (7).
IMPORTANT!
The handle is attached to the casing via 4 5x10 screws.
Disconnect the ribbon cable (8) from
the control panel (9) and remove the
control panel.
(4)
(5)
(2)
(4)
4
5
6
(7)
(6)
7
8
(9)
(8)
9
