Fronius TransTig 170 Service Manual

25
EN-US

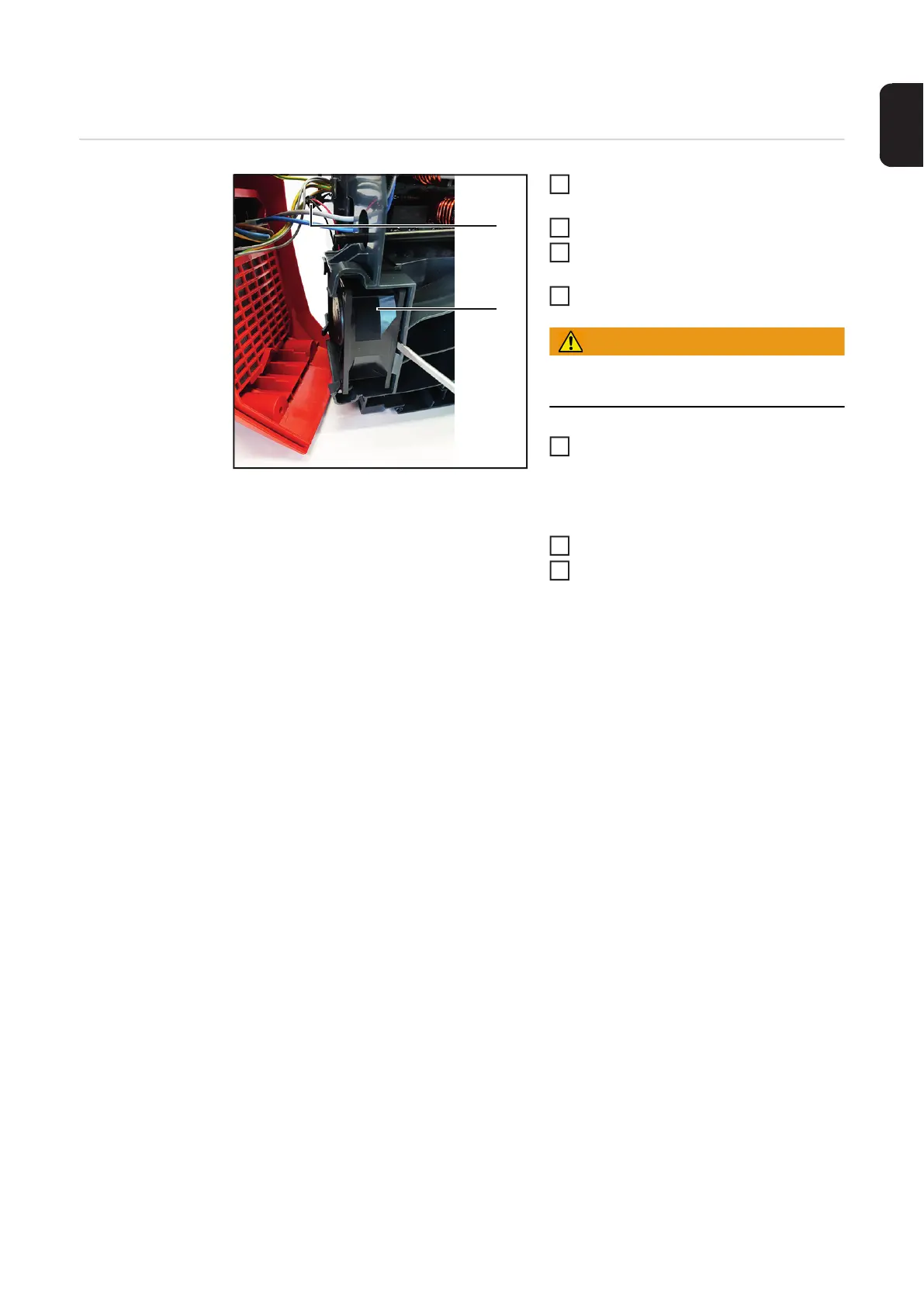

Replacing the Fan
Replacing
the fan
Open housing as described in chapter
"Opening the housing".
Disconnect the fan cable (1).
Pry the fan (2) out of the bracket using
a flat-blade screwdriver.
Remove fan (2).
WARNING!
Before inserting the fan, observe the in-
stallation direction.
Insert new fan (2):
- the arrow on the fan should point
forward.
- the fan cables must be in the up-
per left corner and face outward.
Connect fan cable (1).
Close housing as described in chapter
"Closing the housing".
(1)
(2)
1
2
3
4
5
6
7
