Fronius TransTig 170 Service Manual

21
EN-US
Install 6 M4x8 M4x12 screws (7).
Tightening torque = 2.1 Nm.
Install grounding cables on the spacer (4) with M4x8 TX20 screw (5).
Tightening torque = 1.5 Nm.
Install transformer lines with 4 screws (1) on the spacer (4) with screw (5).
Tightening torque = 3.0 Nm.
Route the transformer lines (6) through the function carrier to the other side.

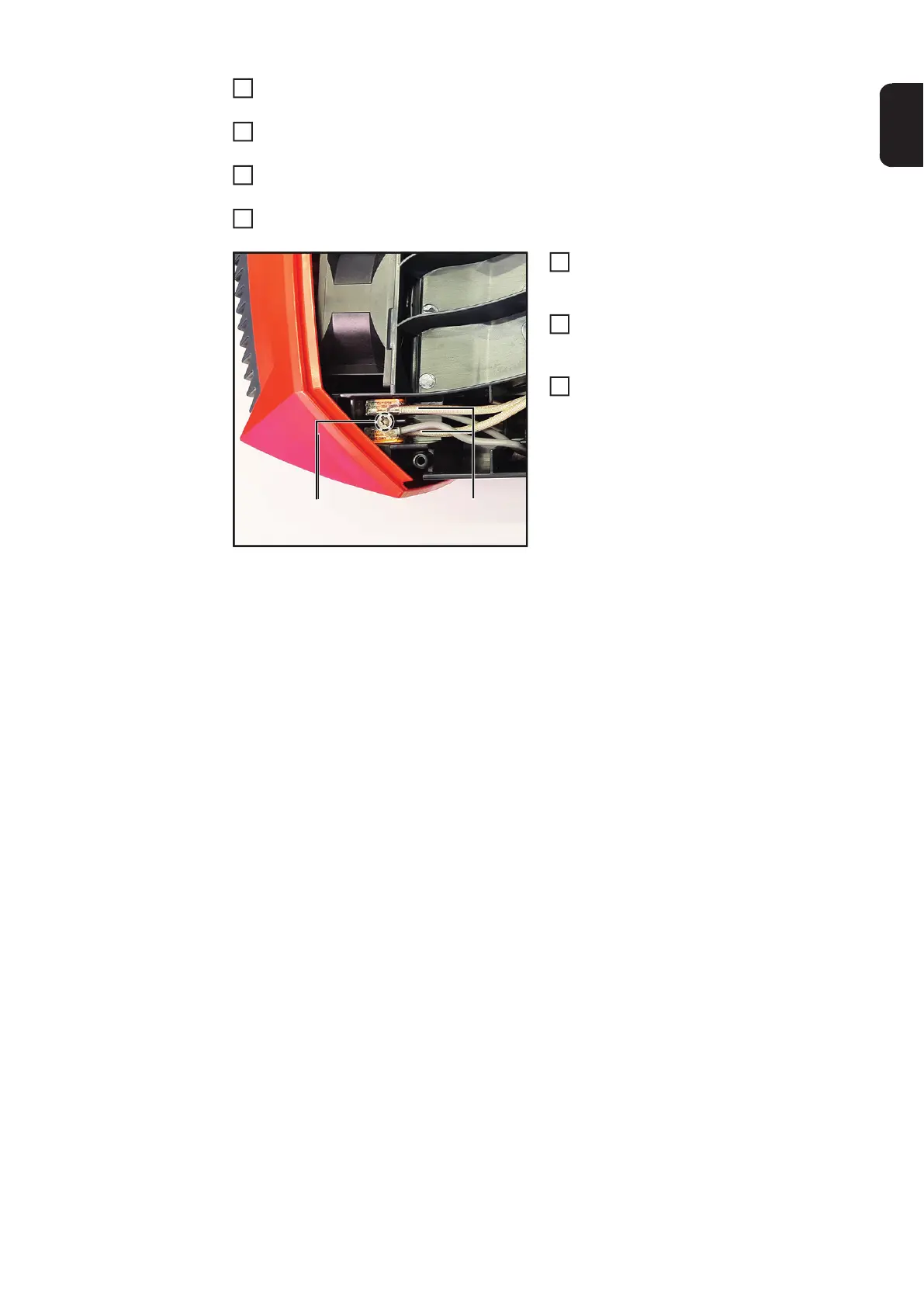

Install the transformer lines (7) into the
terminals and insert the terminals into
the function carrier as shown.
Secure terminals with 4x20 TX20
screw (8).
Tightening torque = 2.1 Nm.
Close housing as described in chapter
"Closing the housing".
6
7
8
9
(8) (7)
10
11
12
