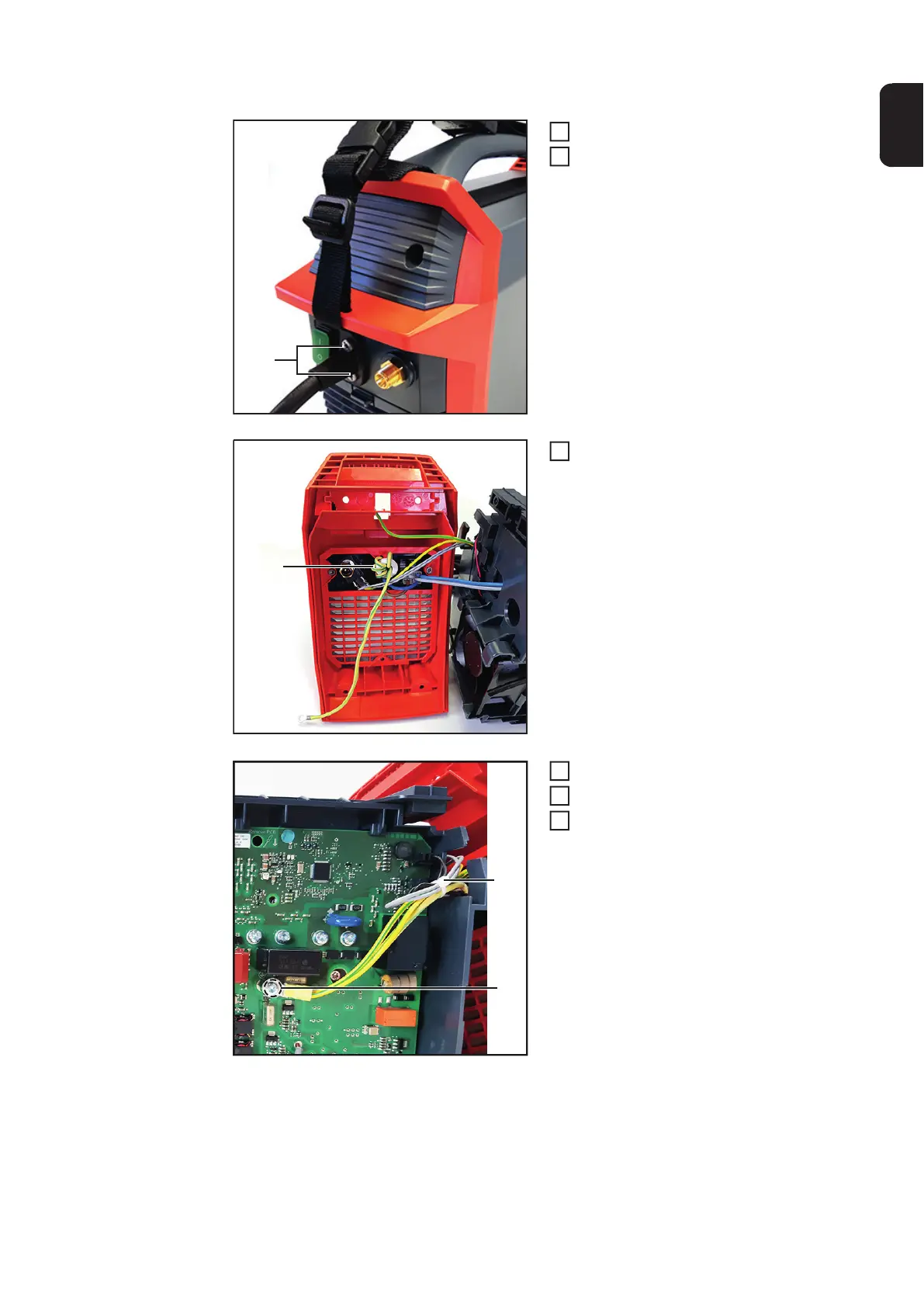

Installing the mains cable:
Thread in the mains cable.
Install 2 M5x18 TX25 screws (1). Tight-
ening torque 1.5 Nm.
Install the ferrite ring (1) on the ground
wire with 4 turns.
Install the M4x8 TX20 screw (2).
Install cable ties (1).
Close housing as described in chapter
"Closing the housing".
