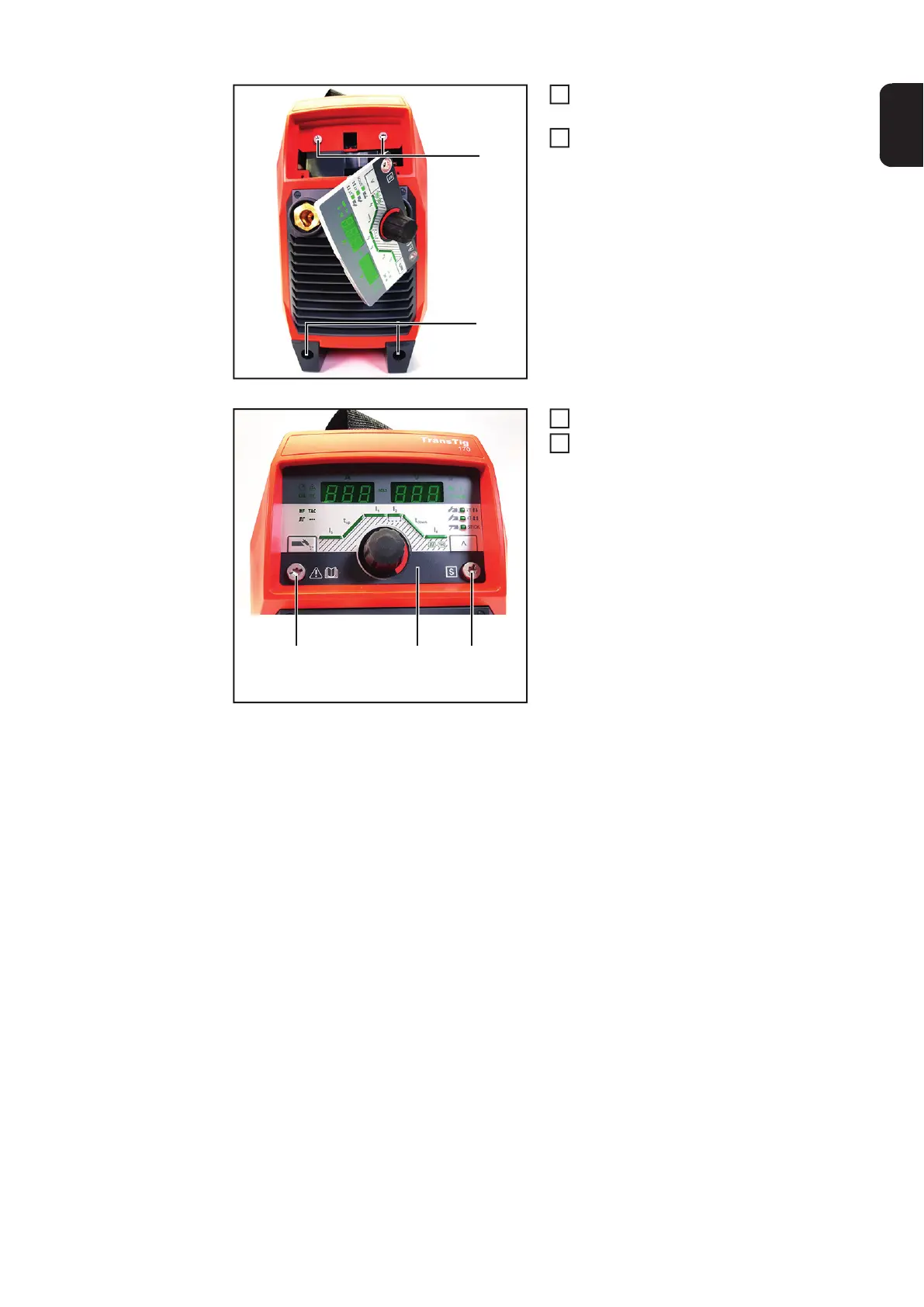

Install 2 5x18 TX25 screws (8).
Tightening torque 2.7 Nm.
Insert the device feet (9) and install 2
5x18 TX25 screws.
Tightening torque 3.0 Nm.
Insert the control panel (11).
Install the control panel using 2 5x18
TX25 screws (10).
Tightening torque = 2.7 Nm.
(9)
(8)
6
7
(10)(10) (11)
8
9
