Articulated torch bodies

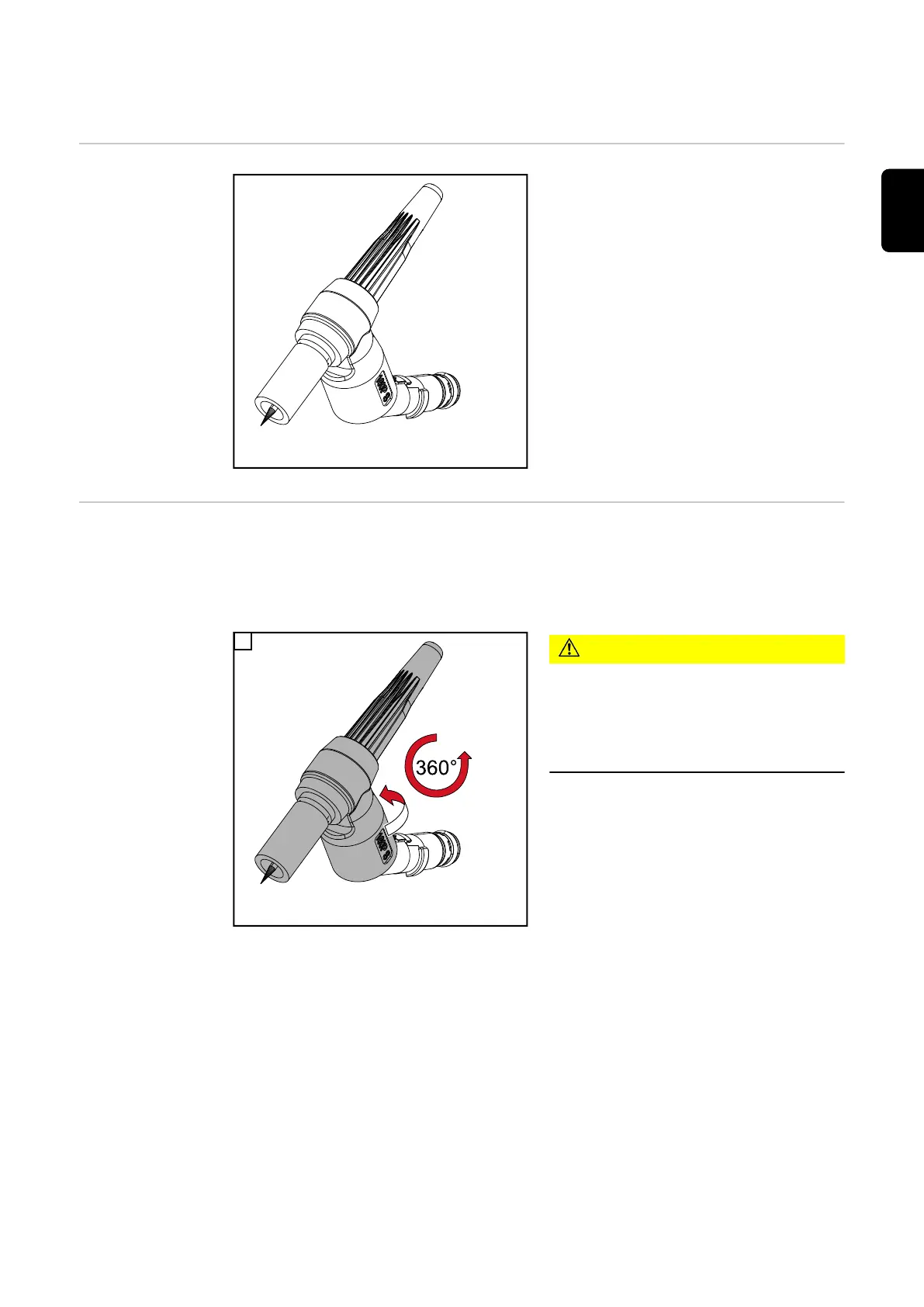

Device concept The articulated torch bodies can be indivi-
dually adapted to a wide variety of situa-
tions and applications, for example in the
case of restricted part accessibility or diffi-
cult welding positions.
Due to the articulated joint, the welder's
hand is closer to the torch handle and thus
to the torch triggers.
With articulated welding torches, no mate-
rial weakening occurs during setup.
Assembling and
setting up an arti-
culated torch bo-
dy
The articulated torch body is assembled in the same way as a conventional torch body -
see Fitting the torch body on page 67.
Twist the front part of the articulated torch body to adapt it to the job in hand:
1
CAUTION!
Danger if the articulated torch body is
screwed out too far.
The torch body may be damaged.
▶
Unscrew the front part of the articula-
ted torch body by no more than 1 turn.
