Product Overview
2

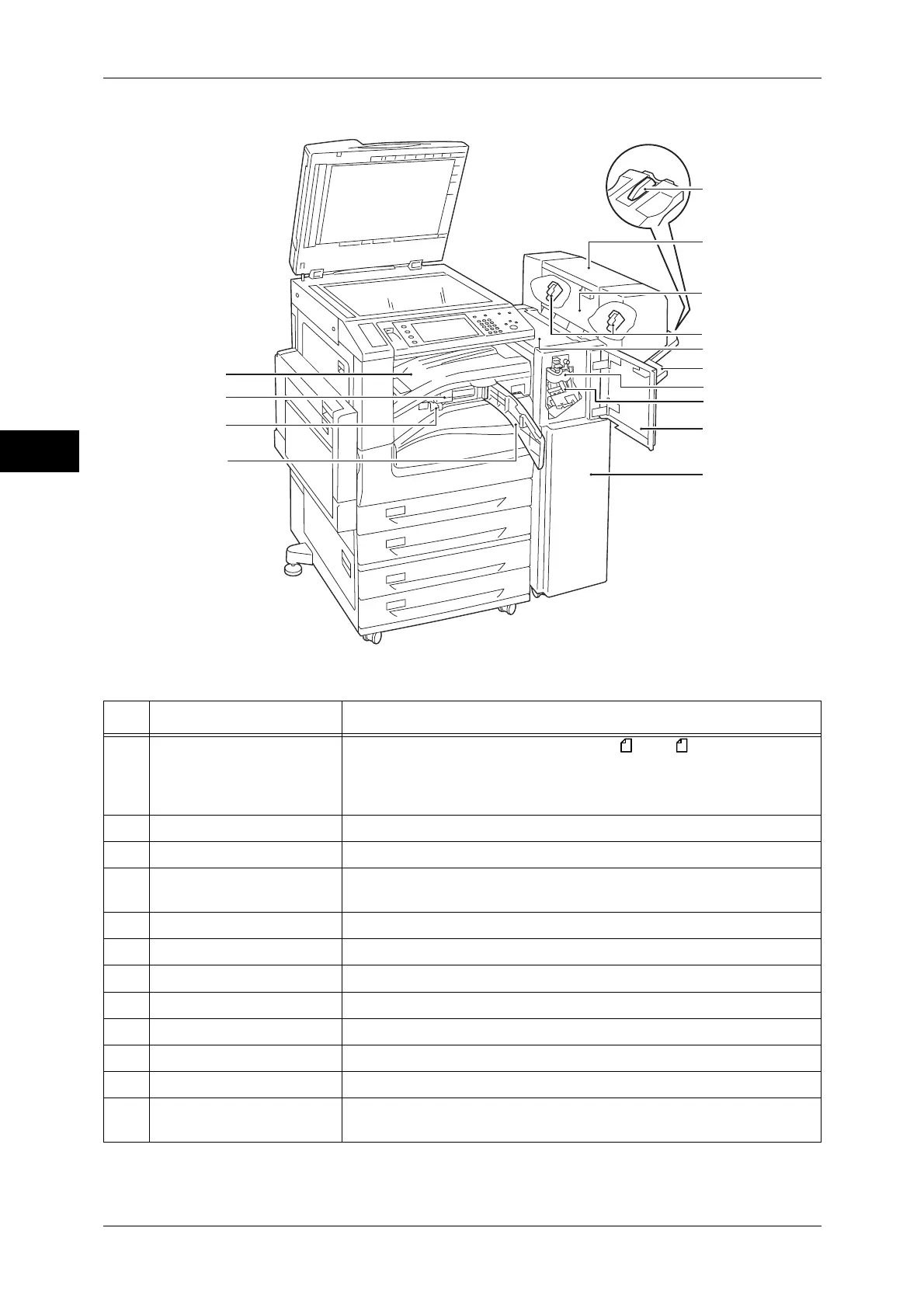

îš„Finisher-B1 (optional)
No. Component Function
1 Tray attachment Install this attachment when delivering A4 or B5 paper to the
finisher tray without stapling.
For more information, refer to "Installing the Tray Attachment on the Finisher-B1"
(P.63).
2 Booklet unit (optional) Staples creased outputs.
3 Booklet unit side cover Open this cover when replacing the booklet staple cartridge.
4 Booklet staple cartridge Contains staples. Remove this cartridge when replacing or adding
staples, or clearing staple jams.
5 Top cover Open this cover to clear paper jams.
6 Finisher tray Stapled or creased outputs are delivered here.
7 Creaser unit Creases outputs in half.
8 Staple cartridge Contains staples.
9 Front cover Open this cover when clearing paper jams or replacing staples.
10 Finisher-B1 (optional) Staples copies or prints.
11 Front transport cover Open this cover when discarding punch scraps.
12 Hole-punch waste
container
Collects scraps from the puncher.
