3 Product Overview
64
Product Overview
3

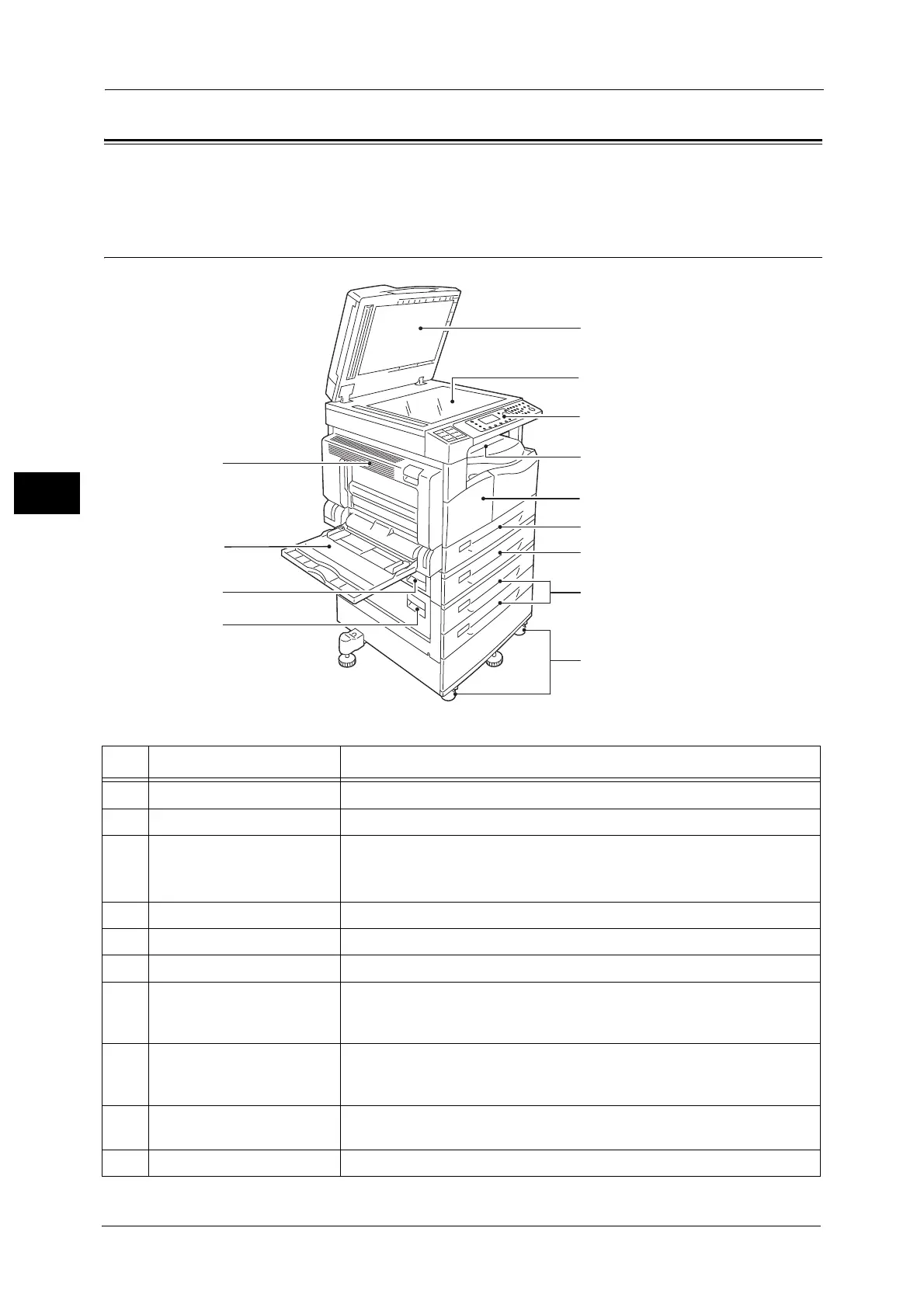

Machine Components
This section describes the machine components and their functions.
Front, Left Side
2
4
1
13
12
3
5
7
8
9
6
11
10
No. Component Description
1
Document cover
Holds document in place.
2 Document glass Place document here.
3 Control panel Contains the buttons, the LED indicators, and the display used for
operations.
For more information, refer to "Control Panel" (P.71).
4 Center tray Copies and prints are delivered here, facing down.
5 Front cover Open this cover to replace consumables.
6 Tray 1 (standard tray) Load paper here.
7Tray 2
(One Tray Module)
(Optional)
Optional tray. Load paper here.
8Trays 3, 4
(Two Tray Module)
(Optional)
Optional trays. Load paper here.
9 Locking casters Locks the wheels of the machine. Lock these casters after moving the
machine to its installation site.
10 Two tray module cover [C] Open this cover to remove any jammed paper from Tray 3 or 4.
